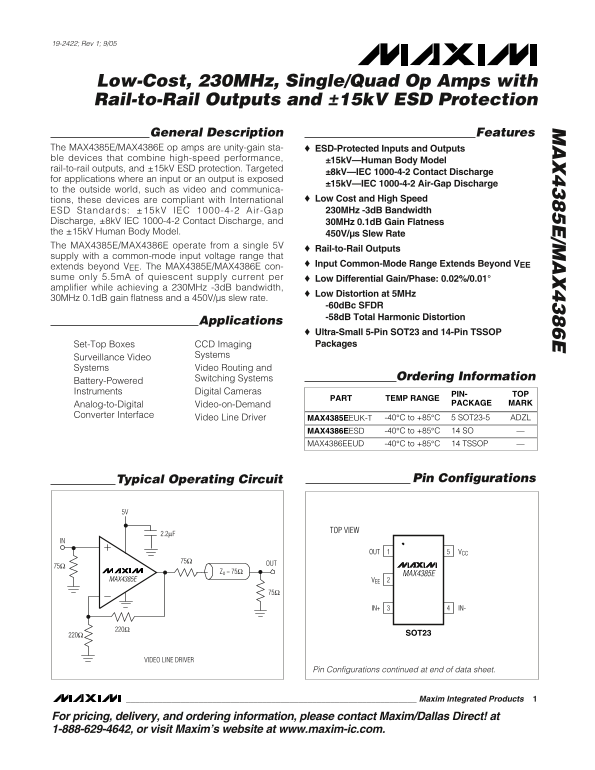

19-2422; Rev 1; 9/05
Low-Cost, 230MHz, Single/Quad Op Amps with Rail-to-Rail Outputs and ±15k V ESD Protection General Description Features The MAX4385E/MAX4386E op amps are unity-gain sta- ESD-Protected Inputs and Outputs ble devices that combine high-speed performance,
±15k V—Human Body Model
rail-to-rail outputs, and ±15k V ESD protection. Targeted
±8k V—IEC 1000-4-2 Contact Discharge
for applications where an input or an output is exposed
±15k V—IEC 1000-4-2 Air-Gap Discharge
to the outside world, such as video and communica-
tions, these devices are compliant with International Low Cost and High Speed ESD Standards: ±15k V IEC 1000-4-2 Air-Gap 230MHz -3d B Bandwidth
Discharge, ±8k V IEC 1000-4-2 Contact Discharge, and 30MHz 0.1d B Gain Flatness the ±15k V Human Body Model.
450V/µs Slew Rate
The MAX4385E/MAX4386E operate from a single 5V
Rail-to-Rail Outputs
supply with a common-mode input voltage range that
Input Common-Mode Range Extends Beyond VEE
extends beyond VEE. The MAX4385E/MAX4386E con- sume only 5.5m A of quiescent supply current per Low Differential Gain/Phase: 0.02%/0.01° amplifier while achieving a 230MHz -3d B bandwidth,
Low Distortion at 5MHz
30MHz 0.1d B gain flatness and a 450V/µs slew rate.
-60d Bc SFDR -58d B Total Harmonic Distortion
Applications
Ultra-Small 5-Pin SOT23 and 14-Pin TSSOP Set-Top Boxes CCD Imaging Packages
Systems
Surveillance Video Systems Video Routing and
Switching Systems Ordering Information
Battery-Powered
Instruments Digital Cameras
PART TEMP RANGE
Analog-to-Digital Video-on-Demand PACKAGE MARK
Converter Interface
Video Line Driver MAX4385EEUK-T -40°C to +85°C 5 SOT23-5 ADZL MAX4386EESD -40°C to +85°C 14 SO
MAX4386EEUD -40°C to +85°C 14 TSSOP
Typical Operating Circuit Pin Configurations
TOP VIEW
VCCOUT
Zo = 75Ω
MAX4385E
MAX4385E VEE
IN-IN+
220Ω SOT23
VIDEO LINE DRIVER
Pin Configurations continued at end of data sheet.
Maxim Integrated Products
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
