These low-power, quad RS-422 transmitters are robust digital data signal solutions designed for industry-standard communication backplanes. Featuring built-in hot-swap capability and ±15kV ESD protection, this family minimizes electromagnetic interference and ensures maximum system reliability during power cycles. Ideal for demanding applications including Telecom Backplanes, PLCs, and Motor Control systems, the device supports 3.3V operation and provides flexible data rates to meet critical industrial demands.

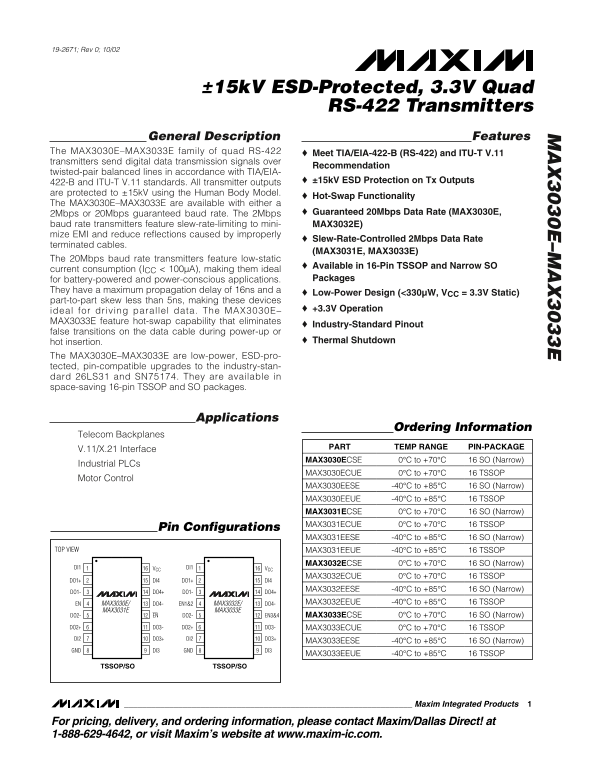

Page 1 Text Content
19-2671; Rev 0; 10/02
±15k V ESD-Protected, 3.3V Quad
RS-422 Transmitters
General Description Features
The MAX3030E–MAX3033E family of quad RS-422 Meet TIA/EIA-422-B (RS-422) and ITU-T V.11 transmitters send digital data transmission signals over
Recommendation
twisted-pair balanced lines in accordance with TIA/EIA-
422-B and ITU-T V.11 standards. All transmitter outputs ±15k V ESD Protection on Tx Outputs
are protected to ±15k V using the Human Body Model.
Hot-Swap Functionality
The MAX3030E–MAX3033E are available with either a
2Mbps or 20Mbps guaranteed baud rate. The 2Mbps Guaranteed 20Mbps Data Rate (MAX3030E,
baud rate transmitters feature slew-rate-limiting to mini- MAX3032E) mize EMI and reduce reflections caused by improperly
Slew-Rate-Controlled 2Mbps Data Rate
terminated cables.
(MAX3031E, MAX3033E)
The 20Mbps baud rate transmitters feature low-static
Available in 16-Pin TSSOP and Narrow SO
current consumption (ICC < 100µA), making them ideal
for battery-powered and power-conscious applications. Packages
They have a maximum propagation delay of 16ns and a
Low-Power Design (<330µW, VCC = 3.3V Static)
part-to-part skew less than 5ns, making these devices
ideal for driving parallel data. The MAX3030E– +3.3V Operation
MAX3033E feature hot-swap capability that eliminates
Industry-Standard Pinout
false transitions on the data cable during power-up or
hot insertion. Thermal Shutdown
The MAX3030E–MAX3033E are low-power, ESD-pro- tected, pin-compatible upgrades to the industry-stan- dard 26LS31 and SN75174. They are available in space-saving 16-pin TSSOP and SO packages.
Applications
Ordering Information
Telecom Backplanes
PART TEMP RANGE PIN-PACKAGE
V.11/X.21 Interface
MAX3030ECSE 0°C to +70°C 16 SO (Narrow)
Industrial PLCs
MAX3030ECUE 0°C to +70°C 16 TSSOP
Motor Control
MAX3030EESE -40°C to +85°C 16 SO (Narrow) MAX3030EEUE -40°C to +85°C 16 TSSOP MAX3031ECSE 0°C to +70°C 16 SO (Narrow) MAX3031ECUE 0°C to +70°C 16 TSSOP
Pin Configurations
MAX3031EESE -40°C to +85°C 16 SO (Narrow)
TOP VIEW MAX3031EEUE -40°C to +85°C 16 TSSOP
MAX3032ECSE 0°C to +70°C 16 SO (Narrow)
DI1 VCC DI1 VCC
MAX3032ECUE 0°C to +70°C 16 TSSOP
DO1+ DI4 DO1+ DI4
MAX3032EESE -40°C to +85°C 16 SO (Narrow)
DO1- DO4+ DO1- DO4+
EN MAX3030E/ DO4- EN1&2 MAX3032E/ DO4- MAX3032EEUE -40°C to +85°C 16 TSSOP
MAX3031E MAX3033E
DO2- EN DO2- EN3&4 MAX3033ECSE 0°C to +70°C 16 SO (Narrow) DO2+ DO3- DO2+ DO3- MAX3033ECUE 0°C to +70°C 16 TSSOP DI2 DO3+ DI2 DO3+
MAX3033EESE -40°C to +85°C 16 SO (Narrow)
GND DI3 GND DI3
MAX3033EEUE -40°C to +85°C 16 TSSOP
TSSOP/SO TSSOP/SO
Maxim Integrated Products
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
Page Summary Contents For MAXIM MAX3030E-MAX3033E ±15kV ESD-Protected, 3.3V Quad RS-422 Transmitters User Manual - Data Sheet
Manual Details
| Brand | QUAD |
|---|---|
| Pages | 14 |
| File Size | 326.23 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What kind of electrical protection is included on the outputs?
They feature ±15kV ESD Protection on Tx Outputs 422-B and ITU-T V.11 standards.
Are these transmitters reliable during power loss or cycling?
Yes, they offer hot-swap functionality that eliminates false transitions during power-up or hot insertion.
Are these devices suitable for battery-operated projects?
They are designed with low current consumption (I < 100µA) and a low-power design (<330µW).
What is the required operating voltage range?
The device generally operates at +3.3V, which is ideal for driving parallel data.
