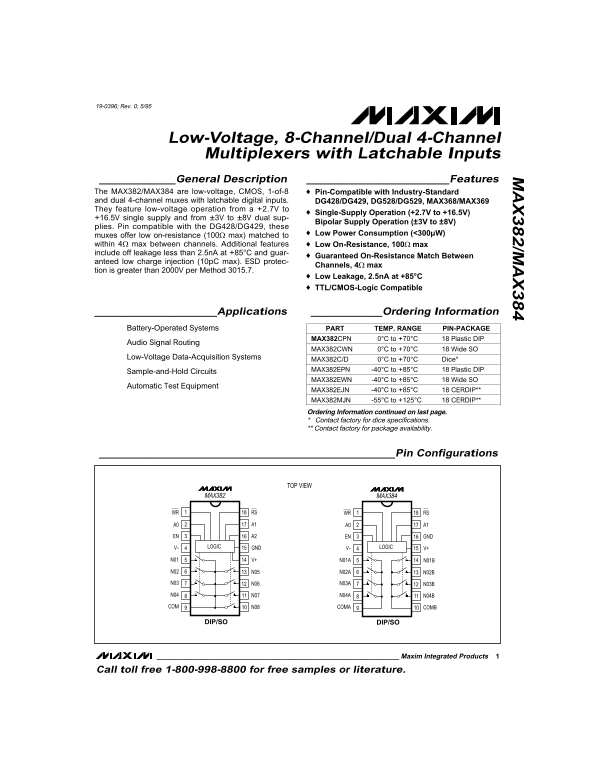

Low-Voltage, 8-Channel/Dual 4-Channel Multiplexers with Latchable Inputs
_______________General Description ____________________________Features The MAX382/MAX384 are low-voltage, CMOS, 1-of-8 Pin-Compatible with Industry-Standard and dual 4-channel muxes with latchable digital inputs. DG428/DG429, DG528/DG529, MAX368/MAX369 They feature low-voltage operation from a +2.7V to
Single-Supply Operation (+2.7V to +16.5V)
+16.5V single supply and from ±3V to ±8V dual sup-
Bipolar Supply Operation (±3V to ±8V)
plies. Pin compatible with the DG428/DG429, these
Low Power Consumption (<300µW)
muxes offer low on-resistance (100Ω max) matched to within 4Ω max between channels. Additional features Low On-Resistance, 100Ω max include off leakage less than 2.5n A at +85°C and guar-
Guaranteed On-Resistance Match Between
anteed low charge injection (10p C max). ESD protec-
Channels, 4Ω max
tion is greater than 2000V per Method 3015.7.
Low Leakage, 2.5n A at +85°C TTL/CMOS-Logic Compatible
________________________Applications ______________Ordering Information Battery-Operated Systems PART TEMP. RANGE PIN-PACKAGE
MAX382CPN 0°C to +70°C 18 Plastic DIP
Audio Signal Routing
MAX382CWN 0°C to +70°C 18 Wide SO
Low-Voltage Data-Acquisition Systems
MAX382C/D 0°C to +70°C Dice* MAX382EPN -40°C to +85°C 18 Plastic DIP
Sample-and-Hold Circuits
MAX382EWN -40°C to +85°C 18 Wide SO
Automatic Test Equipment
MAX382EJN -40°C to +85°C 18 CERDIP** MAX382MJN -55°C to +125°C 18 CERDIP** Ordering Information continued on last page. * Contact factory for dice specifications. ** Contact factory for package availability.
__________________________________________________________Pin Configurations
TOP VIEW
MAX382 MAX384
WR RS WR RS
EN A2 EN GND
LOGIC GNDV- LOGIC V+V-
N07N04 N04BN04A N08COM COMBCOMA
DIP/SO DIP/SO
Maxim Integrated Products
Call toll free 1-800-998-8800 for free samples or literature.
