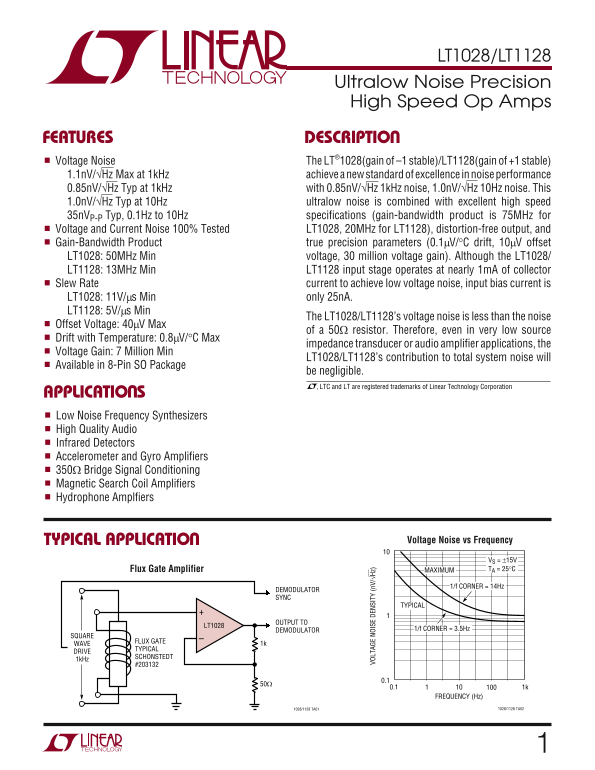

Page 1 Text Content
LT1028/LT1128
Ultralow Noise Precision High Speed Op Amps
FEATURES DESCRIPTIO Voltage Noise The LT®1028(gain of –1 stable)/LT1128(gain of +1 stable) 1.1n V/√Hz Max at 1k Hz achieve a new standard of excellence in noise performance 0.85n V/√Hz Typ at 1k Hz with 0.85n V/√Hz 1k Hz noise, 1.0n V/√Hz 10Hz noise. This 1.0n V/√Hz Typ at 10Hz ultralow noise is combined with excellent high speed 35n VP-P Typ, 0.1Hz to 10Hz specifications (gain-bandwidth product is 75MHz for
Voltage and Current Noise 100% Tested LT1028, 20MHz for LT1128), distortion-free output, and Gain-Bandwidth Product true precision parameters (0.1µV/°C drift, 10µV offset LT1028: 50MHz Min voltage, 30 million voltage gain). Although the LT1028/ LT1128: 13MHz Min LT1128 input stage operates at nearly 1m A of collector Slew Rate current to achieve low voltage noise, input bias current is LT1028: 11V/µs Min only 25n A.
LT1128: 5V/µs Min
The LT1028/LT1128’s voltage noise is less than the noise
Offset Voltage: 40µV Max
of a 50Ω resistor. Therefore, even in very low source
Drift with Temperature: 0.8µV/°C Max
impedance transducer or audio amplifier applications, the
Voltage Gain: 7 Million Min
LT1028/LT1128’s contribution to total system noise will
Available in 8-Pin SO Package
VO LT AG NO IS DE NS IT (n V/ √H z) be negligible.
, LTC and LT are registered trademarks of Linear Technology Corporation
APPLICATIO S Low Noise Frequency Synthesizers High Quality Audio Infrared Detectors Accelerometer and Gyro Amplifiers 350Ω Bridge Signal Conditioning Magnetic Search Coil Amplifiers Hydrophone Amplfiers
TYPICAL APPLICATIO Voltage Noise vs Frequency
VS = ±15V Flux Gate Amplifier MAXIMUM TA = 25°C
1/f CORNER = 14Hz
DEMODULATOR SYNC
TYPICAL
OUTPUT TO
LT1028
DEMODULATOR 1/f CORNER = 3.5Hz
SQUARE
FLUX GATE
WAVE 1k
TYPICAL
DRIVE
SCHONSTEDT
1k Hz
FREQUENCY (Hz)
1028/1128 TA01 1028/1128 TA02
