This datasheet describes the Linear Technology LTC1657 and LTC1657L complete single-supply 16-bit rail-to-rail voltage output digital-to-analog converters in a 28-lead SSOP or PDIP package. Each device integrates a rail-to-rail output buffer amplifier, an internal reference — 2.048V for LTC1657 (4.5V-5.5V supply) or 1.25V for LTC1657L (2.7V-5.5V supply) — and a double-buffered parallel digital interface supporting 16-bit or 2-byte transfers. The deglitched rail-to-rail output achieves just 8nV-s

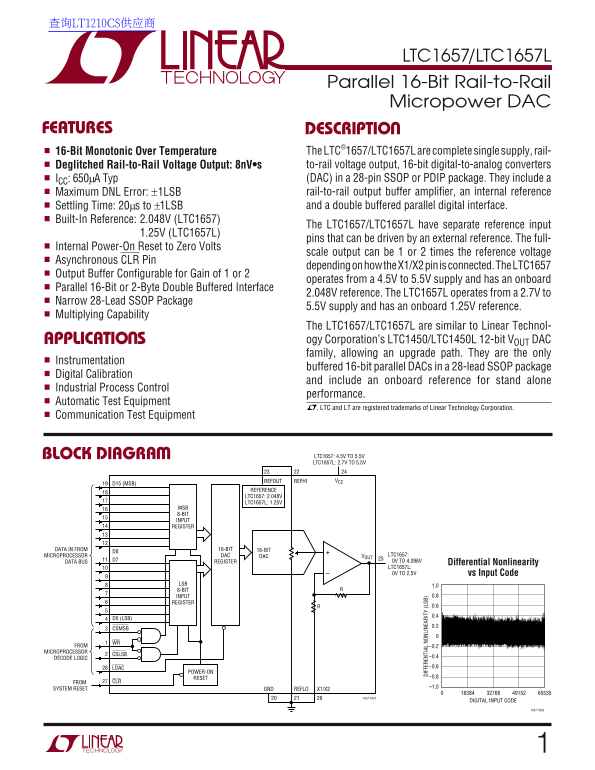

Page 1 Text Content
查询LT1210CS供应商
LTC1657/LTC1657L
Parallel 16-Bit Rail-to-Rail Micropower DAC
FEATURES DESCRIPTIO
16-Bit Monotonic Over Temperature The LTC®1657/LTC1657L are complete single supply, rail- Deglitched Rail-to-Rail Voltage Output: 8n V•s to-rail voltage output, 16-bit digital-to-analog converters ICC: 650µA Typ (DAC) in a 28-pin SSOP or PDIP package. They include a Maximum DNL Error: ±1LSB rail-to-rail output buffer amplifier, an internal reference Settling Time: 20µs to ±1LSB and a double buffered parallel digital interface.
Built-In Reference: 2.048V (LTC1657)
The LTC1657/LTC1657L have separate reference input
1.25V (LTC1657L)
pins that can be driven by an external reference. The full-
Internal Power-On Reset to Zero Volts
scale output can be 1 or 2 times the reference voltage
Asynchronous CLR Pin
depending on how the X1/X2 pin is connected. The LTC1657
Output Buffer Configurable for Gain of 1 or 2
operates from a 4.5V to 5.5V supply and has an onboard
Parallel 16-Bit or 2-Byte Double Buffered Interface
2.048V reference. The LTC1657L operates from a 2.7V to
Narrow 28-Lead SSOP Package
5.5V supply and has an onboard 1.25V reference.
Multiplying Capability
The LTC1657/LTC1657L are similar to Linear Technol- APPLICATIO S ogy Corporation’s LTC1450/LTC1450L 12-bit VOUT DAC family, allowing an upgrade path. They are the only
Instrumentation
buffered 16-bit parallel DACs in a 28-lead SSOP package
Digital Calibration
and include an onboard reference for stand alone
Industrial Process Control
performance.
Automatic Test Equipment
, LTC and LT are registered trademarks of Linear Technology Corporation.
Communication Test Equipment DI FF ER EN TI AL ON LI NE AR IT (L SB
BLOCK DIAGRA LTC1657: 4.5V TO 5.5V LTC1657L: 2.7V TO 5.5V
REFHIREFOUT VCCD15 (MSB)19
REFERENCE LTC1657: 2.048V LTC1657L: 1.25V
MSB 8-BIT INPUT REGISTER
DATA IN FROM 16-BIT 16-BIT
MICROPROCESSOR DAC DAC VOUT LTC1657:
DATA BUS D7 REGISTER 0V TO 4.096V
Differential Nonlinearity
LTC1657L: 0V TO 2.5V vs Input Code
LSB 1.0 8-BIT
INPUT 0.8
REGISTER
D0 (LSB)
CSMSB
FROM –0.2
MICROPROCESSOR
CSLSB
DECODE LOGIC –0.4
LDAC –0.6
POWER-ON
RESET –0.8
FROM CLR
SYSTEM RESET –1.0
REFLOGND X1/X2
1657 TA01
DIGITAL INPUT CODE
1657 TA02
Page Summary Contents For LINEAR LTC1657 Data Sheet LTC1657L Specifications Manual
Manual Details
| Brand | Linear |
|---|---|
| Pages | 16 |
| File Size | 200.14 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the resolution and monotonicity of the LTC1657/LTC1657L?
They feature 16 Bits of resolution and are monotonic.
How do I configure the supply voltage for LTC1657 versus LTC1657L?
The LTC1657 operates from 4.5V to 5.5V, while the LTC1657L operates from a narrower 2.7V to 5.5V.
Can this DAC be used for high output voltages?
Yes, the output can be amplified by an op amp (like LT1218) for an extended range up to 32.768V.
What is the key difference regarding reference voltage?
The LTC1657 has a built-in 2.048V reference, while the LTC1657L offers separate pins for using an external reference at 1.25V.
