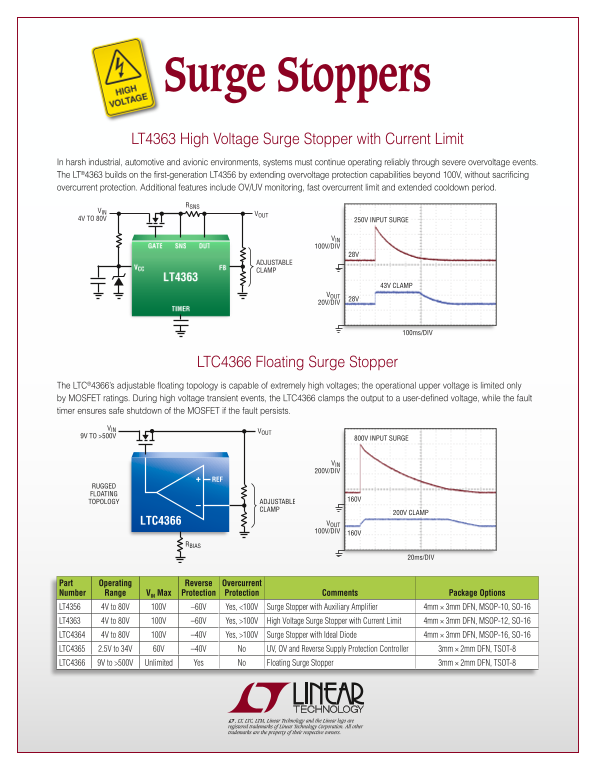

Surge Stoppers LT4363 High Voltage Surge Stopper with Current Limit
In harsh industrial, automotive and avionic environments, systems must continue operating reliably through severe overvoltage events. The LT®4363 builds on the first-generation LT4356 by extending overvoltage protection capabilities beyond 100V, without sacrificing overcurrent protection. Additional features include OV/UV monitoring, fast overcurrent limit and extended cooldown period.
4V TO 80V 250V INPUT SURGE
GATE OUTSNS 100V/DIV
ADJUSTABLE
VCC FB
CLAMP
LT4363
43V CLAMP
VOUT 28V 20V/DIV
TIMER
100ms/DIV
LTC4366 Floating Surge Stopper
The LTC®4366’s adjustable floating topology is capable of extremely high voltages; the operational upper voltage is limited only by MOSFET ratings. During high voltage transient events, the LTC4366 clamps the output to a user-defined voltage, while the fault timer ensures safe shutdown of the MOSFET if the fault persists.
9V TO >500V
800V INPUT SURGE
VIN 200V/DIV
RUGGED FLOATING
TOPOLOGY ADJUSTABLE CLAMP
200V CLAMP
LTC4366 VOUT
100V/DIV
RBIAS
20ms/DIV
Part Operating Reverse Overcurrent Number Range VIN Max Protection Protection Comments Package Options LT4356 4V to 80V 100V –60V Yes, <100V Surge Stopper with Auxiliary Amplifier 4mm × 3mm DFN, MSOP-10, SO-16 LT4363 4V to 80V 100V –60V Yes, >100V High Voltage Surge Stopper with Current Limit 4mm × 3mm DFN, MSOP-12, SO-16 LTC4364 4V to 80V 100V –40V Yes, >100V Surge Stopper with Ideal Diode 4mm × 3mm DFN, MSOP-16, SO-16 LTC4365 2.5V to 34V 60V –40V No UV, OV and Reverse Supply Protection Controller 3mm × 2mm DFN, TSOT-8 LTC4366 9V to >500V Unlimited Yes No Floating Surge Stopper 3mm × 2mm DFN, TSOT-8
