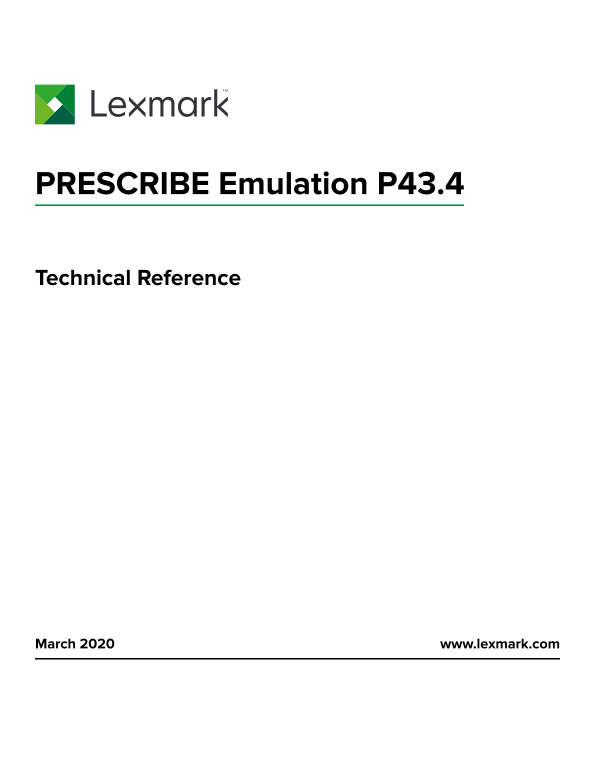

Lexmark CS421 PRESCRIBE Emulation P43.4 Technical Reference
Summary
The PRESCRIBE Emulation option provides extended firmware capability for Lexmark laser printers, enabling reliable print processing using specialized PRESCRIBE printer languages. This technical manual is designed for system integrators and enterprise users who require advanced print language compatibility in large corporate settings. It details installation procedures, comprehensive command support, font simulation guidelines (including Memorex compatibility), and provides necessary information regarding firmware limitations essential for accurate certification testing.
Page 1 Text Content
PRESCRIBE Emulation P43.4
Technical Reference
March 2020 www.lexmark.com
Page Summary Contents For Lexmark CS421 PRESCRIBE Emulation P43.4 Technical Reference
Page 1
PRESCRIBE Emulation P43.4 Technical Reference March 2020 www.lexmark.com
Page 2
Contents Contents Overview........................................................................................................ Supported printer models................................................
Page 3
Overview Overview The PRESCRIBE emulation option for Lexmark laser printers is an extended version of the firmware that includes a PRESCRIBE language processor. It enables the printer to replace print...
Page 4
Overview Flash memory and hard disk support PRESCRIBE downloaded fonts (LDFC) and PRESCRIBE macros can be stored on either the flash memory or the printer hard disk. Programming is done using the Reso...
Page 5
Overview UEL1 @PJL ENTER LANGUAGE = PCL5 ESC E2 (O&3 .......4 EXIT;5 UEL6 1 Universal Exit Language: ESC%-12345X 2 PCL reset command 3 Memorex entry sequence 4 PRESCRIBE commands 5 Memorex exit se...
Page 6
Overview Certification test process The PRESCRIBE emulation option must be thoroughly tested with the customer's applications to determine if it is usable before a customer makes a significant investm...
Page 7
PRESCRIBE commands PRESCRIBE commands Command support for P43 The following table is a list of PRESCRIBE language commands. It includes base‑level PRESCRIBE, level II extensions, and a few custom undo...
Page 8
PRESCRIBE commands Command Description Supported DRPA Draw to Relative Position specified by Angle Yes DUPX select or deselect DUPle X mode Yes DXPG select Duple X Pa Ge side Yes DZP Draw to Zero-rela...
Page 9
PRESCRIBE commands Command Description Supported PAT select fill PATtern Yes PCRP2 in Path, Curve to Relative Position No PCZP2 in Path, Curve to Zero-relative Position No PDIR2 set Print DIRection Ye...
Page 10
PRESCRIBE commands Command Description Supported SFA1 Set bitmap Font Attributes Yes SFNT2 Select current Fo NT by typeface Yes SIMG1, 2 Set IMa Ge model Yes SLJN2 Set Line Joi N Yes SLM Set Left Marg...
Page 11
PRESCRIBE commands For more information on PRESCRIBE see the following: Kyocera PRESCRIBE Commands COMMAND REFERENCE, version 4.8 Kyocera PRESCRIBE Commands TECHNICAL REFERENCE, version 4.8 Command ex...
Page 12
PRESCRIBE commands Bar code type Number Supported Code 11 with only “c” checksum (USD-8) No Code 11 with both “c” and “k” checksums (USD-8) No Code 93 with both “c” and “k” checksums (USD-7) No CODABA...
Page 13
PRESCRIBE commands FRPO: Firmware Re Pr Ogram Kyocera printers support a large set of permanent defaults that can be set using the FRPO command. The PRESCRIBE emulation option supports a subset of the...
Page 14
PRESCRIBE commands The odd‑numbered parameters (A1, A3, A5, and A7) specify a whole‑inch value. The even‑numbered parameters (A2, A4, A6, and A8) specify a fraction in 100ths of an inch. Page Length a...
Page 15
PRESCRIBE commands Even though the L parameter values are programmed according to letter-size paper, the edge limits are applied in the same manner regardless of the actual paper size. The following f...
Page 16
PRESCRIBE commands Setting PCL IBM Pro Printer Line Printer Top and Bottom Margins 1/2 inch Set to edge limits Set to edge limits Default Font Font Mode CR on FF PCL setting Yes Yes Character Wrap at ...
Page 17
PRESCRIBE commands LA: Character centering This setting emulates certain Kyocera machines that center characters within the spacing. The factory default value is 1 (centering enabled). To disable char...
Page 18
PRESCRIBE commands FRPO LE parameter Paper source Tray 2 Tray 3 Multipurpose tray Tray 4 Tray 5 LF/LG: X and Y offsets for LE source These settings specify the X and Y offsets for shifting pages print...
Page 19
PRESCRIBE commands Pro Printer and Line Printer environments are supported, but native Pro Printer commands are not supported. SEM 0 = Line Printer SEM 1 = IBM Pro Printer X-24E SEM 2 = Diablo 630 SEM...
Page 20
Fonts Fonts Bitmap font simulation The following table lists the Kyocera resident bitmap fonts, and the PRESCRIBE emulation best-fit fonts which are used from the standard set of PCL resident scalable...
Page 21
Fonts Resident bitmap font substitution table Font # Font # Height Pitch Kyocera font name Best‑fit font name Port. Land. (points) (cpi) Prestige Elite BM7.2-Bold Italic Courier Bold Italic (scalable)...
Page 22
Notices Notices Edition notice March 2020 The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLIC...
Page 23
Notices Post Script is a registered trademark of Adobe Systems Incorporated in the United States and/or other countries. All other trademarks are the property of their respective owners.
Page 24
Index Index supported printer models 3 BARC command 11 bitmap font simulation 20 CASS command 12 certification test process 6 commands BARC 11 FRPO 13 support for P43 7 firmware reprogram 13 flash mem...
