This pluggable Safety Module (SM 100) delivers critical Safe Torque Off (STO) functionality, seamlessly integrated with Lenze servo inverters for industrial automation. Engineered to provide dependable safe stop operation in machinery, it complies with the highest safety requirements up to PL e and SIL 3. The accompanying documentation confirms adherence to major European and international standards, including EN ISO 13849-1 and IEC 62061. It is essential for engineers designing advanced industrial systems that mandate certified fail-safe performance and regulatory compliance.
Page 1 Text Content
/2 2. , T nd re eg is te re tr ad em ar ks . U til is at io an ap pl ic at io re qu ire pr io ap pr ov al

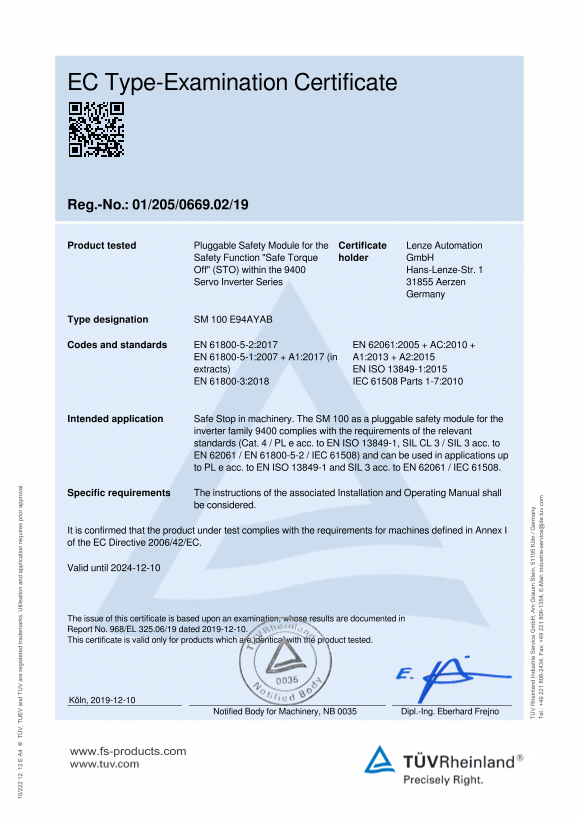

EC Type-Examination Certificate
Reg.-No.: 01/205/0669.02/19
Product tested Pluggable Safety Module for the Certificate Lenze Automation
Safety Function "Safe Torque holder Gmb H Off" (STO) within the 9400 Hans-Lenze-Str. 1 Servo Inverter Series 31855 Aerzen
Germany
Type designation SM 100 E94AYAB
Codes and standards EN 61800-5-2:2017 EN 62061:2005 + AC:2010 +
EN 61800-5-1:2007 + A1:2017 (in A1:2013 + A2:2015 extracts) EN ISO 13849-1:2015 EN 61800-3:2018 IEC 61508 Parts 1-7:2010
Intended application Safe Stop in machinery. The SM 100 as a pluggable safety module for the
inverter family 9400 complies with the requirements of the relevant standards (Cat. 4 / PL e acc. to EN ISO 13849-1, SIL CL 3 / SIL 3 acc. to EN 62061 / EN 61800-5-2 / IEC 61508) and can be used in applications up to PL e acc. to EN ISO 13849-1 and SIL 3 acc. to EN 62061 / IEC 61508.
Specific requirements The instructions of the associated Installation and Operating Manual shall
be considered.
It is confirmed that the product under test complies with the requirements for machines defined in Annex I he in la nd In du st rie er vi ce b H , A ra ue te in , 5 öl / G er an
el -2 4, ax : + -1 4, -M ai l: in du st rie -s er vi ce de .tu v. co
of the EC Directive 2006/42/EC.
Valid until 2024-12-10
The issue of this certificate is based upon an examination, whose results are documented in Report No. 968/EL 325.06/19 dated 2019-12-10. This certificate is valid only for products which are identical with the product tested.
Köln, 2019-12-10
Notified Body for Machinery, NB 0035 Dipl.-Ing. Eberhard Frejno
www.fs-products.com
Powered by TCPDF (www.tcpdf.org)
Page Summary Contents For Lenze Inverters - Servo inverters: 9400, Servo inverters 9400, HighLine servo inverters
Manual Details
| Brand | Lenze |
|---|---|
| Pages | 1 |
| File Size | 600.54 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the intended application of the SM 100 module?
Safe Stop in machinery.
What Safety Integrity Level (SIL) does this product comply with for EN 62061/IEC 61508?
It complies up to SIL 3.
Does the certificate apply to all SM 100 units?
No, it is valid only for products identical to the one tested.
What compliance level does the product achieve according to EN ISO 13849-1?
It complies up to PL e.
