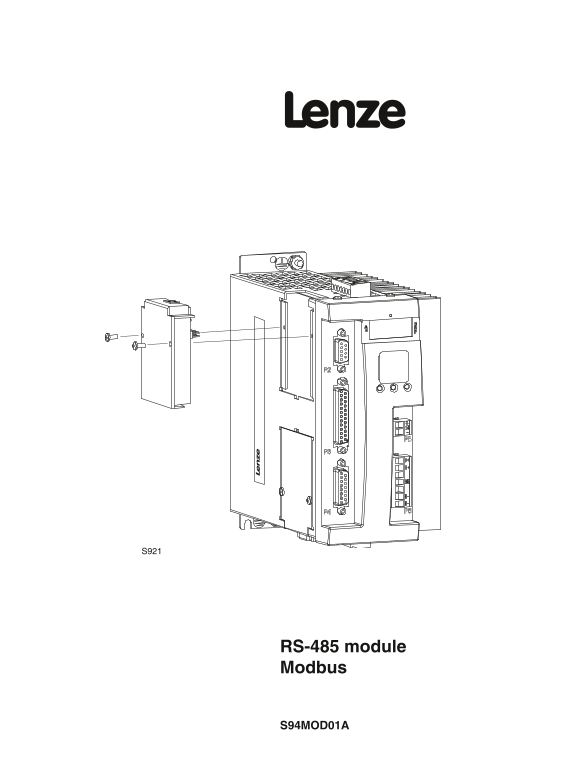

RS-485 module Modbus
S94MOD01A
Page Summary Contents For Lenze Inverters - Servo inverters 94 SimpleServo servo inverters 94 SimpleServo 100 servo inverters Operation Manual Operating Instructions S94MOD01A RS-485 module Modbus (DE, EN languages)
Page 1
RS-485 module Modbus S94MOD01A
Page 2
Table of Contents 1 Preface and General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....
Page 3
Preface & General Info 1 Preface and General Information 1.1 How to use these Operating Instructions • These Operating Instructions are intended for safety-relevent opertion on and with the module...
Page 4
Safety Info 2 Safety Information 2.1 Persons responsible for safety Operator • An operator is any natural or legal person who uses the drive system or on behalf of whom the drive system is used. • The...
Page 5
Technical Data 3 Technical data 3.1 Related documents • MODBUS Application Protocol Specification V1.1 It can be found at: http://www.modbus.org/default.htm • MODBUS over Serial Line Specification &am...
Page 6
Technical Data 3.3 Configuration Drive 94 supports Modbus communication protocol through its RS485 optional card. The following Communication parameters are available: RS485 configuration – If the val...
Page 7
Parameter Setting 4 Parameter setting 4.1 Register Memory 4.1.1 Read Only or Input Registers The following read only Mod Bus registers (drive variables) accessible only through the Mod Bus function • ...
Page 8
Parameter Setting Mod Bus Register Type Controller Variable Description 16 bit address 32 bit float Velocity Analog Input See Drive 94 manual W: EPROM & memory. Low word starts first 16 bit word A...
Page 9
Parameter Setting Mod Bus Register Type Controller Variable Description 16 bit address 32 bit float Se Max Err Time See Drive 94 manual W: EPROM & memory. Low word starts first 16 bit word Analog ...
Page 10
Parameter Setting Mod Bus Register Type Controller Variable Description 16 bit address 16 bit word In Bounce Delay for input 2 See Drive 94 manual W: EPROM & memory. 16 bit word Out Func for outpu...
Page 11
