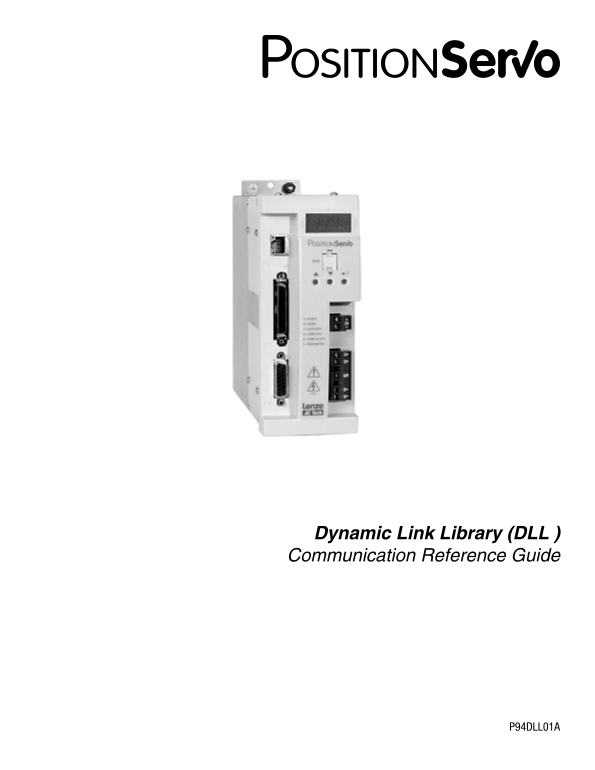

Dynamic Link Library (DLL ) Communication Reference Guide

P94DLL01A

Page Summary Contents For Lenze Inverters - Servo inverters, PositionServo, servo inverters Software Documentation, Communication Manual, P94DLL01A (Position Servo Dynamic Link Library, languages: DE, EN)

Page 1 Dynamic Link Library (DLL ) Communication Reference Guide P94DLL01A
Page 2 About These Instructions This documentation applies to the implementation of DLL with the Position Servo drive and should be used in conjunction with the Position Servo User Manual (S94P01) that shipp...
Page 3 Table of Contents 1. Safety Information ............................................................................ 1.1 Warnings, Cautions & Notes ...................................................
Page 4 1. Safety Information 1.1 Warnings, Cautions & Notes General Some parts of Lenze controllers (frequency inverters, servo inverters, DC controllers) can be live, with the potential to cause attache...
Page 5 Operation Systems including controllers must be equipped with additional monitoring and protection devices accord- ing to the corresponding standards (e.g. technical equipment, regulations for prevent...
Page 6 . Position Servo DLL Overview This reference guide assumes that the reader has a working knowledge of DLL protocol and familiarity with the programming and operation of motion control equipment. This ...
Page 7 4 Communication Flowchart The flowchart in Figure 1 provides the instructions of how to use DLL functions for communication over Ethernet or serial communications ports. Begin Ethernet Ethernet or Ser...
Page 8 5 DLL Functions Overview Every aspect of the Position Servo drive can be manipulated by writing or reading the variable(s) inside the drive. All variables are addressable by their respective index num...
Page 9 8 DLL Functions All functions in the DLL library are described in detail in paragraphs 8.1 “Connection Services Functions” and 8. “Data Manipulation Functions”. 8.1 Connection Services Functions Ther...
Page 10 long SS940_Close Interface ( SHANDLE handle ) Purpose: To close the communication interface to device with the specific handle. Inputs: handle to the previously opened interface by the function SS940_...
Page 11 long SS940_Get Param As Double ( SHANDLE h, int pid, double& param ) Purpose: To read a RAM (run time) variable as a DOUBLE type with index specified by pid and return it in argument parameter. In...
Page 12 long SS940_Set Param As Double ( SHANDLE h, int pid, double param ) Purpose: To write the RAM (run time) variable as a DOUBLE type with index specified by pid and return it in argument parameter. Inpu...
Page 13 long SS940_Set Array As Double ( SHANDLE h, long* pids, double* params, int count ) Purpose: To write the RAM (run time) array of variables (up to 10 variables) as a DOUBLE type with in- dexes specifi...
Page 14 AC Technology Corporation www.actech.com 60 Douglas Street Uxbridge, MA 01569 Telephone: (508) 78-9100 Facsimile: (508) 78-787 P94DLL01A
