Lenze Inverters-Servo Inverters 9400 HighLine Servo Inverters Certificate Safety Engineering UK Type-Examination 9400_Safety Module SM301_E94AYAE
Summary
The SM 301 is a pluggable Safety Module designed for the Lenze SE converter family, ensuring critical functional safety in industrial machinery applications. This certification confirms compliance with rigorous UK regulations and global standards (including EN ISO 13849-1 and IEC 61508), guaranteeing high reliability up to Performance Level e (PL e) or Safety Integrity Level 3 (SIL 3). It is essential for automation engineers and industrial facilities seeking legally certified and highly reliable safety interlocks for their electrotechnical systems.
Page 1 Text Content
/2 2. , T nd re eg is te re tr ad em ar ks . U til is at io an ap pl ic at io re qu ire pr io ap pr ov al

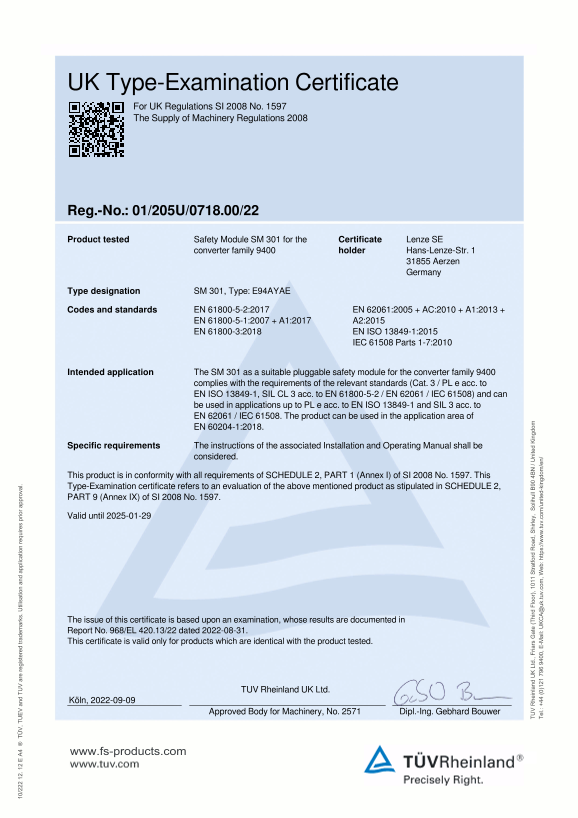

UK Type-Examination Certificate For UK Regulations SI 2008 No. 1597
The Supply of Machinery Regulations 2008
Reg.-No.: 01/205U/0718.00/22 Product tested Safety Module SM 301 for the Certificate Lenze SE
converter family 9400 holder Hans-Lenze-Str. 1
31855 Aerzen Germany
Type designation SM 301, Type: E94AYAE
Codes and standards EN 61800-5-2:2017 EN 62061:2005 + AC:2010 + A1:2013 +
EN 61800-5-1:2007 + A1:2017 A2:2015 EN 61800-3:2018 EN ISO 13849-1:2015
IEC 61508 Parts 1-7:2010
Intended application The SM 301 as a suitable pluggable safety module for the converter family 9400
complies with the requirements of the relevant standards (Cat. 3 / PL e acc. to EN ISO 13849-1, SIL CL 3 acc. to EN 61800-5-2 / EN 62061 / IEC 61508) and can be used in applications up to PL e acc. to EN ISO 13849-1 and SIL 3 acc. to EN 62061 / IEC 61508. The product can be used in the application area of EN 60204-1:2018.
Specific requirements The instructions of the associated Installation and Operating Manual shall be
considered.
This product is in conformity with all requirements of SCHEDULE 2, PART 1 (Annex I) of SI 2008 No. 1597. This Type-Examination certificate refers to an evaluation of the above mentioned product as stipulated in SCHEDULE 2, PART 9 (Annex IX) of SI 2008 No. 1597.
Valid until 2025-01-29
he in la nd td ria rs at (T hi rd lo or tr at fo rd oa d, hi rle y, ol ih ul l B ni te in gd om el 0) , E -M ai l: uk .tu v. co , W eb : h ttp s: //w .tu v. co /u ni te d- ki ng do /e n/
The issue of this certificate is based upon an examination, whose results are documented in Report No. 968/EL 420.13/22 dated 2022-08-31. This certificate is valid only for products which are identical with the product tested.
TUV Rheinland UK Ltd.
Köln, 2022-09-09
Approved Body for Machinery, No. 2571 Dipl.-Ing. Gebhard Bouwer
www.fs-products.com
Powered by TCPDF (www.tcpdf.org)
Page Summary Contents For Lenze Inverters-Servo Inverters 9400 HighLine Servo Inverters Certificate Safety Engineering UK Type-Examination 9400_Safety Module SM301_E94AYAE
Manual Details
| Brand | Lenze |
|---|---|
| Pages | 1 |
| File Size | 467.67 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What safety levels does the SM 301 module comply with?
It complies with PL e acc. to EN ISO 13849-1, and SIL 3 acc. to EN 62061 / IEC 61508.
Are there specific guidelines for installation or usage?
Yes, the instructions of the associated Installation and Operating Manual must be considered.
What are the application limits when using this module?
It can be used in applications up to EN 60204-1:2018.
Is this certificate valid for all 9400 converter families?
No, the certificate is only valid for products that are identical with the specific SM 301 safety module tested.
