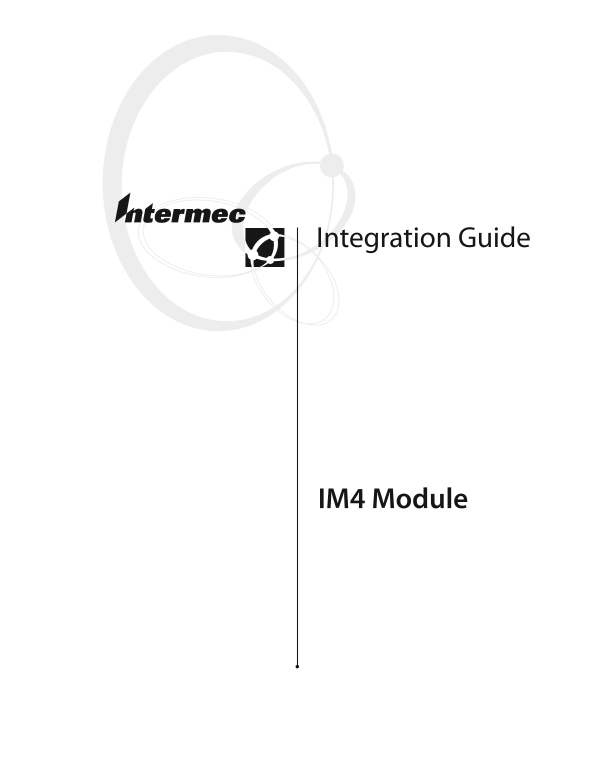

Page 1
Integration Guide IM4 Module
Page 2
Intermec Technologies Corporation Corporate Headquarters 6001 36th Ave. W. Everett, WA 98203 U.S.A. www.intermec.com The information contained herein is proprietary and is provided solely for the purp...
Page 3
Contents Contents Before You Begin..................................................................................................................v Safety Summary.......................................
Page 4
Contents iv IM4 Module Integration Guide
Page 5
Before You Begin Before You Begin This section provides you with safety information, technical support information, and sources for additional product information. Safety Summary Your safety is extrem...
Page 6
Before You Begin Safety Icons This section explains how to identify and understand warnings, cautions, and notes that are in this document. You may also see icons that tell you when to follow ESD proc...
Page 7
Before You Begin Telephone Support These services are available from Intermec Technologies Corporation. In the U.S.A. and Canada call 1-800-755-5505 Service Description and choose this option Factory ...
Page 8
Before You Begin Patent Information There may be U.S. and foreign patents pending. viii IM4 Module Integration Guide
Page 9
About the IM4 About the IM4 The Intermec Intellitag™ IM4 module is designed to let you easily incorporate the reading and writing of RFID tags into your computers, printers, and other mobile devices. ...
Page 10
Configuring the IM4 as a PC Card Module (Default) Configuring the IM4 as a PC Card Module (Default) In PC Card mode, the IM4 interface looks like a standard 16C550 UART. It appears as a serial port an...
Page 11
Configuring the IM4 as a PC Card Module (Default) PC Card Module Pinouts Pin No. Pin Name Definition Pin No. Pin Name Definition 1 GND Ground Vss 35 GND Ground Vss 2 D3 Data bit 3 36 CD1# Card detect ...
Page 12
Configuring the IM4 as a Serial Module Configuring the IM4 as a Serial Module In Serial mode, the IM4 interface provides two 16C850 UART channels, an SPI channel, eight auxiliary inputs, and eight aux...
Page 13
Configuring the IM4 as a Serial Module Serial Module Pinouts Pin No. Pin Name Definition Pin No. Pin Name Definition 1 GND Ground Vss 35 GND Ground Vss 2 SPI_SCLK1 SPI clock out of IM4 36 CD1# Card de...
Page 14
How the IM4 Operates How the IM4 Operates Overtemperature Mode Standard Mode IM4 is in Sleep mode Did Application checks reason the IM4 receive a request for a tag No for failed status and returns ove...
Page 15
Power Requirements In the IM4, heat is transferred to the back side (non-label side) of its case. Any heat transfer mechanism (such as moving air, a metal heatsink, a heat pipe, etc.) that is applied ...
Page 16
Antenna Requirements IM4—Intermec-Approved 915 MHz RFID Antennas Intermec Cable Part Number Description Loss Dimensions 805-591-001 Patch, Circular-Polarized, N/A 19.3 cm x 19.3 cm x 2.5 cm 2.0 d Bi, ...
Page 17
Specifications Specifications General Specifications Physical description PCMCIA Type II card Weight 34.0 ±2.8 g (1.2 oz ±0.2 oz) Temperature Operating: -20°C to 55°C (-4°F to 131°F) Storage: -40°C to...
Page 18
Specifications Transmitter Specifications Power output Minimum: 588 m W (at the antenna connector— Typical: 800 m W assume 0.3 d B of cable loss) Maximum: 1000 m W Frequency stability Minimum: -30 PPM...
