Ideal Industries Inc. Technical Manual Models 61-763 61-765 Owner's Manual - Specifications and User Guide

Summary

A comprehensive service technical manual designed for qualified technicians servicing measurement equipment models 61-763 and 61-765. This essential guide provides detailed, step-by-step instructions covering preventative maintenance, including battery replacement, full calibration procedures, performance verification, and adherence to critical safety protocols. Ideal for professional electronics repair personnel who require accurate technical support for reliable operation.

📄 Preview ‹ PAGE OF 11 ›

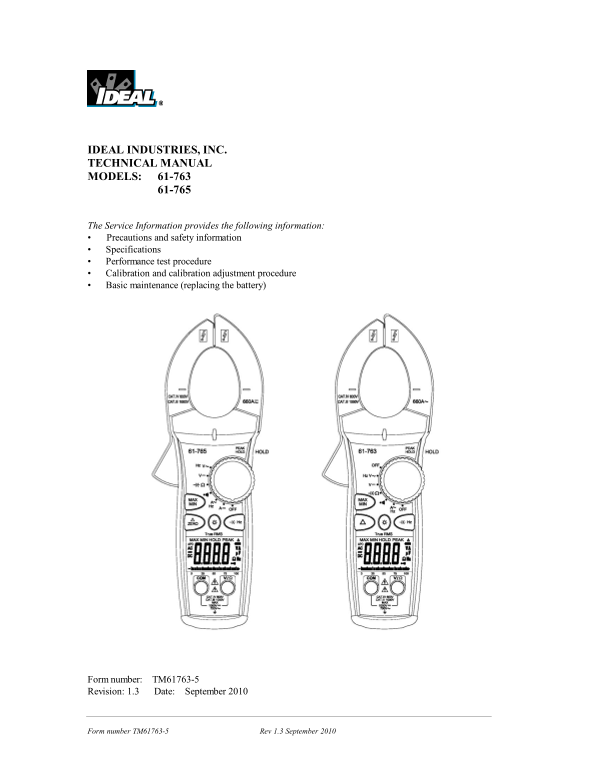

‹ Ideal Industries Inc. Technical Manual Models 61-763 61-765 Owner's Manual - Specifications and User Guide - Page 1 ›

Page 1 Text Content

IDEAL INDUSTRIES, INC. TECHNICAL MANUAL MODELS: 61-763

The Service Information provides the following information: • Precautions and safety information • Specifications • Performance test procedure • Calibration and calibration adjustment procedure • Basic maintenance (replacing the battery)

Form number: TM61763-5 Revision: 1.3 Date: September 2010

Form number TM61763-5 Rev 1.3 September 2010

Page Summary Contents For Ideal Industries Inc. Technical Manual Models 61-763 61-765 Owner's Manual - Specifications and User Guide

Page 1 IDEAL INDUSTRIES, INC. TECHNICAL MANUAL MODELS: 61-763 The Service Information provides the following information: • Precautions and safety information • Specifications • Performance test procedure • ...
Page 2 TABLE OF CONTENTS Title Page Introduction 1 Precautions and Safety Information 1 Symbol Table 1 Tight Sight™ Display Notes 1 High Voltage Warning (HI-V) 2 Safety Information 2 Certifications and Compl...
Page 3 Introduction Warning To avoid shock or injury, do not perform the verification tests or calibration procedures described in this manual unless you are qualified to do so. The information provided in t...
Page 4 High Voltage Warning (HI-V): The meter beeps and lights an LED when >30V AC on ACVoltage function or >30V DC on DC voltage function is present. This enhanced safety feature alerts the user when ...
Page 5 Certifications and Compliances Designed to UL 61010-1 second edition, IEC 61010-2-032 second Safety edition,IEC61010-031 specifications 1000V DC Category III 600V DC Category IV Input rating 750V AC C...
Page 6 61-763 Function / Ranges Accuracy Range AC Voltage 0.0V ~ 600.0V, 45Hz - 100Hz 1.0% + 5 digits (True RMS) 600.0V ~ 750.0V, 45Hz - 100Hz 1.5% + 5 digits (45-400Hz) 0.0V ~ 750.0V, 100Hz - 400Hz 6.0% + 5...
Page 7 Frequency Overload protection: 1000AAC, 1000VDC or 750VAC rm PERFORMANCE VERIFICATIONS Perform the following analysis; if the meter conforms to the limits listed in Table 1 through 7 the meter is func...
Page 8 Table 6 Capacitance and Frequency Test Low High Function /Range Input Model Number Limit Limit Hz 50Hz @ 5A 49.70 50.30 61-763, 61-765 {through clamp} Hz {auto} 200Hz @ 10A 198.5 201.5 61-763, 61-765 ...
Page 9 CALIBRATION Calibration Preparation 1. Turn on the calibrator, allow calibrator to warm up. Perform calibration at 23±2°C (73.4°F ±3.5°F) at relative humidity of < 70%. Temperature stabilization sh...
Page 10 Resistance Calibration 1. Set the function switch to range. Short the V and COM inputs on the meter. After a reading in the LCD is settled (about 5 seconds), press MAX/MIN button until unit display re...
Page 11 Battery Replacement (Refer to Figure 1) 1. Disconnect the test leads from any circuit under test and turn off meter. 2. Use a Philips head screwdriver to remove the screws on battery cover. 3. Remove ...
