Instruction Manual
HI 2222
p H/m V/ºC Bench Meter with Calibration Check
www.hannainst .com
Page Summary Contents For Hanna HI 2222 pH mV °C Bench Meter with Calibration Check Instruction Manual
Page 1

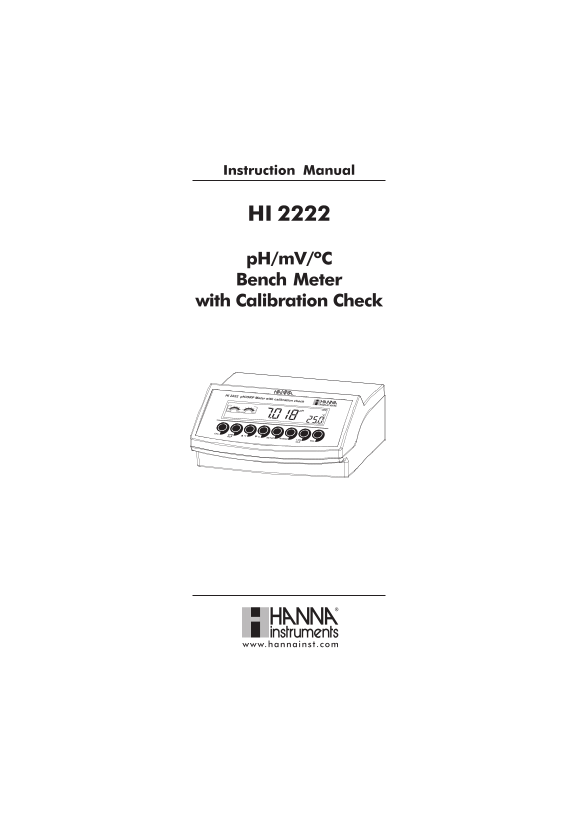

Instruction Manual HI 2222 p H/m V/ºC Bench Meter with Calibration Check www.hannainst .com
Page 2
Dear Customer, Thank you for choosing a Hanna Instruments product. Please read this instruction manual carefully before using this instrument. This manual will provide you with the necessary informati...
Page 3
PRELIMINARY EXAMINATION Remove the instrument from the packing material and examine it carefully to make sure that no damage has occurred during shipping. If there is any damage, notify your Dealer or...
Page 4
FUNCTIONAL DESCRIPT ION Front Panel Rear Panel 1) Liquid Crystal Display (LCD). 2) CAL key, to enter and exit calibration mode. 3) CFM/GLP key, to confirm calibration, different values or to display G...
Page 5
HI SPECIF ICATIONS Hp00.61ot00.2– Vm9.996± egna R Vm0002± C°0.021ot0.02– Hp10.0 )Vm9.996±(Vm1.0 noitulose R )Vm0002±(Vm1 C°1.0 Hp10.0± ycarucc A )Vm9.996±(Vm2.0± F°86/C°02@ )Vm0002±(Vm1± C°2.0± rorree...
Page 6
OPERATIONAL GUIDE POWER CONNECTION Plug the 12 VDC adapter into the power supply socket. Notes: These instruments use non volatile memory to retain the p H, m V, temperature calibrations and all other...
Page 7
p H MEASUREMENT Make sure the instrument has been calibrated before taking p H measurements. Submerse the tip of a properly conditioned electrode (see page 31) and the temperature 3 cm probe approxima...
Page 8
ORP MEASUREMENTS An optional ORP electrode must be used to perform ORP measurements (see Accessories). Oxidation-Reduction Potential (REDOX) measurements provide the quantification of the oxidizing or...
Page 9
p H CALIBRATION Calibrate the instrument frequently, especially if high accuracy is required. For best results and constant display of electrode condition and electrode response on the bar graph gauge...
Page 10
TWO-POINT CALIBRATION For most applications it is recommended that p H 7.01 or 6.86 buffers be used as the first calibration point and p H 3.00 (for acidic samples) or p H 9.18/10.01 (for alkaline sam...
Page 11
When the reading is stable and close to the selected buffer, the “CFM” tag will blink and if enabled, an audible signal will sound. Press the CFM key to confirm the calibration. The calibrated value w...
Page 12
ONE-POINT CALIBRATION If the “Pnt” option is selected, the new calibration point overrides an existing one. The adjacent slopes will be reevaluated. If the “OFFS” option is selected, an electrode offs...
Page 13
ENHANCED CALIBRATION MESSAGES The stored calibration history to used issue error and warning messages during calibration to help ensure the highest accuracy. As electrode aging is normally a slow proc...
Page 14
BUFFER TEMPERATURE This message appears if the temperature of the buffer is outside the defined buffer temperature range. WARNING MESSAGES During calibration, the Calibration Check feature analyzes th...
Page 15
ELECTRODE CONDITION & ELECTRODE RESPONSE T IME When using an appropriate HANNA P Type BNC electrode with pin, HI 2222 will assess electrode condition and response time during each calibration, the...
Page 16
p H BUFFER TEMPERATURE The temperature has an effect on p H. The calibration buffer solutions are affected by temperature changes to a lesser degree than normal solutions. During calibration the instr...
Page 17
GOOD LABORATORY PRACTICE (GLP) GLP is a set of functions that allows the storage and retrieval of data regarding the maintenance and status of the electrode. All data regarding the last calibration is...
Page 18
The p H calibration slope in m V/p H normalized to 25 °C (the percentage is referred to the ideal value of 59.16 m V/p H). Note: If you calibrate using electrodes with pin the electrode condition and ...
Page 19
Notes: Press GLP to return to measurement mode. If calibration has not been performed, the instruments display “no CAL” message blinking. Up to 100 logged samples can be stored into memory. LOGGING TH...
Page 20
The instrument will display the logged measurement value on the primary LCD and the record number on the secondary LCD, along with the “LOG” and “RCL” tags. Note: The “LOG” and “RCL” tags remain on LC...
Page 21
Note: On the screens where record number is not displayed press the SETUP key to display the record number. To delete records press CLR key. The “d EL” message will be displayed on the primary LCD and...
Page 22
Setup mode allows viewing and modification of the following parameters: Calibration Expiration Alarm Current Time (hour & minute) Current Date (year, month & day) Beep Status Instrument ID Tem...
Page 23
Press the ARROW keys to change the displayed value. Press the CFM key to save the modified value or press the CAL key to escape without saving. CURRENT DATE Press the CAL key when the current date is ...
Page 24
INSTRUMENT ID Press the CAL key when “In Id” is displayed. The instrument ID (“0000” to “9999”) will begin blinking. Press the ARROW keys to change the instrument ID value. Press the CFM key to save t...
Page 25
TEMPERATURE CALIBRATION (for technical personnel only) All the instruments are factory calibrated for temperature. Hanna’s temperature probes are interchangeable and no temperature calibration is need...
Page 26
When the reading is stable and close to the selected calibration point, “READY” tag will appear and “CFM” tag will blink. Press CFM to confirm. The instrument returns to measurement mode. Note: If the...
Page 27
PC INTERFACE Data transmission from the instrument to the PC can be done with the HI 92000 Windows® compatible software (optional). HI 92000 also offers graphing and on-line help feature. Data can be ...
Page 28
The instrument will answer for these commands with: <STX> <answer> <ETX> where: <STX> is 02 ASCII code character (start of text) <ETX> is 03 ASCII code character (end of ...
Page 29
MDR Requests the instrument model name and firmware code (16 ASCII chars). GLP Requests the calibration data record. The answer string contains: GLP status (1 char): represents a 4 bit hexadecimal enc...
Page 30
NSL Requests the number of logged samples (4 chars). LODxxx Requests the xxxth record logged data. LODALL Requests all Log on demand data. The answer string contains: p H resolution (2 chars): 00 - p ...
Page 31
ELECTRODE CONDIT IONING & MAINTENANCE PREPARATION PROCEDURE Remove the protective cap of the p H electrode. DO NOT BE ALARMED IF SALT DEPOSITS ARE PRESENT. This is normal with electrodes. They wil...
Page 32
For refillable electrodes: If the filling solution (electrolyte) is more than 2½ cm (1”) below the fill hole, add HI 7082 or HI 8082 3.5M KCl Electrolyte Solution for double junction or HI 7071 or HI ...
Page 33
CLEANING PROCEDURE • General Soak in Hanna HI 7061 or HI 8061 General Cleaning Solution for approximately ½ hour. • Protein Soak in Hanna HI 7073 or HI 8073 Protein Cleaning Solution for 15 minutes. •...
Page 34
TROUBLESHOOTING GUIDE SMOTPMYS MELBORP NOITULOS evissecxe/esnopserwol S .edortcele Hpytri D edortceleehtnael C .tfird dna pitehtkaosneht ni 1607IH ro 1608IH .setunim03rof puetautculfsgnidae R .noitcnu...
Page 35
TEMPERATURE CORRELATION FOR p H SENSITIVE GLASS The resistance of glass electrodes partially depends on the temperature. The lower the temperature, the higher the resistance. It takes more time for th...
Page 36
ACCESSORIES p H BUFFER SOLUTIONS HI 5003P p H 3.00 Buffer Sachets, 20 m L, 25 pcs HI 70004P p H 4.01 Buffer Sachets, 20 m L, 25 pcs HI 70007P p H 7.01 Buffer Sachets, 20 m L, 25 pcs HI 70010P p H 10.0...
Page 37
ORP PRETREATMENT SOLUTIONS HI 7091L Reducing Pretreatment Solution, 500 m L HI 7092L Oxidizing Pretreatment Solution, 500 m L p H ELECTRODES All electrodes with code ending with P are supplied with BN...
Page 38
HI 1048P; Use: wine measurements. Glass-body, refillable p H electrode with open junction, (PTFE) collar. ORP ELECTRODES HI 3131P; Use: titration. Glass-body, refillable, combination platinum ORP elec...
Page 39
HI 76404N Electrode holder HI 92000 Windows® compatible software. RECOMMENDATIONS FOR USERS Before using these products, make sure they are entirely suitable for the environment in which they are used...
