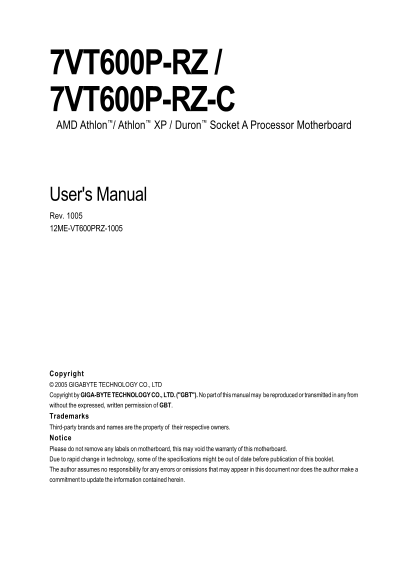

7VT600P-RZ / 7VT600P-RZ-C AMD Athlon™/ Athlon™ XP / Duron™ Socket A Processor Motherboard
User's Manual Rev. 1005 12ME-VT600PRZ-1005
Copyright © 2005 GIGABYTE TECHNOLOGY CO., LTD Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in any from without the expressed, written permission of GBT. Trademarks Third-party brands and names are the property of their respective owners. Notice Please do not remove any labels on motherboard, this may void the warranty of this motherboard. Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet. The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein.
Page Summary Contents For GIGABYTE 7VT600P- RZ 7VT600P- RZ- C AMD Athlon™, Athlon™ XP, Duron™ Socket A Processor Motherboard User' s Manual - Motherboard Guide
Page 1
7VT600P-RZ / 7VT600P-RZ-C AMD Athlon™/ Athlon™ XP / Duron™ Socket A Processor Motherboard User's Manual Rev. 1005 12ME-VT600PRZ-1005 Copyright © 2005 GIGABYTE TECHNOLOGY CO., LTD Copyright by GIGA-BYT...
Page 2
other Board 7VT600P-RZ otherboard 7V T600P-R ar. 20 ,2004 ar. 20, 2004
Page 3
Preparing Your Computer Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some pr...
Page 4
En gl is Table of Content Chapter 1 Introduction Features Summary 7VT600P-RZ Series Motherboard Layout Block Diagram Hardware Installation Process Step 1: Set System Jumper (JP1) Step 2: Install the C...
Page 5
English Chapter 1 Introduction Features Summary CPU Socket A processor AMD Athlon TM/ Athlon TM XP/ Duron TM (K7) 128K L1 & 512K/256K/64K L2 cache on die 200/266/333/400 MHz FSB Supports 1.4GHz an...
Page 6
En gl is BIOS Licensed Award BIOS Supports Q-Flash I/O Control IT8705 Hardware Monitor CPU/System Fan Revolution detect CPU/System temperature detect System voltage detect CPU/System fan fail warning ...
Page 7
English 7VT600P-RZ Series Motherboard Layout -C US CO MB CO MA 20.0 cm LA LP F_ AU DI CPU_FAN CD _I KB_MS SOCKET A FDD 7V T6 P- RZ DD R1AGP DD R2 AUDIO DD R3 VIA KT600 CLR_CMOS BATTERY VT6103L* JP1 .5...
Page 8
En gl is Block Diagram CPUCLK+/- (100/133/166/200MHz) AMD-K7TM AGP 4X/8X AC ink LI NE -IN System Bus100/133/166/200MHz AGPCLK LI NE -O UT (66MHz) DDR RAM HCLK+/- (100/133/166/200MHz) KT600 GCLK(66MHz)...
Page 9
English Hardware Installation Process To set up your computer, you must complete the following steps: Step 1- Set System Jumper (JP1) Step 2- Install the Central Processing Unit (CPU) Step 3- Install ...
Page 10
En gl is Step 2: Install the Central Processing Unit (CPU) Before installing the processor, adhere to the following warning: 1. Please make sure the CPU type is supported by the motherboard. 2. The pr...
Page 11
English Step 3: Install Memory Modules Before installing the memory modules, adhere to the following warning: 1. Please note that the DIMM module can only fit in one direction due to the one notch. Wr...
Page 12
En gl is Step 4: Install Expansion Cards 1. Read the related expansion card's instruction document before install the expansion card into the computer. 2. Please make sure your AGP card is AGP 4X/8X (...
Page 13
English Line In jack Devices like CD-ROM, walkman etc. can be connect to Line In jack. Line Out jack Connect the stereo speakers or earphone to this connector. MIC In jack Microphone can be connect to...
Page 14
En gl is 1) CPU_FAN (CPU FAN Connector) Please note, a proper installation of the CPU cooler is essential to prevent the CPU from running under abnormal condition or damaged by overheating.The CPU fan...
Page 15
English 4) IDE1/ IDE2(IDE1/IDE2 Connector) Please connect first harddisk to IDE1 and connect CDROM to IDE2. The red stripe of the ribbon cable must be the same side with the Pin1. 5) FDD (Floppy Conne...
Page 16
En gl is 7) F_PANEL (2 x 10 pins Connector) Please connect the power LED, PC speaker, reset switch and power switch etc. of your chassis front panel to the F_PANEL connector according to the pin assig...
Page 17
English 9) F_AUDIO (Front Audio Connector) If you want to use Front Audio connector, you must remove 5-6, 9-10 Jumper. In order to utilize the front audio header, your chassis must have front audio co...
Page 18
En gl is 12) AUX_IN ( AUX In Connector) Connect other device (such as PCI TV Tunner audio out)to the connector. Pin No. Definition AUX-L GND GND AUX-R 13) SPDIF_IO (SPDIF In/Out Connector) The SPDIF o...
Page 19
English 14) F_ USB1 / F_USB2 (Front USB Connector) Be careful with the polarity of the F_USB connector. Check the pin assignment carefully while you connect the F_USB cable, incorrect connection betwe...
Page 20
En gl is 17) CLR_CMOS (Clear CMOS) You may clear the CMOS data to its default values by this jumper. To clear CMOS, temporarily shor 1-2 pin. Default doesn't include the "Shunter" to prevent...
Page 21
English Chapter 2 BIOS Setup BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the basic system configuration. This type of information is stored in battery-...
Page 22
En gl is If you can't find the setting you want, please press "Ctrl+F1" to search the advanced option hidden. Standard CMOS Features This setup page includes all the items in standard compat...
Page 23
English Standard CMOS Features CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Standard CMOS Features Date (mm:dd:yy) Fri, Jan 9 2004 Item Help Time (hh:mm:ss) 22:31:24 Menu Level Change the...
Page 24
En gl is Drive A / Drive B The category identifies the types of floppy disk drive A or drive B that has been installed in the computer. None No floppy drive installed 360K, 5.25" 5.25 inch PC-typ...
Page 25
English Advanced BIOS Features CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Advanced BIOS Features First Boot Device [Floppy] Item Help Second Boot Device [HDD-0] Menu Level Third Boot De...
Page 26
En gl is Integrated Peripherals CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Integrated Peripherals On Chip IDE Channel0 [Enabled] Item Help On Chip IDE Channel1 [Enabled] On Chip Serial ...
Page 27
English USB 2.0 Controller Disable this option if you are not using the onboard USB 2.0 feature. Enabled Enabled USB 2.0 Controller. (Default value) Disabled Disabled USB 2.0 Controller. USB Keyboard ...
Page 28
En gl is Game Port Address Disabled Disabled this function. Set Game Port Address to 201. (Default Value) Set Game Port Address to 209. Midi Port Address Disabled Disabled this function. Set Midi Port...
Page 29
English ACPI Suspend Type S1(POS) Set suspend type to Power On Suspend under ACPI OS(Power On Suspend). (Default value) S3(STR) Set suspend type to Suspend To RAM under ACPI OS (Suspend To RAM). USB D...
Page 30
En gl is Modem Ring On/Wake On LAN (When AC Back Function set to [Soft-Off]) You can enable wake on LAN feature by the "Modem Ring On/Wake On LAN" or "PME Event Wake up" when the M...
Page 31
English PCI1/PCI5 IRQ Assignment Auto Auto assign IRQ to PCI 1/ PCI 5. (Default value) 3,4,5,7,9.,10,11,12,14,15 Set 3,4,5,7,9,10,11,12,14,15 to PCI1/ PCI5. PCI2 IRQ Assignment Auto Auto assign IRQ to...
Page 32
En gl is Reset Case Open Status Disabled Don't reset case open status. (Default value) Enabled Clear case open status at next boot. Case Opened If the case is closed, "Case Opened" will show...
Page 33
English Spread Spectrum Modulated Disabled Disable clock spread spectrum. Enabled Enable clock spread spectrum.(Default value) CPU Host Clock Control Note: If system hangs up before enter CMOS setup u...
Page 34
En gl is Load Fail-Safe Defaults CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Standard CMOS Features Load Fail-Safe Defaults Advanced BIOS Features Load Optimized Defaults Integrated Peri...
Page 35
English Set Supervisor/User Password CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Standard CMOS Features Load Fail-Safe Defaults Advanced BIOS Features Load Optimized Defaults Integrated ...
Page 36
En gl is Save & Exit Setup CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Standard CMOS Features Load Fail-Safe Defaults Advanced BIOS Features Load Optimized Defaults Integrated Periph...
Page 37
English Revision History Chapter 3 Install Drivers Install Drivers Picture below are shown in Windows XP Insert the driver CD-title that came with your motherboard into your CD-ROM drive, the driver C...
Page 38
En gl is Driver install finished ! You have to reboot system ! Item Description VIA 4IN1 Driver For INF, AGP, IDE and DMA Driver USB Path for Win XP This patch driver can help you to resolve the USB d...
Page 39
English Contact Us Taiwan (Headquarters) Japan GIGA-BYTE TECHNOLOGY CO., LTD. NIPPON GIGA-BYTE CORPORATION Address: No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, WEB address : http://www.gigabyte.co...
Page 40
En gl is China Russia NINGBO G.B.T. TECH. TRADING CO., LTD. Moscow Representative Office Of GIGA-BYTE Technology Co., Tech. Support : Ltd. http://tw.giga-byte.com/Tech Support/Service Center.htm Tech....
