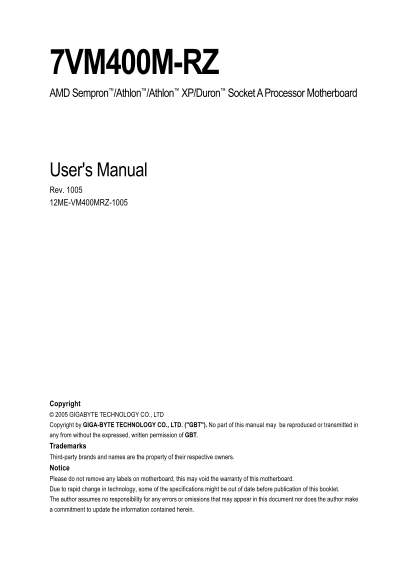

7VM400M-RZ AMD Sempron™/Athlon™/Athlon™ XP/Duron™ Socket A Processor Motherboard
User's Manual Rev. 1005 12ME-VM400MRZ-1005
Copyright © 2005 GIGABYTE TECHNOLOGY CO., LTD Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in any from without the expressed, written permission of GBT. Trademarks Third-party brands and names are the property of their respective owners. Notice Please do not remove any labels on motherboard, this may void the warranty of this motherboard. Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet. The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein.
Page Summary Contents For Gigabyte 7VM400M-RZ AMD Sempron/Athlon/Athlon XP/Duron Socket A Processor Motherboard User Manual
Page 1
7VM400M-RZ AMD Sempron™/Athlon™/Athlon™ XP/Duron™ Socket A Processor Motherboard User's Manual Rev. 1005 12ME-VM400MRZ-1005 Copyright © 2005 GIGABYTE TECHNOLOGY CO., LTD Copyright by GIGA-BYTE TECHNOL...
Page 2
Mother Board 7VM 400M -RZ otherboard 7V 400M -R Feb. 20 ,2004 Feb. 20, 2004
Page 3
Preparing Your Computer Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some pr...
Page 4
En gl is Table of Contents Chapter 1 Introduction Features Summary 7VM400M-RZ Motherboard Layout Block Diagram Hardware Installation Process Step 1: Set System Jumper (JP1) Step 2: Install the Central...
Page 5
English Chapter 1 Introduction Features Summary CPU Socket A for AMD Sempron™ / Athlon™ XP / Athlon™ / Duron™ processor 200/266/333MHz FSB Supports 1.4GHz and faster Chipset Northbridge : VIA KM400 So...
Page 6
En gl is 7VM400M-RZ Motherboard Layout C_ IN VG CO MA 22.3 cm LIN E_ OU LIN E_ IN LA KB_MS CPU_FAN SOCKET A VIA KM400 IT8705 7V M4 M- RZ BIOS AGP 8X SYS_FANMI F_AUDIO DD R1 DD R2 CLR_CMOS ID E1 VT8235...
Page 7
English Block Diagram CPUCLK+/- (100/133/166MHz) AMD-K7TM Host CPU AGP 4X/8X System Bus VGA Port 200/266/333MHz FSB 200/266/333MHz LI NE -IN AC Li nk LI NE -O UT DDR HCLK+/- (100/133/166MHz) KM400 AGP...
Page 8
En gl is Hardware Installation Process To set up your computer, you must complete the following steps: Step 1- Set System Jumper (JP1) Step 2- Install the Central Processing Unit (CPU) Step 3- Install...
Page 9
English Step 2: Install the Central Processing Unit (CPU) Before installing the processor, adhere to the following warning: 1. Please make sure the CPU type is supported by the motherboard. 2. The pro...
Page 10
En gl is Step 3: Install Memory Modules Before installing the memory modules, adhere to the following warning: 1. Please note that the DIMM module can only fit in one direction due to the one notch. W...
Page 11
English Step 4: Install AGP Card 1. Read the relate AGP card's instruction document before install the AGP card into the computer. 2. If your AGP card has "AGP 4X/8X(1.5V) notch"(show below)...
Page 12
En gl is Line In jack Devices like CD-ROM, walkman etc. can be connected to Line In jack. MIC In jack Microphone can be connect to MIC In jack. After installation of the audio driver, you are able to ...
Page 13
English 1) ATX (ATX Power) AC power cord should only be connected to your power supply unit after ATX power cable and other related devices are firmly connected to the mainboard. Pin No. Definition Pi...
Page 14
En gl is 4) FDD (Floppy Connector) Please connect the floppy drive ribbon cables to FDD. It supports 360K, 1.2M, 720K, 1.44M and 2.88M bytes floppy disk types. The red stripe of the ribbon cable must ...
Page 15
English 7) F_PANEL (2 x 10 pins Connector) Please connect the power LED, PC speaker, reset switch and power switch etc. of your chassis front panel to the F_PANEL connector according to the pin assign...
Page 16
En gl is 9) SUR_CEN (Surround Center Connector) Please contact your nearest dealer for optional SUR_CEN cable. Pin No. Definition SUR OUTL SUR OUTR GND No Pin CENTER_OUT BASS_OUT 10) SPDIF (SPDIF Out ...
Page 17
English 12) COMB (COM B Connector) Be careful with the polarity of the COMB connector. Check the pin assignment carefully while you connect the COMB cable, incorrect connection between the cable and c...
Page 18
En gl is 15) CLR_CMOS (Clear CMOS) You may clear the CMOS data to its default values by this jumper. To clear CMOS, temporarily short 1-2 pin. Default doesn't include the "Shunter" to preven...
Page 19
English Chapter 2 BIOS Setup BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the basic system configuration. This type of information is stored in battery-...
Page 20
En gl is If you can't find the setting you want, please press "Ctrl+F1" to search the advanced option hidden. Standard CMOS Features This setup page includes all the items in standard compat...
Page 21
English Standard CMOS Features CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Standard CMOS Features Date (mm:dd:yy) Tue, Nov 2 2004 Item Help Time (hh:mm:ss) 22:31:24 Menu Level Change the...
Page 22
En gl is Drive A / Drive B The category identifies the types of floppy disk drive A or drive B that has been installed in the computer. None No floppy drive installed 360K, 5.25" 5.25 inch PC-typ...
Page 23
English Advanced BIOS Features CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Advanced BIOS Features First Boot Device [Floppy] Item Help Second Boot Device [HDD-0] Menu Level Third Boot De...
Page 24
En gl is Integrated Peripherals CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Integrated Peripherals On Chip IDE Channel0 [Enabled] Item Help On Chip IDE Channel1 [Enabled] Menu Level AC97...
Page 25
English USB Mouse Support Enabled Enable USB mouse support. Disabled Disable USB mouse support. (Default value) On-Chip LAN Boot ROM This function decide whether to invoke the boot ROM of the onboard ...
Page 26
En gl is Power Management Setup CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Power Management Setup ACPI Suspend Type [S1(POS)] Item Help USB Device Wake-Up from S3 Disabled Menu Level Po...
Page 27
English PME Event Wake Up When set at Enabled, any PCI-PM event can awake the system from a PCI-PM controlled stated. This feature requires an ATX power supply that provides at least 1A on the +5VSB l...
Page 28
En gl is PC Health Status CMOS Setup Utility-Copyright (C) 1984-2004 Award Software PC Health Status Vcore OK Item Help 25VSTR OK Menu Level +3.3V OK +12V OK Current System Temperature 32o C Current C...
Page 29
English Frequency/Voltage Control CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Frequency/Voltage Control Auto Detect PCI/DIMM Clk [Enabled] Item Help Spread Specturm [Enabled] Menu Level ...
Page 30
En gl is DIMM Over Voltage Control Increase DIMM voltage may get stable for over-clock. But it may damage to memory module when enable this feature. Auto Supply voltage as DIMM required. (Default valu...
Page 31
English Set Supervisor/User Password CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Standard CMOS Features Load Fail-Safe Defaults Advanced BIOS Features Load Optimized Defaults Integrated ...
Page 32
En gl is Save & Exit Setup CMOS Setup Utility-Copyright (C) 1984-2004 Award Software Standard CMOS Features Load Fail-Safe Defaults Advanced BIOS Features Load Optimized Defaults Integrated Periph...
Page 33
English Revision History Chapter 3 Install Drivers Install Drivers Pictures below are shown in Windows XP Insert the driver CD-title that came with your motherboard into your CD-ROM drive, the driver ...
Page 34
En gl is Driver install finished ! You have to reboot system ! Item Description VIA 4IN1 Driver For INF, AGP, IDE and DMA driver. VIA KM400 VGA Driver For KM400 drvier. USB Patch for Win XP This patch...
Page 35
English Contact Us Taiwan (Headquarters) Japan GIGA-BYTE TECHNOLOGY CO., LTD. NIPPON GIGA-BYTE CORPORATION Address: No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, WEB address : http://www.gigabyte.co...
Page 36
En gl is China Australia NINGBO G.B.T. TECH. TRADING CO., LTD. GIGABYTE TECHNOLOGY PTY. LTD. Tech. Support : Tech. Support : http://cn.giga-byte.com/Tech Support/Service Center.htm http://www.giga-byt...
