1T 1102 • U 1T 1102R (P relim in ary) U iversal S erial B s P erip eral Tran sceiver w ith Vo ltag e R eg lato

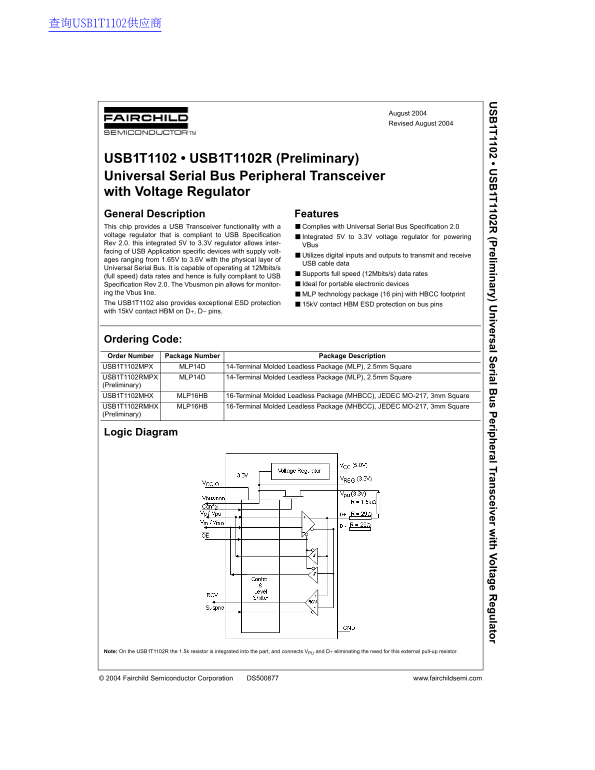

August 2004 Revised August 2004

USB1T1102 • USB1T1102R (Preliminary) Universal Serial Bus Peripheral Transceiver with Voltage Regulator General Description Features This chip provides a USB Transceiver functionality with a ■Complies with Universal Serial Bus Specification 2.0 voltage regulator that is compliant to USB Specification Integrated 5V to 3.3V voltage regulator for powering Rev 2.0. this integrated 5V to 3.3V regulator allows inter-

facing of USB Application specific devices with supply volt-

■Utilizes digital inputs and outputs to transmit and receive

ages ranging from 1.65V to 3.6V with the physical layer of

USB cable data

Universal Serial Bus. It is capable of operating at 12Mbits/s

■Supports full speed (12Mbits/s) data rates

(full speed) data rates and hence is fully compliant to USB

Specification Rev 2.0. The Vbusmon pin allows for monitor- Ideal for portable electronic devices

ing the Vbus line. ■MLP technology package (16 pin) with HBCC footprint The USB1T1102 also provides exceptional ESD protection ■15k V contact HBM ESD protection on bus pins with 15k V contact HBM on D+, D− pins.

Ordering Code: Order Number Package Number Package Description USB1T1102MPX MLP14D 14-Terminal Molded Leadless Package (MLP), 2.5mm Square USB1T1102RMPX MLP14D 14-Terminal Molded Leadless Package (MLP), 2.5mm Square (Preliminary) USB1T1102MHX MLP16HB 16-Terminal Molded Leadless Package (MHBCC), JEDEC MO-217, 3mm Square USB1T1102RMHX MLP16HB 16-Terminal Molded Leadless Package (MHBCC), JEDEC MO-217, 3mm Square (Preliminary)

Logic Diagram

Note: On the USB1T1102R the 1.5k resistor is integrated into the part, and connects VPU and D+ eliminating the need for this external pull-up resistor.

© 2004 Fairchild Semiconductor Corporation DS500877 www.fairchildsemi.com
