Built for digital circuit designers and electrical engineers, this IC provides four independent 2-input NAND gates with robust open-collector outputs. The detailed manual serves as a comprehensive reference, covering critical operating parameters, absolute maximum ratings, specialized wiring requirements (including pull-up equations), and precise switching characteristics. Use this datasheet to ensure reliable implementation of complex logic functions in your hardware design.

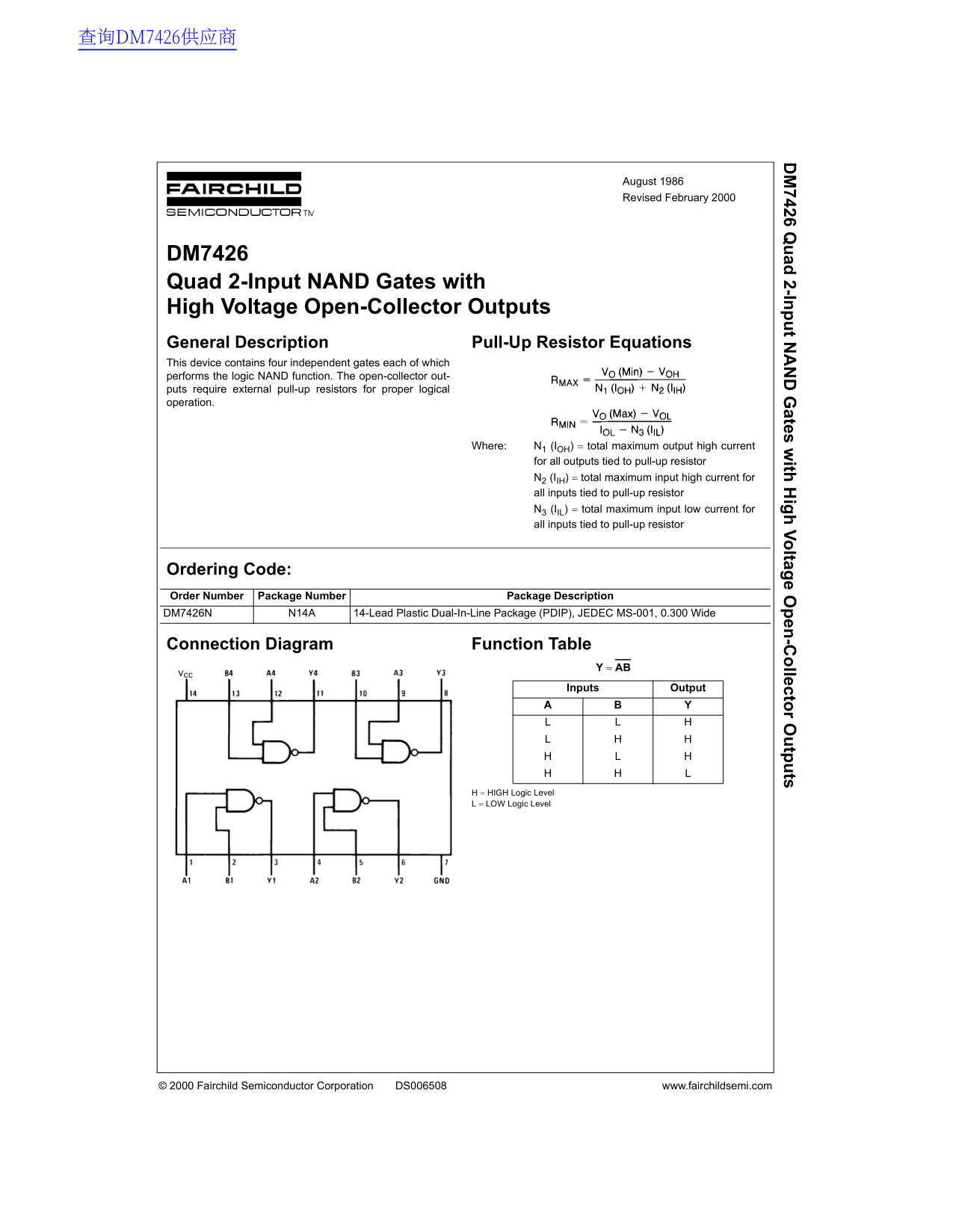

Page 1 Text Content
查询DM7426供应商
7426 Q ad 2-In t N ates w ith ig ltag e O en -C llecto r O tp ts
August 1986 Revised February 2000
DM7426 Quad 2-Input NAND Gates with High Voltage Open-Collector Outputs General Description Pull-Up Resistor Equations This device contains four independent gates each of which performs the logic NAND function. The open-collector out- puts require external pull-up resistors for proper logical operation.
Where: N1 (IOH) = total maximum output high current
for all outputs tied to pull-up resistor
N2 (IIH) = total maximum input high current for
all inputs tied to pull-up resistor N3 (IIL) = total maximum input low current for all inputs tied to pull-up resistor
Ordering Code: Order Number Package Number Package Description DM7426N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Connection Diagram Function Table
Y = AB
Inputs Output
H = HIGH Logic Level L = LOW Logic Level
© 2000 Fairchild Semiconductor Corporation DS006508 www.fairchildsemi.com
Page Summary Contents For Fairchild DM7426 Data Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 3 |
| File Size | 37.83 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Does the DM7426 require external components for operation?
Yes, because it uses open-collector outputs, external pull-up resistors are required for proper logical function.
What are the recommended operating conditions?
The device recommends an operational supply voltage (VCC) of 5V and an ambient temperature range of 0°C to +70°C.
What logic gate does this component perform?
It contains four independent gates, each performing a 2-Input NAND function.
Are there different package options available?
The standard ordering code DM7426N comes in the N14A 14-Lead Plastic Dual-In-Line Package (PDIP).
