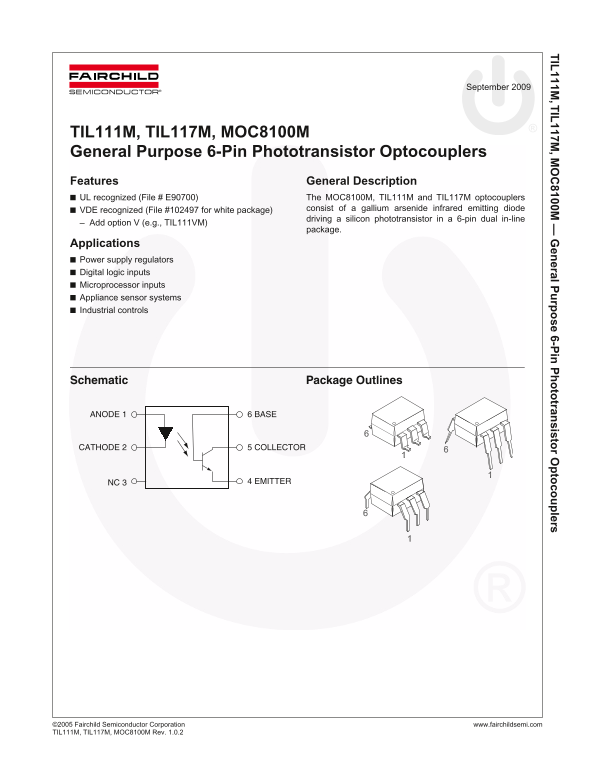

Fairchild Til111M Til117M Moc8100M Data Manual
Summary
Illuminate your circuits with these General Purpose Phototransistor Optocouplers, engineered to provide robust electrical isolation for critical signal transfer. Ideal for diverse applications including industrial controls, power supply regulators, microprocessor inputs, and appliance sensor systems. This manual offers comprehensive technical resources, covering absolute maximum ratings, detailed electrical characteristics, and performance curves necessary for reliable system design and integration.
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 11 |
| File Size | 252.23 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating temperature range for these optocouplers?
The specified operating temperature (OPR T) is from -40 to +100 °C.
How are the phototransistor optocouplers isolated and used in applications?
They provide isolation suitable for power supply regulators, digital logic inputs, microprocessor inputs, and industrial controls.
What is the typical Collector-Emitter Dark Current (CEO CE) for TIL111M/TIL117M at room temperature?
For TIL111M and TIL117M, the CEO dark current is typically 50 nA when tested at V = 10V.
What are the maximum specified limits for power dissipation or operating conditions?
Total device power dissipation can be 250 mW at 25°C; storage temperature ranges from -40 to +150°C.
