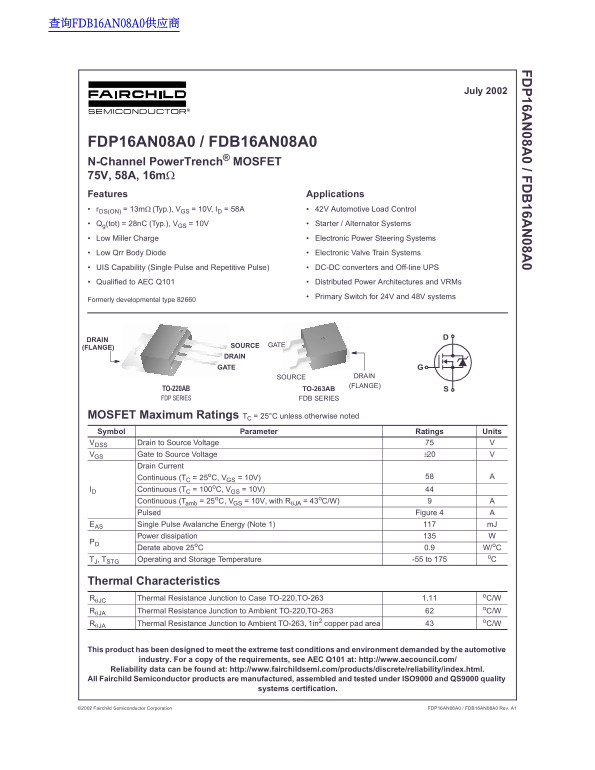

FDP16AN08A0 / FDB16AN08A0 N-Channel Power Trench® MOSFET 75V, 58A, 16mΩ Features Applications r DS(ON) = 13mΩ (Typ.), VGS = 10V, ID = 58A 42V Automotive Load Control Qg(tot) = 28n C (Typ.), VGS = 10V Starter / Alternator Systems Low Miller Charge Electronic Power Steering Systems Low Qrr Body Diode Electronic Valve Train Systems UIS Capability (Single Pulse and Repetitive Pulse) DC-DC converters and Off-line UPS Qualified to AEC Q101 Distributed Power Architectures and VRMs

Primary Switch for 24V and 48V systems

Formerly developmental type 82660

DRAIN

SOURCE(FLANGE) GATE

DRAIN GATE

SOURCE DRAIN (FLANGE)TO-220AB

STO-263AB

FDP SERIES FDB SERIES

MOSFET Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain to Source Voltage

VGS Gate to Source Voltage ±20 Drain Current

AContinuous (TC = 25o C, VGS = 10V)

ID Continuous (TC = 100o C, VGS = 10V) Continuous (Tamb = 25o C, VGS = 10V, with RθJA = 43o C/W) Pulsed Figure 4 EAS Single Pulse Avalanche Energy (Note 1) m J Power dissipation

Derate above 25o C 0.9 W/o C

TJ, TSTG Operating and Storage Temperature -55 to 175

Thermal Characteristics

RθJC Thermal Resistance Junction to Case TO-220,TO-263 1.11

RθJA Thermal Resistance Junction to Ambient TO-220,TO-263 62

RθJA Thermal Resistance Junction to Ambient TO-263, 1in2 copper pad area

This product has been designed to meet the extreme test conditions and environment demanded by the automotive

industry. For a copy of the requirements, see AEC Q101 at: http://www.aecouncil.com/

Reliability data can be found at: http://www.fairchildsemi.com/products/discrete/reliability/index.html. All Fairchild Semiconductor products are manufactured, assembled and tested under ISO9000 and QS9000 quality

systems certification.

©2002 Fairchild Semiconductor Corporation FDP16AN08A0 / FDB16AN08A0 Rev. A1
