Fairchild FDB2532 FDP2532 FDI2532 Data Manual

Summary

These N-Channel Power Trench MOSFETs are high-reliability switches rated for demanding industrial and automotive applications (up to 150V/79A). Optimized with features like low Miller Charge and UIS capability, they excel in DC/DC converters, UPS systems, and complex primary switching architectures. This comprehensive manual details the device's maximum ratings, detailed electrical characteristics (including extremely low on-resistance), dynamic switching performance, and thermal constraints necessary for robust design integration. Ideal for engineers developing reliable power management solutions in automotive load control, data centers, and high voltage synchronous rectification circuits.

📄 Preview PAGE OF 11

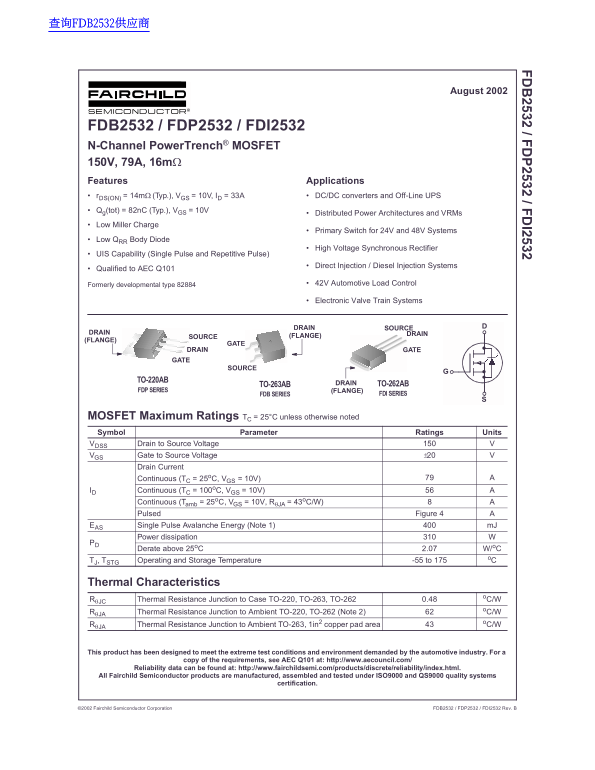

Page 1 Text Content

查询FDB2532供应商

August 2002

FDB2532 / FDP2532 / FDI2532 N-Channel Power Trench® MOSFET 150V, 79A, 16mΩ Features Applications r DS(ON) = 14mΩ (Typ.), VGS = 10V, ID = 33A DC/DC converters and Off-Line UPS Qg(tot) = 82n C (Typ.), VGS = 10V

Distributed Power Architectures and VRMs

Low Miller Charge

Primary Switch for 24V and 48V Systems

Low QRR Body Diode

High Voltage Synchronous Rectifier

UIS Capability (Single Pulse and Repetitive Pulse)

Direct Injection / Diesel Injection Systems

Qualified to AEC Q101

Formerly developmental type 82884 42V Automotive Load Control

Electronic Valve Train Systems

DRAIN SOURCE

DRAIN DRAIN

SOURCE (FLANGE)

(FLANGE)

DRAIN GATE GATE

SOURCE

TO-220AB

TO-263AB DRAIN TO-262AB

FDP SERIES (FLANGE)

FDB SERIES FDI SERIES

MOSFET Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain to Source Voltage VGS Gate to Source Voltage ±20

Drain Current

AContinuous (TC = 25o C, VGS = 10V)

ID Continuous (TC = 100o C, VGS = 10V)

Continuous (Tamb = 25o C, VGS = 10V, RθJA = 43o C/W) Pulsed Figure 4

EAS Single Pulse Avalanche Energy (Note 1) m J

Power dissipation

Derate above 25o C 2.07 W/o C

TJ, TSTG Operating and Storage Temperature -55 to 175

Thermal Characteristics

RθJC Thermal Resistance Junction to Case TO-220, TO-263, TO-262 0.48

RθJA Thermal Resistance Junction to Ambient TO-220, TO-262 (Note 2)

RθJA Thermal Resistance Junction to Ambient TO-263, 1in2 copper pad area

This product has been designed to meet the extreme test conditions and environment demanded by the automotive industry. For a

copy of the requirements, see AEC Q101 at: http://www.aecouncil.com/

Reliability data can be found at: http://www.fairchildsemi.com/products/discrete/reliability/index.html.

All Fairchild Semiconductor products are manufactured, assembled and tested under ISO9000 and QS9000 quality systems

certification.

©2002 Fairchild Semiconductor Corporation FDB2532 / FDP2532 / FDI2532 Rev. B

Page Summary Contents For Fairchild FDB2532 FDP2532 FDI2532 Data Manual

Page 1 查询FDB2532供应商 August 2002 FDB2532 / FDP2532 / FDI2532 N-Channel Power Trench® MOSFET 150V, 79A, 16mΩ Features Applications r DS(ON) = 14mΩ (Typ.), VGS = 10V, ID = 33A DC/DC converters and Off-Line UPS ...
Page 2 2532 / F 2532 / F I2532 Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDB2532 FDB2532 TO-263AB 330mm 24mm 800 units FDP2532 FDP2532 TO-220AB Tube...
Page 3 2532 / F 2532 / F I2532 Typical Characteristics TA = 25°C unless otherwise noted IS IP IO LT IP IE , P θJ , N IZ 1.2 IM VGS = 10V TC, CASE TEMPERATURE (o C) TC, CASE TEMPERATURE (o C) Figure 1. Normal...
Page 4 2532 / F 2532 / F I2532 Typical Characteristics TA = 25°C unless otherwise noted IN IS TA , D IN , D IN STARTING TJ = 25o C OPERATION IN THIS 1ms STARTING TJ = 150o C AREA MAY BE LIMITED BY r DS(ON) I...
Page 5 2532 / F 2532 / F I2532 Typical Characteristics TA = 25°C unless otherwise noted , C PA IT IZ LT VGS = VDS, ID = 250µA ID = 250µA TJ, JUNCTION TEMPERATURE (o C) TJ, JUNCTION TEMPERATURE (o C) Figure 1...
Page 6 2532 / F 2532 / F I2532 Test Circuits and Waveforms VDS BVDSS VARY t P TO OBTAIN REQUIRED PEAK IAS RG 0V IAS Figure 15. Unclamped Energy Test Circuit Figure 16. Unclamped Energy Waveforms VDD Qg(TOT) ...
Page 7 2532 / F 2532 / F I2532 Thermal Resistance vs. Mounting Pad Area The maximum rated junction temperature, TJM, and the thermal resistance of the heat dissipating path determines RθJA = 26.51+ 19.84/(0....
Page 8 2532 / F 2532 / F I2532 PSPICE Electrical Model .SUBCKT FDB2532 2 1 3 ; rev April 2002 CA 12 8 1.4e-9 CB 15 14 1.6e-9 LDRAIN CIN 6 8 5.61e-9 DPLCAP DRAIN Dbody 7 5 Dbody MOD RLDRAIN Dbreak 5 11 Dbreak...
Page 9 2532 / F 2532 / F I2532 SABER Electrical Model REV April 2002 ttemplate FDB2532 n2,n1,n3 electrical n2,n1,n3 var i iscl dp..model dbodymod = (isl=6.0e-11,nl=1.09,rs=2.3e-3,trs1=3.0e-3,trs2=1.0e-6,cjo=...
Page 10 2532 / F 2532 / F I2532 SPICE Thermal Model th JUNCTION REV 26 February 2002 FDB2532 CTHERM1 TH 6 7.5e-3 CTHERM2 6 5 8.0e-3 CTHERM3 5 4 9.0e-3 RTHERM1 CTHERM1 CTHERM4 4 3 2.4e-2 CTHERM5 3 2 3.4e-2 CTH...
Page 11 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FACT...

Manual Details

Brand Fairchild
Pages 11
File Size 214.11 KB
Published June 17, 2026
4 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the package type and reel size for FDB2532?

FDB2532 comes in TO-263AB package with a 330mm reel size and 800 units per reel.

How is power dissipation derated above 25°C?

Power dissipation derates at 2.07W/°C above 25°C.

Is this MOSFET qualified for automotive applications?

Yes, it is qualified to AEC Q101 for automotive use.
