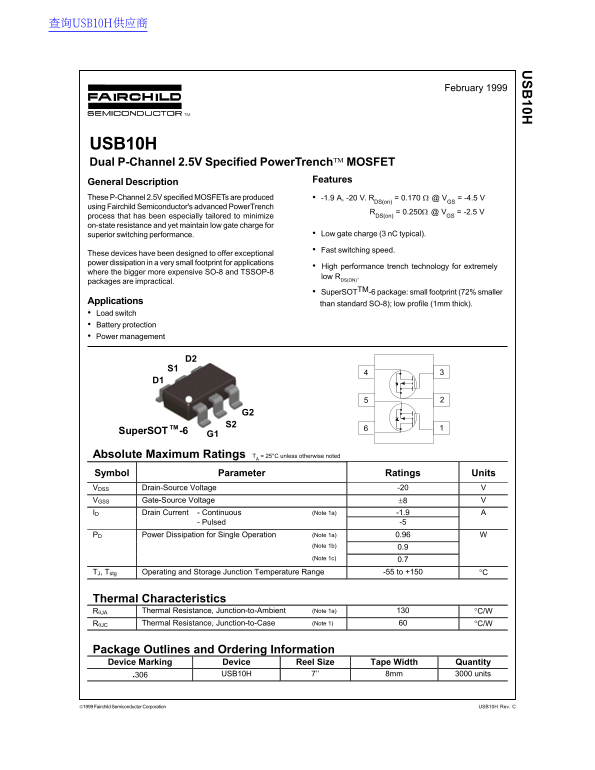

Page 1 Text Content
查询USB10H供应商
February 1999
USB10H Dual P-Channel 2.5V Specified Power Trench MOSFET
Features
General Description These P-Channel 2.5V specified MOSFETs are produced -1.9 A, -20 V. R = 0.170 Ω @ V = -4.5 V
DS(on) GS
using Fairchild Semiconductor's advanced Power Trench
= 0.250Ω @ V = -2.5 V process that has been especially tailored to minimize DS(on) GS
on-state resistance and yet maintain low gate charge for
superior switching performance. Low gate charge (3 n C typical).
Fast switching speed.
These devices have been designed to offer exceptional power dissipation in a very small footprint for applications
• High performance trench technology for extremely
where the bigger more expensive SO-8 and TSSOP-8
low RDS(ON).
packages are impractical.
Super SOTTM-6 package: small footprint (72% smaller
Applications
than standard SO-8); low profile (1mm thick).
Load switch Battery protection • Power management
Super SOT -6TM
Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain-Source Voltage -20 VGSS Gate-Source Voltage ±8 ID Drain Current - Continuous (Note 1a) -1.9
- Pulsed -5
PD Power Dissipation for Single Operation (Note 1a) 0.96 (Note 1b) 0.9 (Note 1c) 0.7
TJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 °C
Thermal Characteristics
RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) °C/W RθJC Thermal Resistance, Junction-to-Case (Note 1) °C/W
Package Outlines and Ordering Information Device Marking Device Reel Size Tape Width Quantity
.306 USB10H 7’’ 8mm 3000 units
1999 Fairchild Semiconductor Corporation USB10H Rev. C
