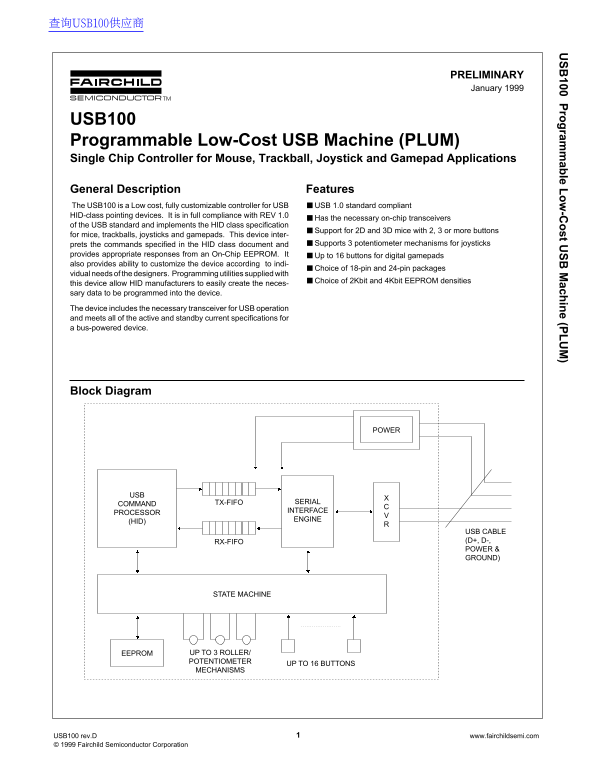

Page 1 Text Content
查询USB100供应商 100 P ro ram ab le L -C st U ach in e (P
PRELIMINARY January 1999
USB100 Programmable Low-Cost USB Machine (PLUM) Single Chip Controller for Mouse, Trackball, Joystick and Gamepad Applications General Description Features The USB100 is a Low cost, fully customizable controller for USB USB 1.0 standard compliant HID-class pointing devices. It is in full compliance with REV 1.0
Has the necessary on-chip transceivers
of the USB standard and implements the HID class specification
Support for 2D and 3D mice with 2, 3 or more buttons
for mice, trackballs, joysticks and gamepads. This device inter-
prets the commands specified in the HID class document and Supports 3 potentiometer mechanisms for joysticks
provides appropriate responses from an On-Chip EEPROM. It Up to 16 buttons for digital gamepads also provides ability to customize the device according to indi-
Choice of 18-pin and 24-pin packages
vidual needs of the designers. Programming utilities supplied with
Choice of 2Kbit and 4Kbit EEPROM densities
this device allow HID manufacturers to easily create the neces- sary data to be programmed into the device. The device includes the necessary transceiver for USB operation and meets all of the active and standby current specifications for a bus-powered device.
Block Diagram
POWER
TX-FIFO SERIAL
COMMAND
INTERFACE
PROCESSOR
ENGINE
(HID)
USB CABLE RX-FIFO (D+, D-, POWER & GROUND)
STATE MACHINE
EEPROM UP TO 3 ROLLER/ POTENTIOMETER
UP TO 16 BUTTONS
MECHANISMS
Use "A Diagram Number" Style Sheet"
USB100 rev.D www.fairchildsemi.com © 1999 Fairchild Semiconductor Corporation
