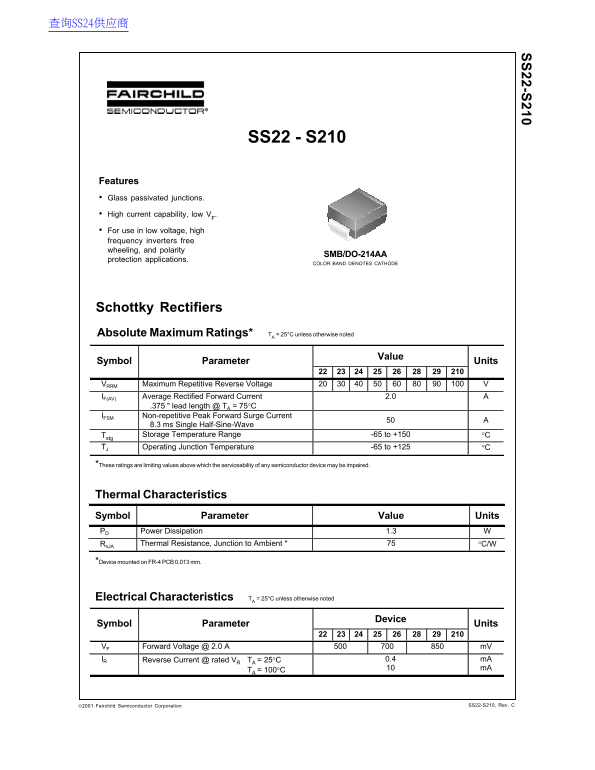

SS22-S210
SS22 - S210
Features Glass passivated junctions. High current capability, low VF. For use in low voltage, high frequency inverters free wheeling, and polarity
SMB/DO-214AA
protection applications.
COLOR BAND DENOTES CATHODE
Schottky Rectifiers Absolute Maximum Ratings* TA = 25°C unless otherwise noted
Value
Symbol Parameter Units 22 23 24 25 26 28 29 210 VRRM Maximum Repetitive Reverse Voltage 20 30 40 50 60 80 90 100 V
IF(AV) Average Rectified Forward Current 2.0 A
.375 " lead length @ TA = 75°C
IFSM Non-repetitive Peak Forward Surge Current
8.3 ms Single Half-Sine-Wave 50 A
Tstg Storage Temperature Range -65 to +150 °C TJ Operating Junction Temperature -65 to +125 °C
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics Symbol Parameter Value Units PD Power Dissipation 1.3 W RθJA Thermal Resistance, Junction to Ambient * 75 °C/W *Device mounted on FR-4 PCB 0.013 mm.
Electrical Characteristics TA = 25°C unless otherwise noted
Device
Symbol Parameter Units 22 23 24 25 26 28 29 210 VF Forward Voltage @ 2.0 A 500 700 850 m V
IR Reverse Current @ rated VR TA = 25°C 0.4 m A
TA = 100°C
