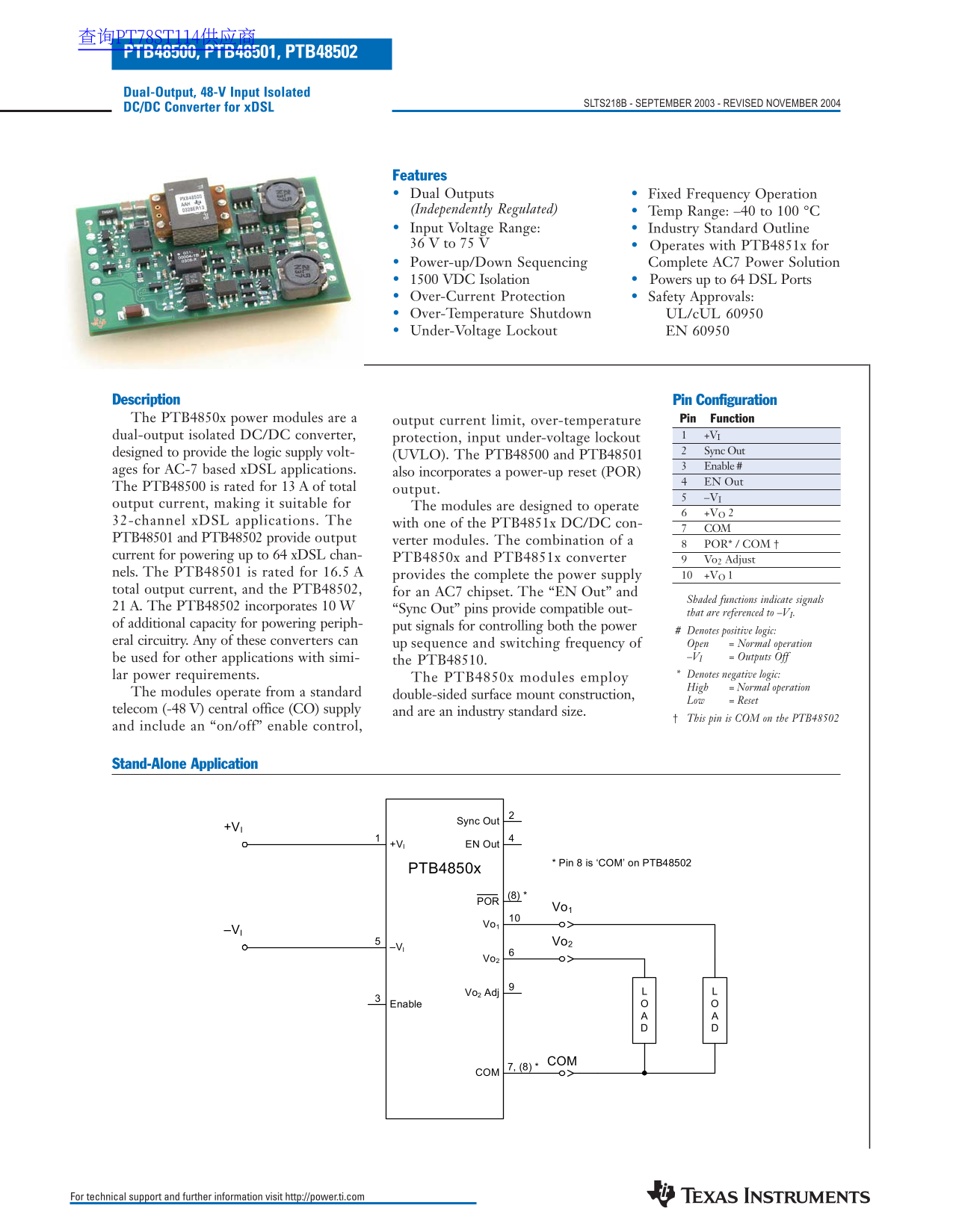

查询PT78ST114供应商 PTB48500, PTB48501, PTB48502
Dual-Output, 48-V Input Isolated
SLTS218B - SEPTEMBER 2003 - REVISED NOVEMBER 2004
DC/DC Converter for x DSL
Features Dual Outputs Fixed Frequency Operation (Independently Regulated) Temp Range: –40 to 100 °C Input Voltage Range: Industry Standard Outline 36 V to 75 V Operates with PTB4851x for Power-up/Down Sequencing Complete AC7 Power Solution 1500 VDC Isolation Powers up to 64 DSL Ports Over-Current Protection Safety Approvals: Over-Temperature Shutdown UL/c UL 60950 Under-Voltage Lockout EN 60950
Description Pin Configuration The PTB4850x power modules are a output current limit, over-temperature Pin Function
dual-output isolated DC/DC converter, protection, input under-voltage lockout +VI designed to provide the logic supply volt- Sync Out
(UVLO). The PTB48500 and PTB48501
Enable #
ages for AC-7 based x DSL applications. also incorporates a power-up reset (POR)
EN Out
The PTB48500 is rated for 13 A of total output.
output current, making it suitable for The modules are designed to operate
+VO 2
32-channel x DSL applications. The with one of the PTB4851x DC/DC con-
PTB48501 and PTB48502 provide output verter modules. The combination of a
POR* / COM †
current for powering up to 64 x DSL chan- PTB4850x and PTB4851x converter
Vo2 Adjust
nels. The PTB48501 is rated for 16.5 A provides the complete the power supply +VO 1 total output current, and the PTB48502, for an AC7 chipset. The “EN Out” and
Shaded functions indicate signals
21 A. The PTB48502 incorporates 10 W “Sync Out” pins provide compatible out-
that are referenced to –VI.
of additional capacity for powering periph- put signals for controlling both the power
Denotes positive logic:
eral circuitry. Any of these converters can up sequence and switching frequency of Open = Normal operation
be used for other applications with simi- –VI = Outputs Off
the PTB48510.
lar power requirements. Denotes negative logic:
The PTB4850x modules employ
High = Normal operation
The modules operate from a standard double-sided surface mount construction,
Low = Reset
telecom (-48 V) central office (CO) supply and are an industry standard size.
This pin is COM on the PTB48502
and include an “on/off” enable control,
Stand-Alone Application
Sync Out
+VI EN Out
* Pin 8 is ‘COM’ on PTB48502
PTB4850x
(8) * POR
Vo2 Adj
Enable
COM 7, (8) *
For technical support and further information visit http://power.ti.com
