Achieve high-efficiency power conversion with this single-package solution that uniquely combines an optocoupler, precision reference voltage source, and error amplifier. Delivering robust isolation up to 2,500V RMS, the FOD2742 series is essential for isolated AC to DC supplies and advanced DC/DC converters. It provides superior performance through low temperature coefficients and high functional integration, allowing power supply designers to significantly reduce component count and save valuable space in tightly packaged systems. This manual details electrical specifications, application guidelines, and configuration methods for achieving optimized system regulation.

📄 Preview PAGE OF 14

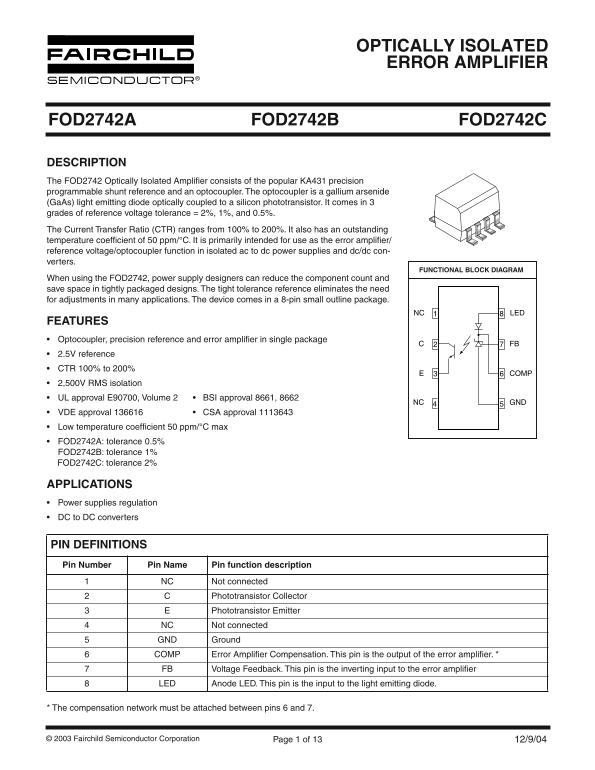

Page 1 Text Content

OPTICALLY ISOLATED ERROR AMPLIFIER

FOD2742A FOD2742B FOD2742C

DESCRIPTION The FOD2742 Optically Isolated Amplifier consists of the popular KA431 precision programmable shunt reference and an optocoupler. The optocoupler is a gallium arsenide (Ga As) light emitting diode optically coupled to a silicon phototransistor. It comes in 3 grades of reference voltage tolerance = 2%, 1%, and 0.5%. The Current Transfer Ratio (CTR) ranges from 100% to 200%. It also has an outstanding temperature coefficient of 50 ppm/°C. It is primarily intended for use as the error amplifier/ reference voltage/optocoupler function in isolated ac to dc power supplies and dc/dc con- verters.

FUNCTIONAL BLOCK DIAGRAM

When using the FOD2742, power supply designers can reduce the component count and save space in tightly packaged designs. The tight tolerance reference eliminates the need for adjustments in many applications. The device comes in a 8-pin small outline package.

NC LED

FEATURES Optocoupler, precision reference and error amplifier in single package

2.5V reference CTR 100% to 200%

2,500V RMS isolation UL approval E90700, Volume 2 BSI approval 8661, 8662

NC GND

VDE approval 136616 CSA approval 1113643 Low temperature coefficient 50 ppm/°C max FOD2742A: tolerance 0.5% FOD2742B: tolerance 1% FOD2742C: tolerance 2%

APPLICATIONS Power supplies regulation DC to DC converters

PIN DEFINITIONS Pin Number Pin Name Pin function description

NC Not connected

Phototransistor Collector Phototransistor Emitter

NC Not connected GND Ground COMP Error Amplifier Compensation. This pin is the output of the error amplifier. * FB Voltage Feedback. This pin is the inverting input to the error amplifier LED Anode LED. This pin is the input to the light emitting diode.

* The compensation network must be attached between pins 6 and 7.

© 2003 Fairchild Semiconductor Corporation Page 1 of 13 12/9/04

Page Summary Contents For FAIRCHILD SEMICONDUCTOR FOD2742A FOD2742B FOD2742C User Manual (2)

Page 1 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2742A FOD2742B FOD2742C DESCRIPTION The FOD2742 Optically Isolated Amplifier consists of the popular KA431 precision programmable shunt reference and an optocoupl...
Page 2 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2742A FOD2742B FOD2742C TYPICAL APPLICATION FAN4803 PWM Control FOD2742 ABSOLUTE MAXIMUM RATINGS (T = 25°C Unless otherwise specified.) Parameter Symbol Value Uni...
Page 3 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2742A FOD2742B FOD2742C ELECTRICAL CHARACTERISTICS (T = 25°C Unless otherwise specified.) INPUT CHARACTERISTICS Parameter Test Conditions Symbol Device Min. Typ. ...
Page 4 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2742A FOD2742B FOD2742C OUTPUT CHARACTERISTICS (T = 25°C Unless otherwise specified.) Parameter Test Conditions Symbol Min Typ Max Unit Collector dark current (V ...
Page 5 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2742A FOD2742B FOD2742C I(LED) I(LED) VCOMP VREF R2 VREF FIG. 1. VREF, VF, ILED (min) TEST CIRCUIT FIG. 2. ∆VREF/∆VCOMP TEST CIRCUIT I(LED) I(OFF) V(LED) FIG. 3. ...
Page 6 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2742A FOD2742B FOD2742C VCC = +5V DC IF = 10 m A 47Ω VIN 0.47V0.1 VPP Fig. 7 Frequency Response Test Circuit VCC = +5V DC IF = 0 m A (A) IF = 10 m A (B) 10VP-P Fi...
Page 7 OPTICALLY ISOLATED ERROR AMPLIFIER ef er en ce ol ta ge ff- st at ur re nt n A up pl ur re nt FOD2742A FOD2742B FOD2742C TYPICAL PERFORMANCE CURVES Fig. 9a – LED Current vs. Cathode Voltage Fig. 9b – ...
Page 8 OPTICALLY ISOLATED ERROR AMPLIFIER ar ur re nt n A ol le ct or ur re nt (I /I ur re nt ra ns fe at io FOD2742A FOD2742B FOD2742C TYPICAL PERFORMANCE CURVES Fig. 15 – Collector Current vs. Ambient Temp...
Page 9 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2742A FOD2742B FOD2742C TYPICAL PERFORMANCE CURVES Fig. 20 – Voltage Gain vs. Frequency VCC=10V ol ta ge ai d B IF=10m A RL = 100Ω -5 RL = 500Ω RL = 1kΩ Frequency...
Page 10 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2742A FOD2742B FOD2742C The FOD2742 Compensation The FOD2742 is an optically isolated error amplifier. It incorpo- The compensation pin of the FOD2742 provides th...
Page 11 OPTICALLY ISOLATED ERROR AMPLIFIER IN LA FOD2742A FOD2742B FOD2742C Package Dimensions Footprint Drawing Lead Coplanarity : 0.004 (0.10) MAX ORDERING INFORMATION Option Order Entry Identifier Descript...
Page 12 OPTICALLY ISOLATED ERROR AMPLIFIER Te er at re °C FOD2742A FOD2742B FOD2742C Carrier Tape Specifications Ø1.5 MIN 0.30 MAX 4.0 ± 0.10 0.1 MAX 6.40 ± 0.20 Ø1.5 ± 0.1/-0 User Direction of Feed Reflow Pr...
Page 13 OPTICALLY ISOLATED ERROR AMPLIFIER FOD2742A FOD2742B FOD2742C DISCLAIMER FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY...
Page 14 This datasheet has been download from: www.datasheetcatalog.com Datasheets for electronics components.

Manual Details

Brand Fairchild
Pages 14
File Size 167.35 KB
Published May 31, 2026
62 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the primary function of the FOD2742 series?

It operates as an error amplifier, reference voltage source, and optocoupler in a single package, primarily for isolated ac to dc power supplies.

What are the different tolerance options available?

The ROHS comes in three grades with tolerance levels of 2%, 1%, or 0.5% (FOD2742C, FOD2742B, and FOD2742A, respectively).

Where is the compensation network connected?

The compensation network must be attached between pins 6 (COMP) and 7 (FB).

Is there a required reflow temperature profile for soldering?

Yes, one time soldering reflow is recommended with a peak reflow temperature of 245°C.
