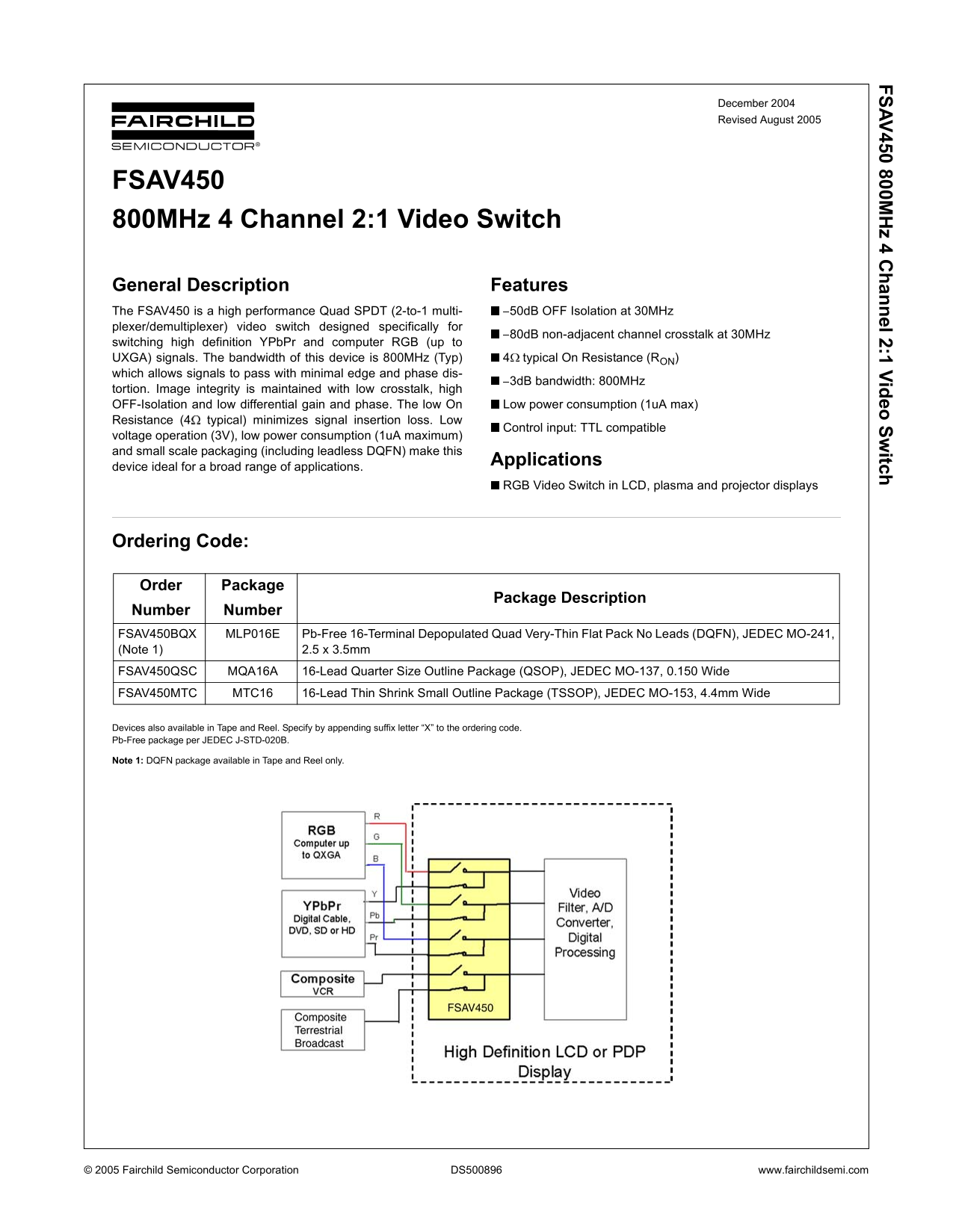

450 800M z 4 C an el 2:1 V id eo itch
December 2004 Revised August 2005
FSAV450 800MHz 4 Channel 2:1 Video Switch
General Description Features The FSAV450 is a high performance Quad SPDT (2-to-1 multi- 50d B OFF Isolation at 30MHz plexer/demultiplexer) video switch designed specifically for
80d B non-adjacent channel crosstalk at 30MHz
switching high definition YPb Pr and computer RGB (up to
UXGA) signals. The bandwidth of this device is 800MHz (Typ) 4 typical On Resistance (RON)
which allows signals to pass with minimal edge and phase dis-
3d B bandwidth: 800MHz
tortion. Image integrity is maintained with low crosstalk, high
OFF-Isolation and low differential gain and phase. The low On Low power consumption (1u A max)
Resistance (4 typical) minimizes signal insertion loss. Low
Control input: TTL compatible
voltage operation (3V), low power consumption (1u A maximum) and small scale packaging (including leadless DQFN) make this
Applications
device ideal for a broad range of applications.
RGB Video Switch in LCD, plasma and projector displays
Ordering Code:
Order Package
Package Description
Number Number FSAV450BQX MLP016E Pb-Free 16-Terminal Depopulated Quad Very-Thin Flat Pack No Leads (DQFN), JEDEC MO-241, (Note 1) 2.5 x 3.5mm FSAV450QSC MQA16A 16-Lead Quarter Size Outline Package (QSOP), JEDEC MO-137, 0.150 Wide FSAV450MTC MTC16 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Devices also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering code. Pb-Free package per JEDEC J-STD-020B.
Note 1: DQFN package available in Tape and Reel only.
© 2005 Fairchild Semiconductor Corporation DS500896 www.fairchildsemi.com
