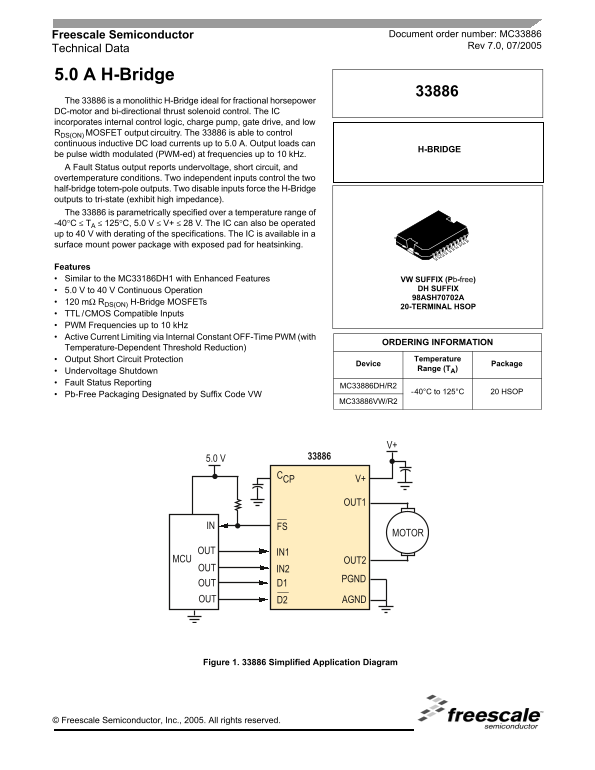

Freescale Semiconductor 33886 H-Bridge Handbook - 5.0 A User Manual - Page 1

›

Page 1 Text Content

Freescale Semiconductor Document order number: MC33886

Rev 7.0, 07/2005

Technical Data

5.0 A H-Bridge The 33886 is a monolithic H-Bridge ideal for fractional horsepower DC-motor and bi-directional thrust solenoid control. The IC incorporates internal control logic, charge pump, gate drive, and low RDS(ON) MOSFET output circuitry. The 33886 is able to control continuous inductive DC load currents up to 5.0 A. Output loads can

H-BRIDGE

be pulse width modulated (PWM-ed) at frequencies up to 10 k Hz. A Fault Status output reports undervoltage, short circuit, and overtemperature conditions. Two independent inputs control the two half-bridge totem-pole outputs. Two disable inputs force the H-Bridge outputs to tri-state (exhibit high impedance). The 33886 is parametrically specified over a temperature range of -40°C ≤ TA ≤ 125°C, 5.0 V ≤ V+ ≤ 28 V. The IC can also be operated up to 40 V with derating of the specifications. The IC is available in a surface mount power package with exposed pad for heatsinking.

Features Similar to the MC33186DH1 with Enhanced Features VW SUFFIX (Pb-free)

5.0 V to 40 V Continuous Operation DH SUFFIX 98ASH70702A

120 mΩ RDS(ON) H-Bridge MOSFETs

20-TERMINAL HSOP

TTL / CMOS Compatible Inputs PWM Frequencies up to 10 k Hz Active Current Limiting via Internal Constant OFF-Time PWM (with

ORDERING INFORMATION

Temperature-Dependent Threshold Reduction) Output Short Circuit Protection

Device Temperature Package

Range (TA)

Undervoltage Shutdown Fault Status Reporting

MC33886DH/R2

- 40°C to 125°C 20 HSOP

Pb-Free Packaging Designated by Suffix Code VW

MC33886VW/R2

CP V+C

IN FS

MOTOR

OUT IN1 MCU OUT2 OUT IN2

OUT D1 OUT D2 AGND

Figure 1. 33886 Simplified Application Diagram
