Fairchild SB120 - SB1100 Data Handbook
Summary
These Schottky Rectifiers are essential components for reliable power conversion across various demanding applications. Designed for low voltage and high-frequency operation, they ensure stable rectification in environments such as inverters, free wheeling circuits, and DO-41 protective systems. This manual provides comprehensive technical specifications, covering everything from absolute maximum ratings and thermal dissipation profiles to detailed electrical performance curves (forward voltage, reverse current) across a wide operational range of -65 to +125°C. Ideal for power electronics engineers needing high-performance, durable rectifying components.

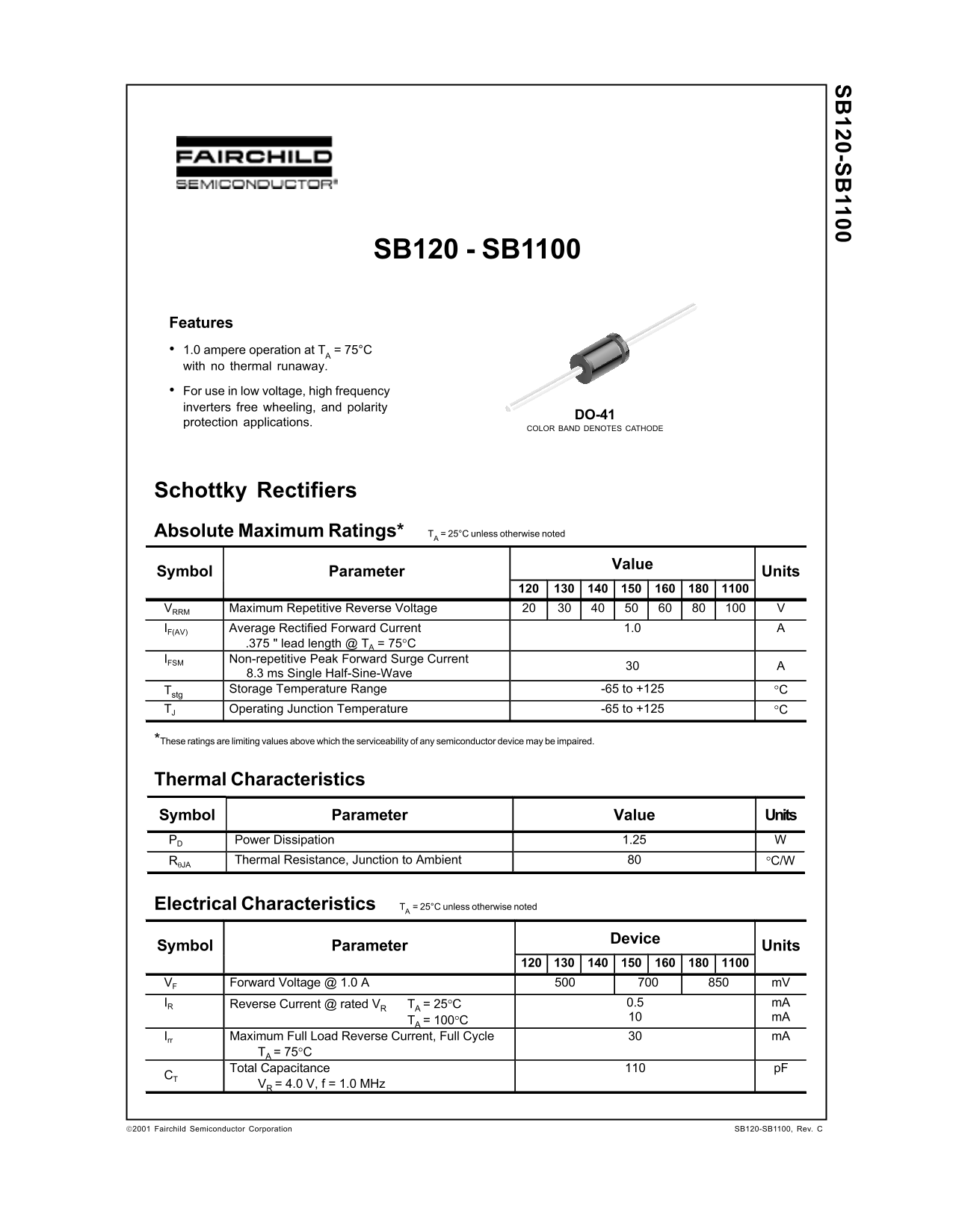

Page 1 Text Content
SB 120-SB
SB120 - SB1100
Features 1.0 ampere operation at TA = 75°C with no thermal runaway. For use in low voltage, high frequency inverters free wheeling, and polarity
DO-41
protection applications.
COLOR BAND DENOTES CATHODE
Schottky Rectifiers Absolute Maximum Ratings* TA = 25°C unless otherwise noted
Value
Symbol Parameter Units 120 130 140 150 160 180 1100 VRRM Maximum Repetitive Reverse Voltage 20 30 40 50 60 80 100 V IF(AV) Average Rectified Forward Current 1.0 A
.375 " lead length @ TA = 75°C
IFSM Non-repetitive Peak Forward Surge Current
8.3 ms Single Half-Sine-Wave 30 A
Tstg Storage Temperature Range -65 to +125 °C TJ Operating Junction Temperature -65 to +125 °C
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics Symbol Parameter Value Units PD Power Dissipation 1.25 W RθJA Thermal Resistance, Junction to Ambient 80 °C/W
Electrical Characteristics TA = 25°C unless otherwise noted
Device
Symbol Parameter Units 120 130 140 150 160 180 1100 VF Forward Voltage @ 1.0 A 500 700 850 m V IR Reverse Current @ rated VR TA = 25°C 0.5 m A
TA = 100°C
Irr Maximum Full Load Reverse Current, Full Cycle 30 m A
TA = 75°C
CT Total Capacitance
VR = 4.0 V, f = 1.0 MHz
SB120-SB1100, Rev. C2001 Fairchild Semiconductor Corporation
