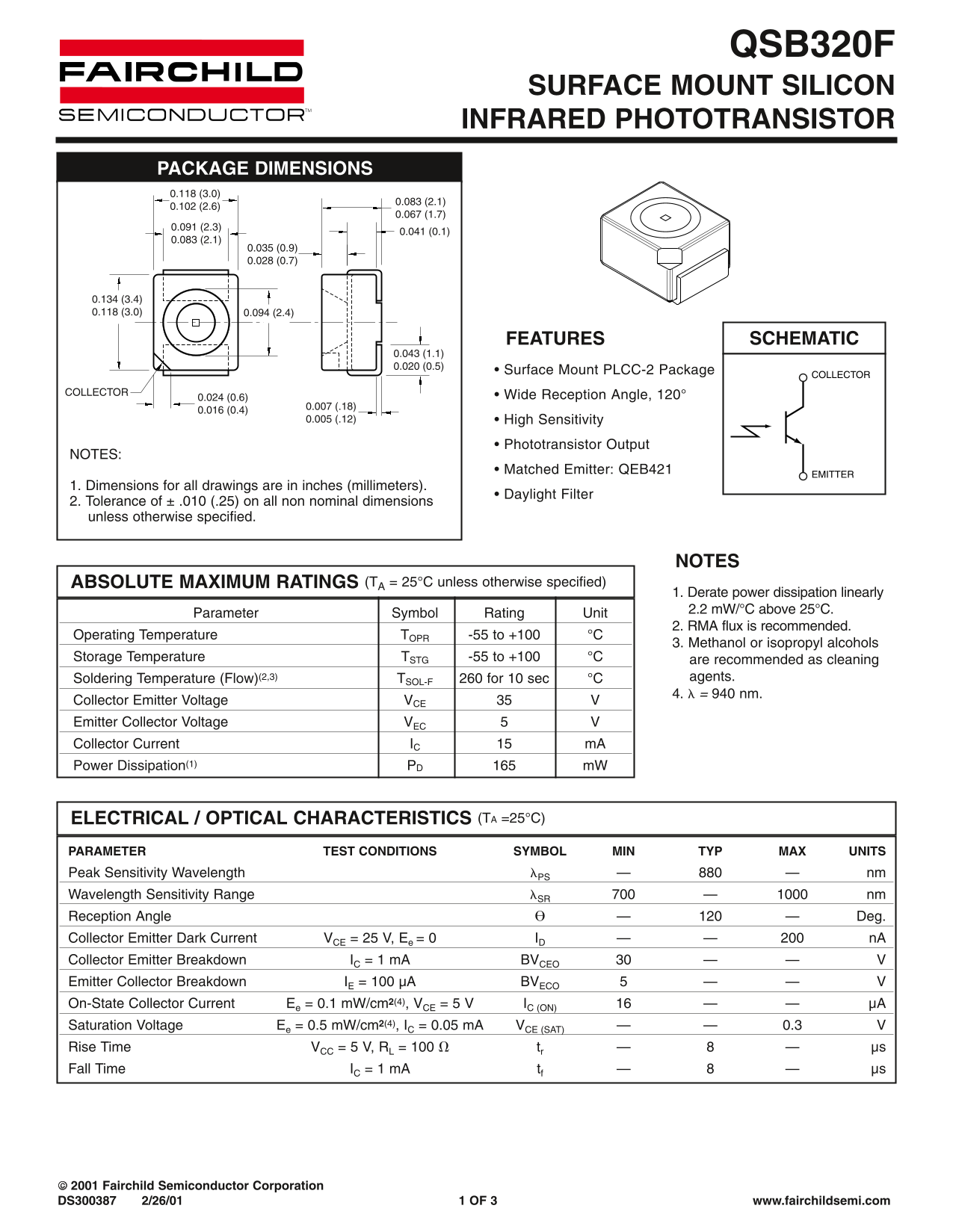

QSB320F
SURFACE MOUNT SILICON INFRARED PHOTOTRANSISTOR
PACKAGE DIMENSIONS 0.118 (3.0)
FEATURES SCHEMATIC
• Surface Mount PLCC-2 Package
COLLECTOR
COLLECTOR • Wide Reception Angle, 120°
0.005 (.12) • High Sensitivity
• Phototransistor Output
NOTES:
• Matched Emitter: QEB421
EMITTER
1. Dimensions for all drawings are in inches (millimeters).
• Daylight Filter
2. Tolerance of ± .010 (.25) on all non nominal dimensions unless otherwise specified.
NOTES
ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise specified)
1. Derate power dissipation linearly 2.2 m W/°C above 25°C.
Parameter Symbol Rating Unit
2. RMA flux is recommended.
Operating Temperature TOPR -55 to +100 °C
3. Methanol or isopropyl alcohols
Storage Temperature TSTG -55 to +100 °C are recommended as cleaning
Soldering Temperature (Flow)(2,3) TSOL-F 260 for 10 sec °C agents. 4. = 940 nm.
Collector Emitter Voltage VCE Emitter Collector Voltage VEC Collector Current IC m A Power Dissipation(1) PD m W
ELECTRICAL / OPTICAL CHARACTERISTICS (TA =25°C)
PARAMETER TEST CONDITIONS SYMBOL MIN TYP MAX UNITS Peak Sensitivity Wavelength PS nm Wavelength Sensitivity Range SR nm Reception Angle Deg. Collector Emitter Dark Current VCE = 25 V, Ee = 0 ID n A Collector Emitter Breakdown IC = 1 m A BVCEO Emitter Collector Breakdown IE = 100 µA BVECO On-State Collector Current Ee = 0.1 m W/cm2(4), VCE = 5 V IC (ON) µA Saturation Voltage Ee = 0.5 m W/cm2(4), IC = 0.05 m A VCE (SAT) 0.3 Rise Time VCC = 5 V, RL = 100 tr µs
Fall Time IC = 1 m A tf µs
