This high-sensitivity QSB320 phototransistor is a surface mount silicon component designed for reliable infrared light detection across 400–1000 nm. Featuring a wide 120° reception angle and optimal performance in optical sensing applications, it is ideal for engineers building robust proximity or light monitoring circuits. The accompanying manual provides comprehensive technical documentation, including detailed electrical characteristics, absolute maximum ratings, and critical performance graphs necessary for confident integration into your next electronic design.

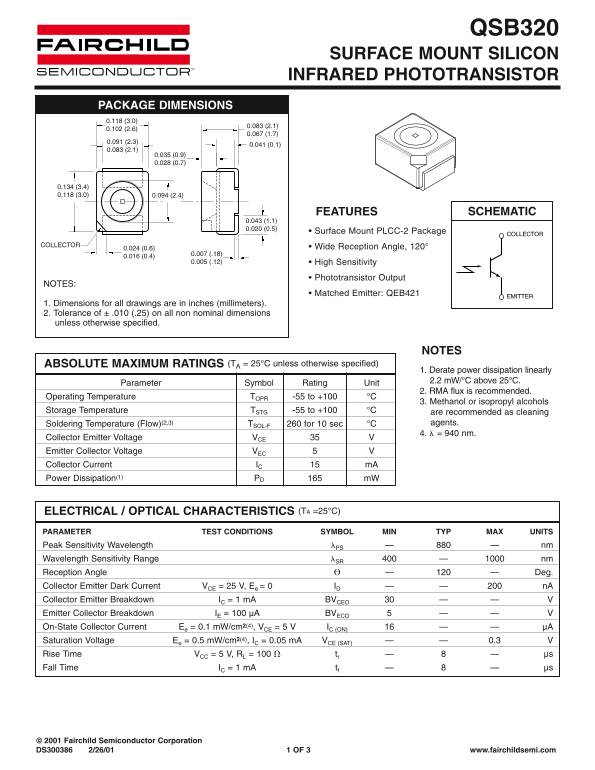

Page 1 Text Content
QSB320
SURFACE MOUNT SILICON INFRARED PHOTOTRANSISTOR
PACKAGE DIMENSIONS 0.118 (3.0)
FEATURES SCHEMATIC
• Surface Mount PLCC-2 Package
COLLECTOR
COLLECTOR • Wide Reception Angle, 120°
0.005 (.12) • High Sensitivity
• Phototransistor Output
NOTES:
• Matched Emitter: QEB421
EMITTER
1. Dimensions for all drawings are in inches (millimeters). 2. Tolerance of ± .010 (.25) on all non nominal dimensions unless otherwise specified.
NOTES
ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise specified)
1. Derate power dissipation linearly 2.2 m W/°C above 25°C.
Parameter Symbol Rating Unit
2. RMA flux is recommended.
Operating Temperature TOPR -55 to +100 °C
3. Methanol or isopropyl alcohols
Storage Temperature TSTG -55 to +100 °C are recommended as cleaning
Soldering Temperature (Flow)(2,3) TSOL-F 260 for 10 sec °C agents. 4. = 940 nm.
Collector Emitter Voltage VCE Emitter Collector Voltage VEC Collector Current IC m A Power Dissipation(1) PD m W
ELECTRICAL / OPTICAL CHARACTERISTICS (TA =25°C)
PARAMETER TEST CONDITIONS SYMBOL MIN TYP MAX UNITS Peak Sensitivity Wavelength PS nm Wavelength Sensitivity Range SR nm Reception Angle Deg. Collector Emitter Dark Current VCE = 25 V, Ee = 0 ID n A Collector Emitter Breakdown IC = 1 m A BVCEO Emitter Collector Breakdown IE = 100 µA BVECO On-State Collector Current Ee = 0.1 m W/cm2(4), VCE = 5 V IC (ON) µA Saturation Voltage Ee = 0.5 m W/cm2(4), IC = 0.05 m A VCE (SAT) 0.3 Rise Time VCC = 5 V, RL = 100 tr µs
Fall Time IC = 1 m A tf µs
2001 Fairchild Semiconductor Corporation DS300386 2/26/01 1 OF 3 www.fairchildsemi.com
Page Summary Contents For Fairchild QSB320 Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 3 |
| File Size | 50.03 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the peak sensitivity wavelength of the QSB320?
The peak sensitivity wavelength is 880 nm.
What matched emitter works with this phototransistor?
The matched emitter is the QEB421.
What is the operating temperature range for the QSB320?
The operating temperature range is -55 to +100 °C.
What is the maximum collector current rating?
The maximum collector current is 15 mA.
