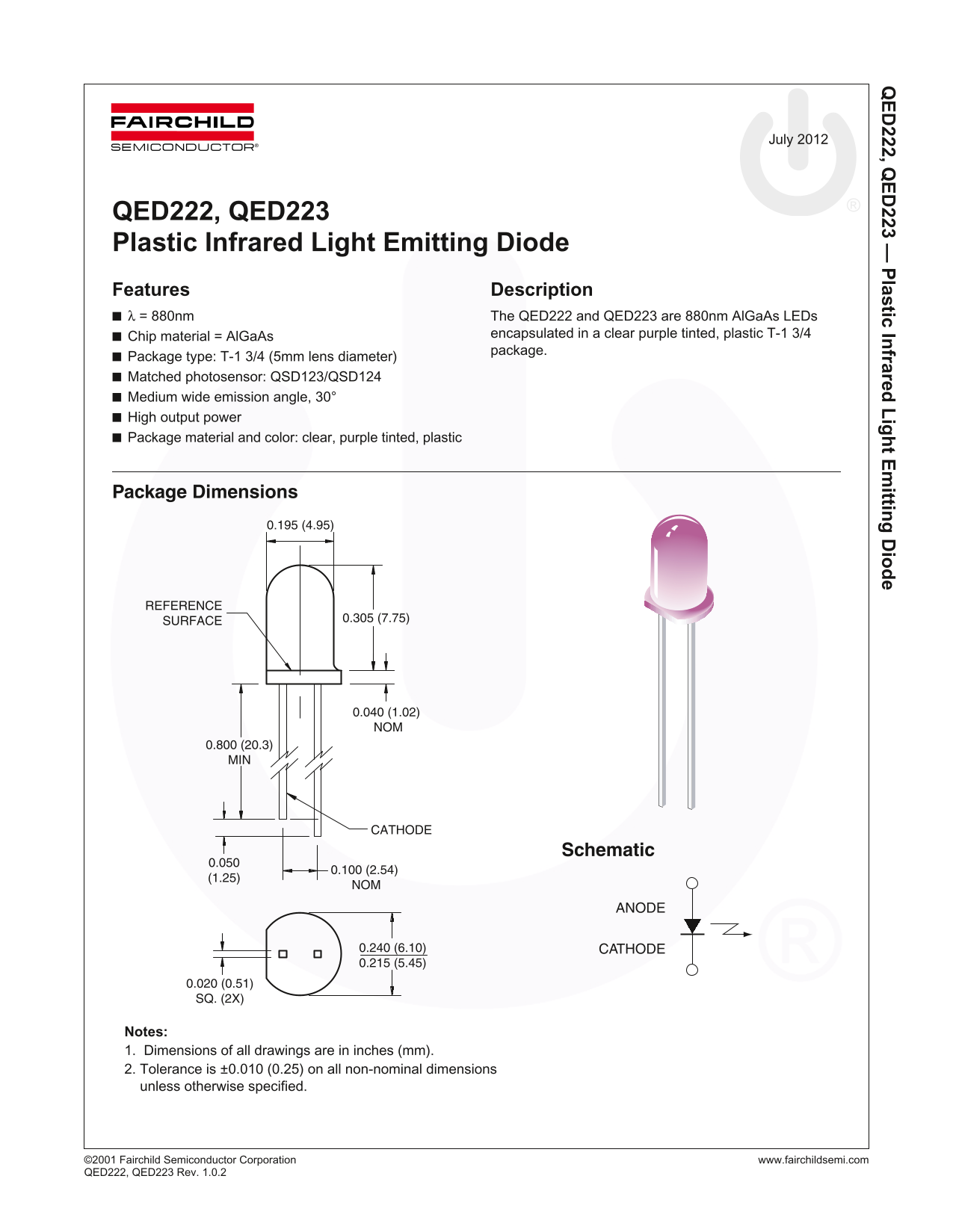

Page 1 Text Content
, Q la tic In fra re ig t E ittin io
July 2012
QED222, QED223 Plastic Infrared Light Emitting Diode Features PACKAGE DIMENSIONS Description = 880nm The QED222 and QED223 are 880nm Al Ga As LEDs
Chip material = Al Ga As encapsulated in a clear purple tinted, plastic T-1 3/4 package.
Package type: T-1 3/4 (5mm lens diameter) Matched photosensor: QSD123/QSD124 Medium wide emission angle, 30° High output power Package material and color: clear, purple tinted, plastic
Package Dimensions
REFERENCE
SURFACE 0.305 (7.75)
0.040 (1.02) NOM
0.800 (20.3) MIN
CATHODE
Schematic
ANODE
0.240 (6.10) CATHODE 0.215 (5.45)
0.020 (0.51) SQ. (2X)
Notes: 1. Dimensions of all drawings are in inches (mm). 2. Tolerance is ±0.010 (0.25) on all non-nominal dimensions unless otherwise specified.
©2001 Fairchild Semiconductor Corporation www.fairchildsemi.com QED222, QED223 Rev. 1.0.2
