A high-reliability 256-bit Serial CMOS EEPROM designed with the advanced MICROWIRE Synchronous Bus, perfect for modern low-power embedded systems. This non-volatile memory device offers extreme data retention and impressive endurance ratings. The accompanying documentation is a comprehensive technical guide for system designers, detailing electrical characteristics, operational parameters (including I/O timings and current draws), available packages, and integration guidelines necessary for integrating the component into professional electronics designs.

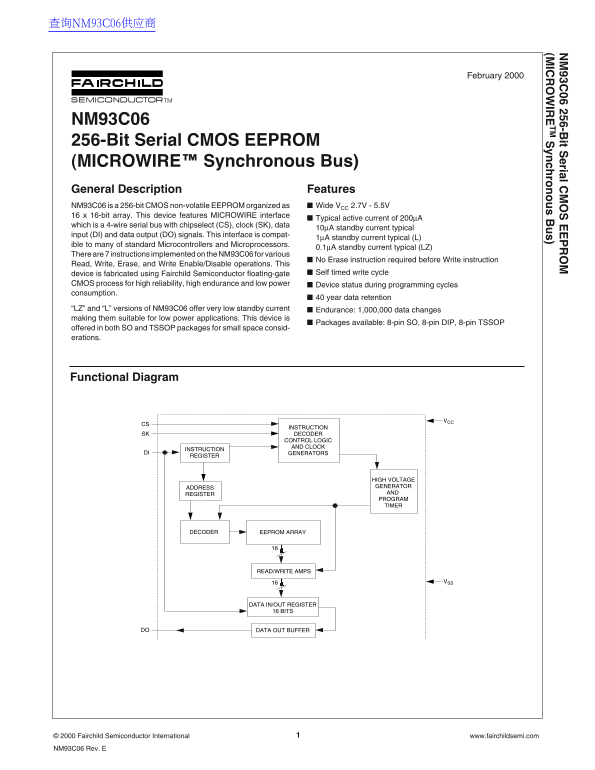

Page 1 Text Content
查询NM93C06供应商 93C 06 256-B it S erial C
(M IC IR yn ch ro s B s)
February 2000
NM93C06 256-Bit Serial CMOS EEPROM (MICROWIRE™ Synchronous Bus) General Description Features NM93C06 is a 256-bit CMOS non-volatile EEPROM organized as Wide VCC 2.7V - 5.5V 16 x 16-bit array. This device features MICROWIRE interface
Typical active current of 200µA
which is a 4-wire serial bus with chipselect (CS), clock (SK), data
10µA standby current typical
input (DI) and data output (DO) signals. This interface is compat-
1µA standby current typical (L)
ible to many of standard Microcontrollers and Microprocessors.
0.1µA standby current typical (LZ)
There are 7 instructions implemented on the NM93C06 for various
No Erase instruction required before Write instruction
Read, Write, Erase, and Write Enable/Disable operations. This
device is fabricated using Fairchild Semiconductor floating-gate Self timed write cycle
CMOS process for high reliability, high endurance and low power Device status during programming cycles consumption.
40 year data retention
“LZ” and “L” versions of NM93C06 offer very low standby current Endurance: 1,000,000 data changes making them suitable for low power applications. This device is
Packages available: 8-pin SO, 8-pin DIP, 8-pin TSSOP
offered in both SO and TSSOP packages for small space consid- erations.
Functional Diagram
INSTRUCTION
SK DECODER
CONTROL LOGIC AND CLOCK
INSTRUCTION
DI GENERATORS
REGISTER
HIGH VOLTAGE ADDRESS GENERATOR REGISTER AND PROGRAM TIMER
DECODER EEPROM ARRAY
READ/WRITE AMPS
DATA IN/OUT REGISTER
16 BITS
DO DATA OUT BUFFER
© 2000 Fairchild Semiconductor International www.fairchildsemi.com NM93C06 Rev. E
Page Summary Contents For Fairchild NM93C06 Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 13 |
| File Size | 106.18 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating voltage range for the EEPROM?
The recommended power supply voltage (VCC) ranges from 2.7V to 5.5V, depending on the specific version (L or LZ).
How reliable is this device for frequent writes?
It has an endurance of 1,000,000 data changes, making it suitable for low power applications.
What communication bus does the NM93C06 use?
It features a MICROWIRE synchronous bus with a 4-wire serial interface (CS, SK, DI, DO).
Does the EEPROM require prior instructions before being programmed?
No; Read, Write, Erase, and Write Enable/Disable operations do not require an Erase instruction first.
