The NC7WZ132 is an advanced, ultra high-speed dual 2-input NAND gate designed for complex digital electronics. Featuring Schmitt trigger inputs and a broad operating voltage range of 1.65V to 5.5V, it provides excellent noise immunity and low power dissipation. This manual serves as comprehensive technical documentation for hardware designers and engineers, detailing absolute maximum ratings, electrical characteristics, available surface mount packages (including MicroPak), and functional guidelines required for optimal integration into high-performance circuit designs.

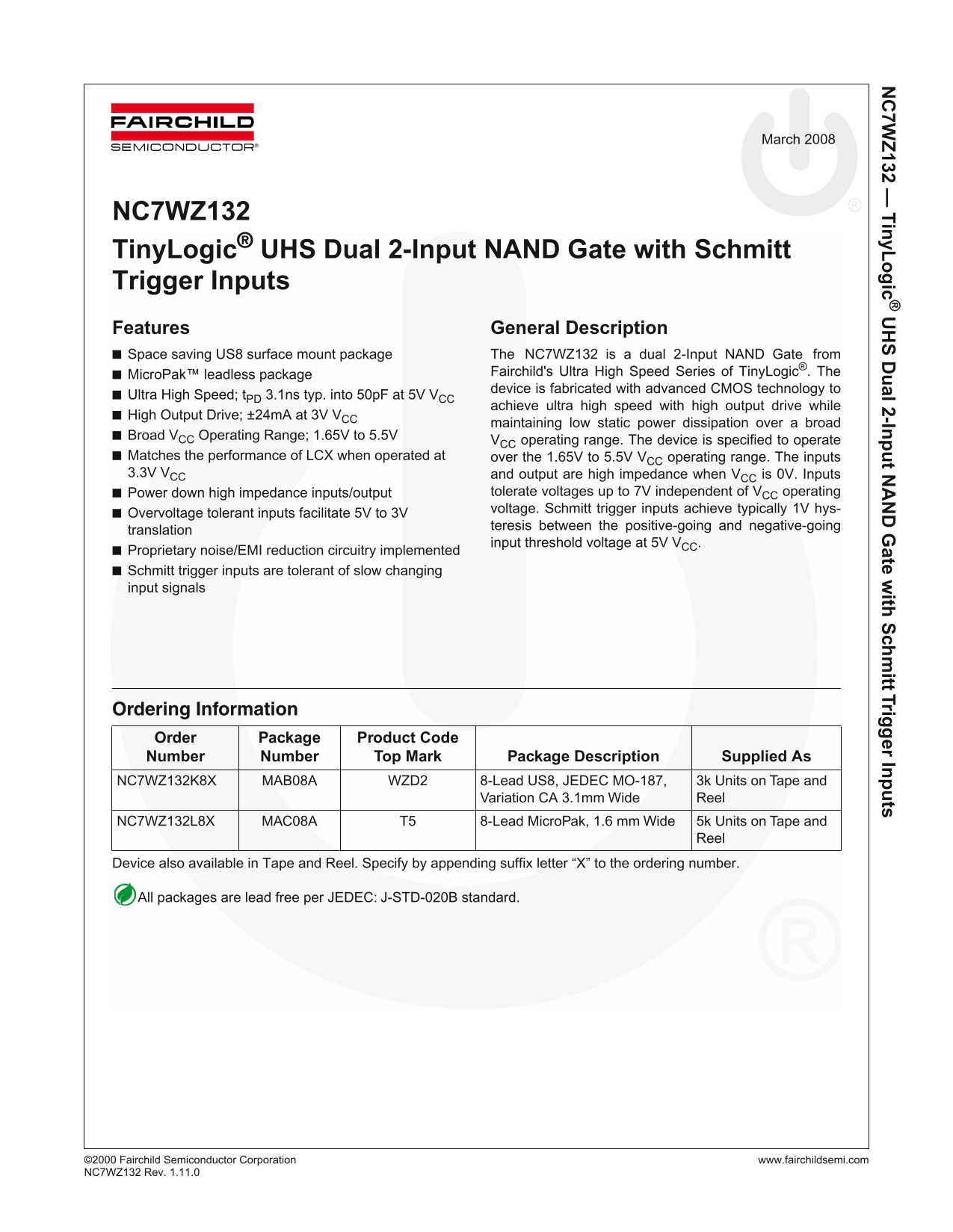

Page 1 Text Content
7W 132 — iny L ic al 2-In t N ate w ith ch itt Trig er In ts
March 2008
NC7WZ132 Tiny Logic® UHS Dual 2-Input NAND Gate with Schmitt Trigger Inputs Features General Description Space saving US8 surface mount package The NC7WZ132 is a dual 2-Input NAND Gate from
Micro Pak™ leadless package Fairchild's Ultra High Speed Series of Tiny Logic®. The device is fabricated with advanced CMOS technology to
Ultra High Speed; t PD 3.1ns typ. into 50p F at 5V VCC
achieve ultra high speed with high output drive while
High Output Drive; ±24m A at 3V VCC
maintaining low static power dissipation over a broad
Broad VCC Operating Range; 1.65V to 5.5V
VCC operating range. The device is specified to operate
Matches the performance of LCX when operated at over the 1.65V to 5.5V VCC operating range. The inputs 3.3V VCC and output are high impedance when VCC is 0V. Inputs
Power down high impedance inputs/output tolerate voltages up to 7V independent of VCC operating voltage. Schmitt trigger inputs achieve typically 1V hys-
Overvoltage tolerant inputs facilitate 5V to 3V
teresis between the positive-going and negative-going
translation
input threshold voltage at 5V VCC.
Proprietary noise/EMI reduction circuitry implemented Schmitt trigger inputs are tolerant of slow changing input signals
Ordering Information Order Package Product Code Number Number Top Mark Package Description Supplied As NC7WZ132K8X MAB08A WZD2 8-Lead US8, JEDEC MO-187, 3k Units on Tape and
Variation CA 3.1mm Wide Reel
NC7WZ132L8X MAC08A T5 8-Lead Micro Pak, 1.6 mm Wide 5k Units on Tape and
Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.
All packages are lead free per JEDEC: J-STD-020B standard.
©2 000 Fairchild Semiconductor Corporation www.fairchildsemi.com NC 7WZ132 Rev. 1.11.0
Page Summary Contents For Fairchild NC7WZ132 Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 10 |
| File Size | 703.07 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended voltage operating range for this device?
The device recommends operating between 1.65V and 5.5V CC.
What makes the Schmitt Trigger inputs useful?
They are tolerant of slow changing input signals and eliminate hysteresis.
Is there a life support warning for this product?
Yes, Fairchild's products are not authorized for use as critical components in life support devices without express written approval.
What types of packaging are available for the NC7WZ132?
It is supplied in US8 surface mount and MicroPak™ leadless packages on both tape/reel.
