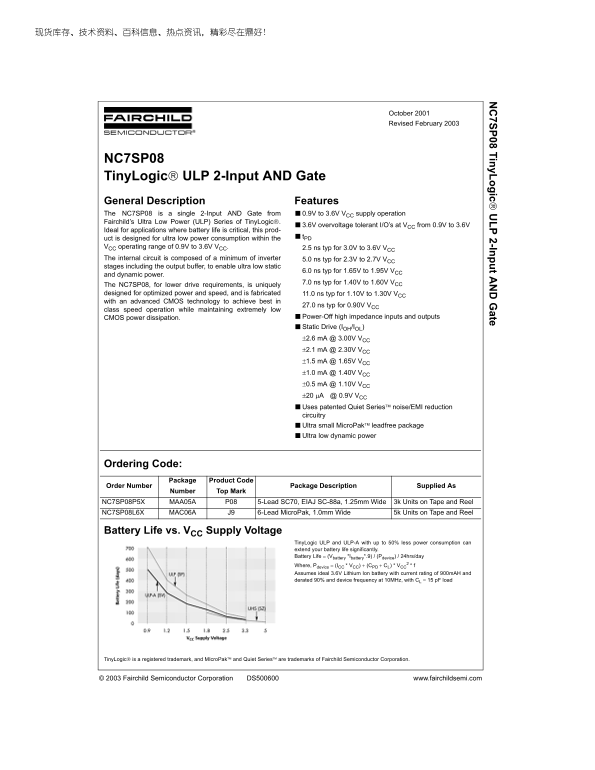

7S 08 Tin y L ic 2-In t A ate

October 2001 Revised February 2003

NC7SP08 Tiny Logic ULP 2-Input AND Gate General Description Features The NC7SP08 is a single 2-Input AND Gate from ■0.9V to 3.6V VCC supply operation Fairchild’s Ultra Low Power (ULP) Series of Tiny Logic.

■3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V

Ideal for applications where battery life is critical, this prod-

uct is designed for ultra low power consumption within the t PD

VCC operating range of 0.9V to 3.6V VCC. 2.5 ns typ for 3.0V to 3.6V VCC The internal circuit is composed of a minimum of inverter 5.0 ns typ for 2.3V to 2.7V VCC stages including the output buffer, to enable ultra low static

6.0 ns typ for 1.65V to 1.95V VCC

and dynamic power.

7.0 ns typ for 1.40V to 1.60V VCC

The NC7SP08, for lower drive requirements, is uniquely designed for optimized power and speed, and is fabricated 11.0 ns typ for 1.10V to 1.30V VCC with an advanced CMOS technology to achieve best in

27.0 ns typ for 0.90V VCC

class speed operation while maintaining extremely low

CMOS power dissipation. ■Power-Off high impedance inputs and outputs ■Static Drive (IOH/IOL) ±2.6 m A @ 3.00V VCC ±2.1 m A @ 2.30V VCC ±1.5 m A @ 1.65V VCC ±1.0 m A @ 1.40V VCC ±0.5 m A @ 1.10V VCC ±20 µA @ 0.9V VCC ■Uses patented Quiet Series noise/EMI reduction circuitry ■Ultra small Micro Pak leadfree package ■Ultra low dynamic power

Ordering Code:

Package Product Code

Order Number Package Description Supplied As

Number Top Mark

NC7SP08P5X MAA05A P08 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3k Units on Tape and Reel NC7SP08L6X MAC06A J9 6-Lead Micro Pak, 1.0mm Wide 5k Units on Tape and Reel

Battery Life vs. VCC Supply Voltage

Tiny Logic ULP and ULP-A with up to 50% less power consumption can extend your battery life significantly. Battery Life = (Vbattery *Ibattery*.9) / (Pdevice) / 24hrs/day

Where, Pdevice = (ICC * VCC) + (CPD + CL) * VCC Assumes ideal 3.6V Lithium Ion battery with current rating of 900m AH and derated 90% and device frequency at 10MHz, with CL = 15 p F load

Tiny Logic is a registered trademark, and MIcro Pak and Quiet Series are trademarks of Fairchild Semiconductor Corporation.

© 2003 Fairchild Semiconductor Corporation DS500600 www.fairchildsemi.com

Page Summary Contents For Fairchild NC7SP08 Data Handbook

Page 1 7S 08 Tin y L ic 2-In t A ate October 2001 Revised February 2003 NC7SP08 Tiny Logic ULP 2-Input AND Gate General Description Features The NC7SP08 is a single 2-Input AND Gate from ■0.9V to 3.6V VCC ...
Page 2 Logic Symbol Connection Diagrams IEEE/IEC Pin Assignments for SC70 Pin Descriptions Pin Names Description A, B Input (Top View) Output NC No Connect Pad Assignments for Micro Pak Function Table Y = AB...
Page 3 7S Absolute Maximum Ratings(Note 1) Recommended Operating Conditions (Note 3) Supply Voltage (VCC) −0.5V to +4.6V DC Input Voltage (VIN) −0.5V to +4.6V Supply Voltage 0.9V to 3.6V DC Output Voltage (V...
Page 4 DC Electrical Characteristics (Continued) VCC TA = +25°C TA = −40°C to +85°C Symbol Parameter Units Conditions (V) Min Max Min Max VOL LOW Level 0.90 0.1 0.1 Output Voltage 1.10 ≤ VCC ≤ 1.30 0.1 0.1 1...
Page 5 7S AC Loading and Waveforms FIGURE 1. AC Test Circuit FIGURE 2. AC Waveforms Symbol Vmi 1.5V VCC/2 VCC/2 VCC/2 VCC/2 VCC/2 Vmo 1.5V VCC/2 VCC/2 VCC/2 VCC/2 VCC/2 www.fairchildsemi.com
Page 6 Tape and Reel Specification TAPE FORMAT for SC70 Package Tape Number Cavity Cover Tape Designator Section Cavities Status Status Leader (Start End) 125 (typ) Empty Sealed P5X Carrier Filled Sealed Tra...
Page 7 7S Tape and Reel Specification (Continued) TAPE FORMAT for Mirco Pak Package Tape Number Cavity Cover Tape Designator Section Cavities Status Status Leader (Start End) 125 (typ) Empty Sealed L6X Carri...
Page 8 Physical Dimensions inches (millimeters) unless otherwise noted 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide Package Number MAA05A www.fairchildsemi.com
Page 9 7S 08 Tin y L ic 2-In t A ate Physical Dimensions inches (millimeters) unless otherwise noted (Continued) 6-Lead Micro Pak, 1.0mm Wide Package Number MAC06A Fairchild does not assume any responsibili...
