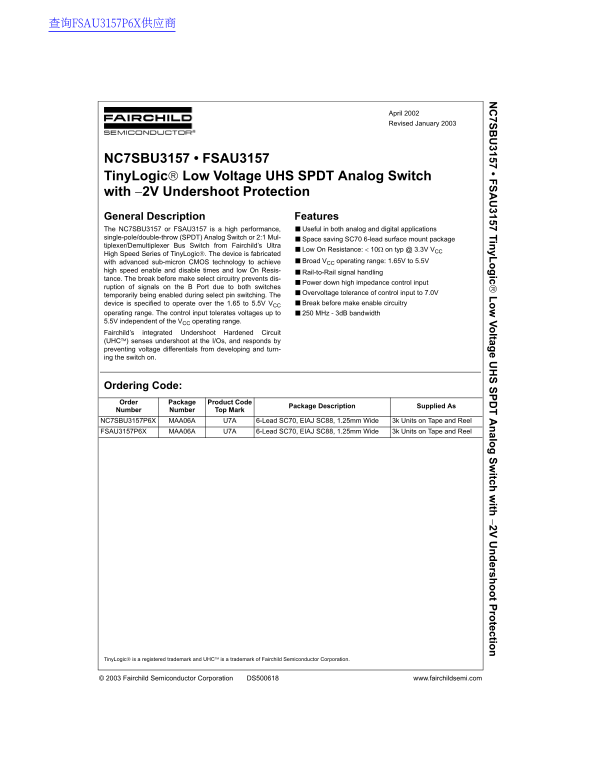

7S 3157 • F 3157 Tin y L ic Vo ltag e U alo itch ith −2V ersh t P ro tectio

April 2002 Revised January 2003

NC7SBU3157 • FSAU3157 Tiny Logic Low Voltage UHS SPDT Analog Switch with −2V Undershoot Protection General Description Features The NC7SBU3157 or FSAU3157 is a high performance, ■Useful in both analog and digital applications single-pole/double-throw (SPDT) Analog Switch or 2:1 Mul- ■Space saving SC70 6-lead surface mount package tiplexer/Demultiplexer Bus Switch from Fairchild’s Ultra

■Low On Resistance: < 10Ω on typ @ 3.3V VCC

High Speed Series of Tiny Logic. The device is fabricated

with advanced sub-micron CMOS technology to achieve ■Broad VCC operating range: 1.65V to 5.5V

high speed enable and disable times and low On Resis-

■Rail-to-Rail signal handling

tance. The break before make select circuitry prevents dis-

■Power down high impedance control input

ruption of signals on the B Port due to both switches

■Overvoltage tolerance of control input to 7.0V

temporarily being enabled during select pin switching. The

device is specified to operate over the 1.65 to 5.5V VCC ■Break before make enable circuitry

operating range. The control input tolerates voltages up to ■250 MHz - 3d B bandwidth 5.5V independent of the VCC operating range. Fairchild’s integrated Undershoot Hardened Circuit (UHC) senses undershoot at the I/Os, and responds by preventing voltage differentials from developing and turn- ing the switch on.

Ordering Code: Order Package Product Code

Package Description Supplied As

Number Number Top Mark NC7SBU3157P6X MAA06A U7A 6-Lead SC70, EIAJ SC88, 1.25mm Wide 3k Units on Tape and Reel FSAU3157P6X MAA06A U7A 6-Lead SC70, EIAJ SC88, 1.25mm Wide 3k Units on Tape and Reel

Tiny Logic is a registered trademark and UHC is a trademark of Fairchild Semiconductor Corporation.

© 2003 Fairchild Semiconductor Corporation DS500618 www.fairchildsemi.com
