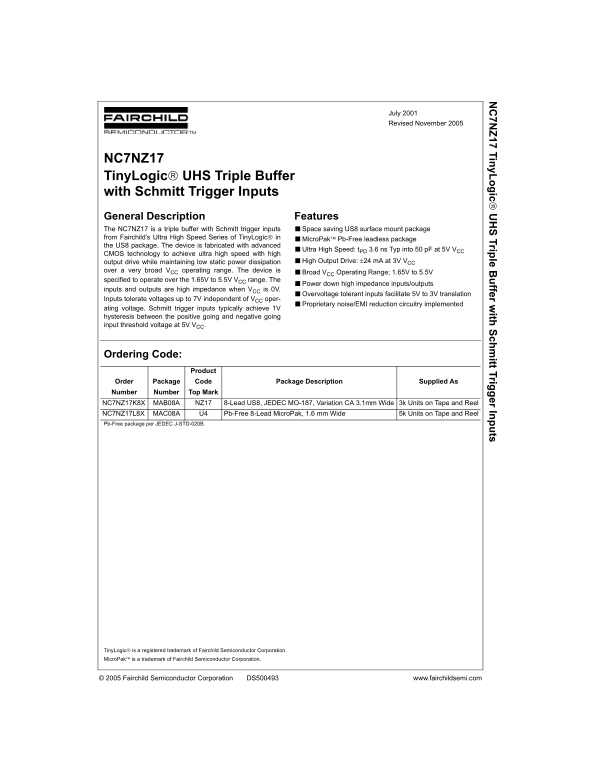

Fairchild NC7NZ17 Data Handbook

7N 17 Tin y L ic Trip le B ffer w ith ch itt Trig er In ts

July 2001 Revised November 2005

NC7NZ17 Tiny Logic UHS Triple Buffer with Schmitt Trigger Inputs General Description Features The NC7NZ17 is a triple buffer with Schmitt trigger inputs ■Space saving US8 surface mount package from Fairchild’s Ultra High Speed Series of Tiny Logic in ■Micro Pak Pb-Free leadless package the US8 package. The device is fabricated with advanced

■Ultra High Speed: t PD 3.6 ns Typ into 50 p F at 5V VCC

CMOS technology to achieve ultra high speed with high

output drive while maintaining low static power dissipation ■High Output Drive: ±24 m A at 3V VCC

over a very broad VCC operating range. The device is

■Broad VCC Operating Range; 1.65V to 5.5V

specified to operate over the 1.65V to 5.5V VCC range. The

■Power down high impedance inputs/outputs

inputs and outputs are high impedance when VCC is 0V.

■Overvoltage tolerant inputs facilitate 5V to 3V translation

Inputs tolerate voltages up to 7V independent of VCC oper-

■Proprietary noise/EMI reduction circuitry implemented

ating voltage. Schmitt trigger inputs typically achieve 1V hysteresis between the positive going and negative going input threshold voltage at 5V VCC.

Ordering Code:

Product Package Code Package Description Supplied As Order

Number Number Top Mark NC7NZ17K8X MAB08A NZ17 8-Lead US8, JEDEC MO-187, Variation CA 3.1mm Wide 3k Units on Tape and Reel NC7NZ17L8X MAC08A U4 Pb-Free 8-Lead Micro Pak, 1.6 mm Wide 5k Units on Tape and Reel Pb-Free package per JEDEC J-STD-020B.

Tiny Logic is a registered trademark of Fairchild Semiconductor Corporation. Micro Pak is a trademark of Fairchild Semiconductor Corporation.

© 2005 Fairchild Semiconductor Corporation DS500493 www.fairchildsemi.com
