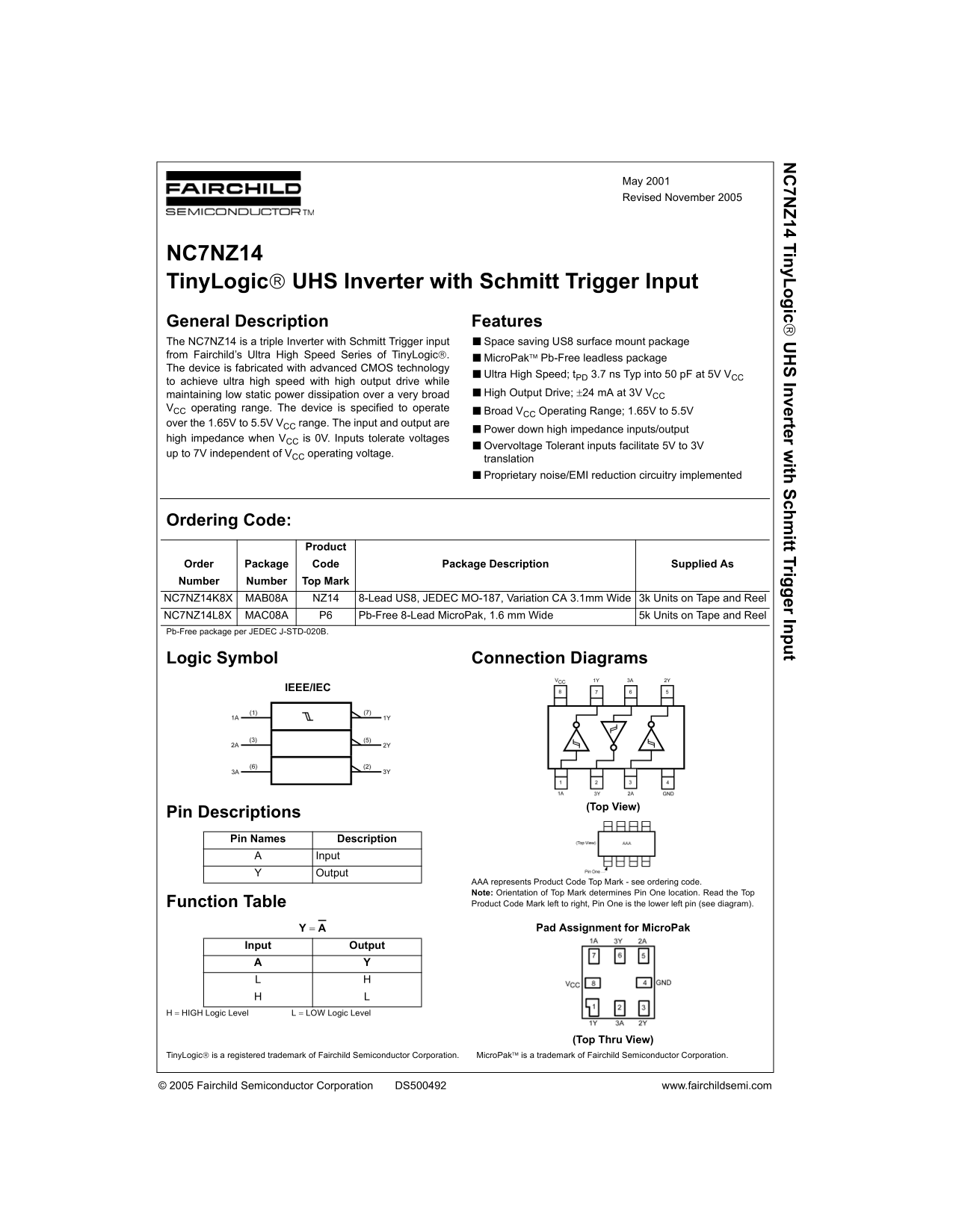

7N 14 Tin y L ic In verter w ith ch itt Trig er In
May 2001 Revised November 2005
NC7NZ14 Tiny Logic UHS Inverter with Schmitt Trigger Input General Description Features The NC7NZ14 is a triple Inverter with Schmitt Trigger input ■Space saving US8 surface mount package from Fairchild’s Ultra High Speed Series of Tiny Logic.
■Micro Pak Pb-Free leadless package
The device is fabricated with advanced CMOS technology
■Ultra High Speed; t PD 3.7 ns Typ into 50 p F at 5V VCC
to achieve ultra high speed with high output drive while
maintaining low static power dissipation over a very broad ■High Output Drive; ±24 m A at 3V VCC
VCC operating range. The device is specified to operate
■Broad VCC Operating Range; 1.65V to 5.5V
over the 1.65V to 5.5V VCC range. The input and output are
■Power down high impedance inputs/output
high impedance when VCC is 0V. Inputs tolerate voltages
■Overvoltage Tolerant inputs facilitate 5V to 3V
up to 7V independent of VCC operating voltage.
translation ■Proprietary noise/EMI reduction circuitry implemented
Ordering Code: Product
Package Code Package Description Supplied As Order
Number Number Top Mark NC7NZ14K8X MAB08A NZ14 8-Lead US8, JEDEC MO-187, Variation CA 3.1mm Wide 3k Units on Tape and Reel NC7NZ14L8X MAC08A P6 Pb-Free 8-Lead Micro Pak, 1.6 mm Wide 5k Units on Tape and Reel Pb-Free package per JEDEC J-STD-020B.
Logic Symbol Connection Diagrams
IEEE/IEC
(Top View)
Pin Descriptions
Pin Names Description
Input Output
AAA represents Product Code Top Mark - see ordering code. Note: Orientation of Top Mark determines Pin One location. Read the Top Function Table Product Code Mark left to right, Pin One is the lower left pin (see diagram).
Y = A Pad Assignment for Micro Pak
Input Output
H = HIGH Logic Level L = LOW Logic Level
(Top Thru View)
Tiny Logic is a registered trademark of Fairchild Semiconductor Corporation. Micro Pak is a trademark of Fairchild Semiconductor Corporation.
© 2005 Fairchild Semiconductor Corporation DS500492 www.fairchildsemi.com
