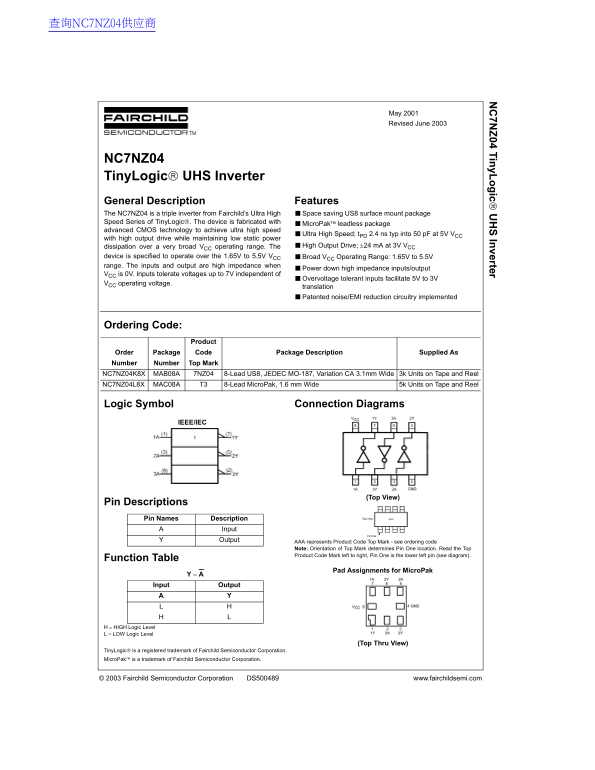

7N 04 Tin y L ic In verter

May 2001 Revised June 2003

NC7NZ04 Tiny Logic UHS Inverter General Description Features The NC7NZ04 is a triple inverter from Fairchild’s Ultra High ■Space saving US8 surface mount package Speed Series of Tiny Logic. The device is fabricated with

■Micro Pak leadless package

advanced CMOS technology to achieve ultra high speed

■Ultra High Speed; t PD 2.4 ns typ into 50 p F at 5V VCC

with high output drive while maintaining low static power

dissipation over a very broad VCC operating range. The ■High Output Drive; ±24 m A at 3V VCC

device is specified to operate over the 1.65V to 5.5V VCC ■Broad VCC Operating Range: 1.65V to 5.5V range. The inputs and output are high impedance when

■Power down high impedance inputs/output

VCC is 0V. Inputs tolerate voltages up to 7V independent of

■Overvoltage tolerant inputs facilitate 5V to 3V

VCC operating voltage.

translation ■Patented noise/EMI reduction circuitry implemented

Ordering Code:

Product Package Code Package Description Supplied As Order

Number Number Top Mark NC7NZ04K8X MAB08A 7NZ04 8-Lead US8, JEDEC MO-187, Variation CA 3.1mm Wide 3k Units on Tape and Reel NC7NZ04L8X MAC08A T3 8-Lead Micro Pak, 1.6 mm Wide 5k Units on Tape and Reel

Logic Symbol Connection Diagrams

IEEE/IEC

(Top View)

Pin Descriptions

Pin Names Description

Input Output AAA represents Product Code Top Mark - see ordering code

Note: Orientation of Top Mark determines Pin One location. Read the Top Product Code Mark left to right, Pin One is the lower left pin (see diagram).

Function Table

Pad Assignments for Micro Pak

Input Output

H = HIGH Logic Level L = LOW Logic Level

(Top Thru View)

Tiny Logic is a registered trademark of Fairchild Semiconductor Corporation. Micro Pak is a trademark of Fairchild Semiconductor Corporation.

© 2003 Fairchild Semiconductor Corporation DS500489 www.fairchildsemi.com
