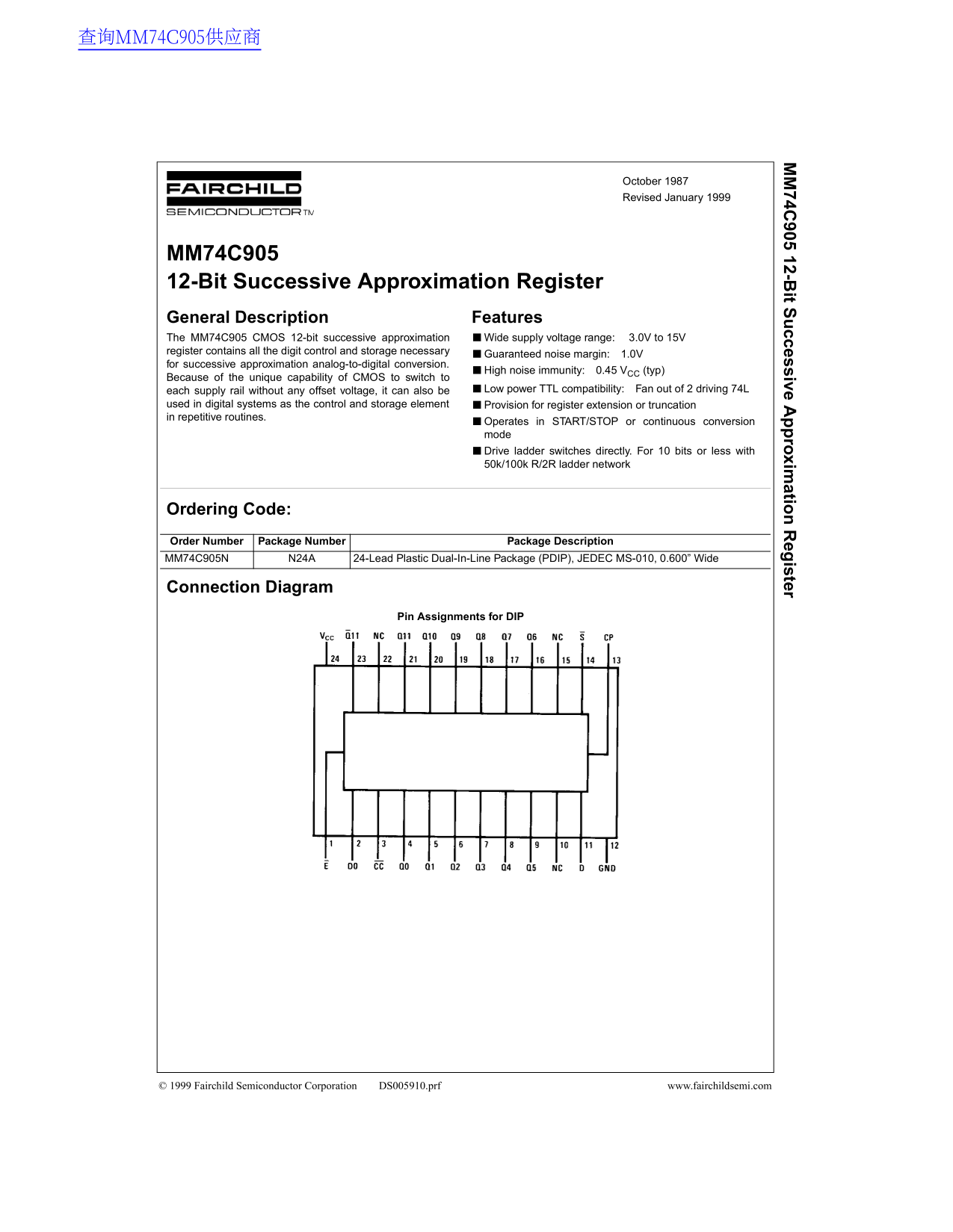

Page 1 Text Content
查询MM74C905供应商
74C 905 12-B it S ccessive A roxim atio eg ister
October 1987 Revised January 1999
MM74C905 12-Bit Successive Approximation Register General Description Features The MM74C905 CMOS 12-bit successive approximation Wide supply voltage range: 3.0V to 15V register contains all the digit control and storage necessary
Guaranteed noise margin: 1.0V
for successive approximation analog-to-digital conversion.
High noise immunity: 0.45 VCC (typ)
Because of the unique capability of CMOS to switch to
each supply rail without any offset voltage, it can also be Low power TTL compatibility: Fan out of 2 driving 74L
used in digital systems as the control and storage element Provision for register extension or truncation in repetitive routines.
Operates in START/STOP or continuous conversion mode Drive ladder switches directly. For 10 bits or less with 50k/100k R/2R ladder network
Ordering Code: Order Number Package Number Package Description MM74C905N N24A 24-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-010, 0.600” Wide
Connection Diagram
Pin Assignments for DIP
© 1999 Fairchild Semiconductor Corporation DS005910.prf www.fairchildsemi.com
