These programmable synchronous counters are essential integrated circuits for electronic designers needing reliable counting logic. The MM74C192 (BCD) and MM74C193 (Binary) offer synchronized up/down counting, featuring cascadeable carry and borrow outputs, broad supply voltage capability, and high noise immunity. This technical documentation provides comprehensive data on electrical characteristics, timing parameters, and packaging options for seamless integration into your digital systems. Ideal for hardware developers building robust digital frequency or state counters.

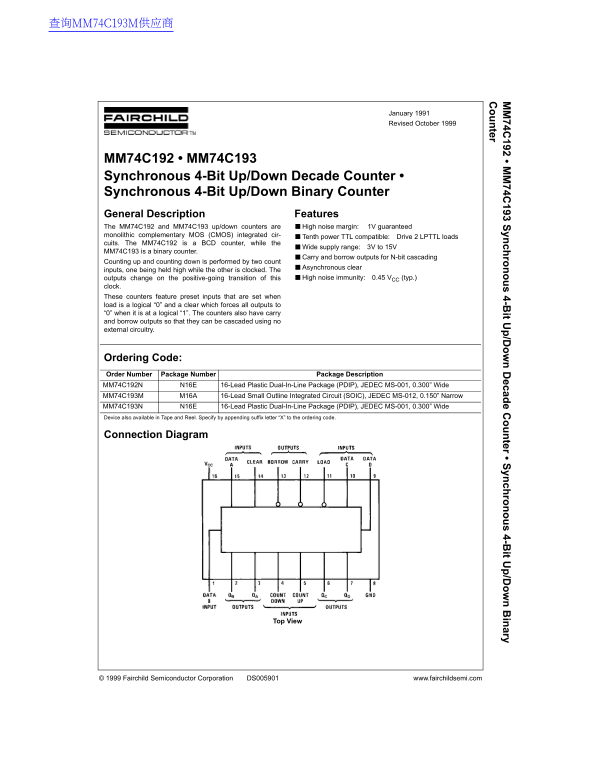

Page 1 Text Content
查询MM74C193M供应商
74C 192 • M 74C 193 S yn ch ro s 4-B it U /D ecad e C ter • S yn ch ro s 4-B it U /D in ary ter
January 1991 Revised October 1999
MM74C192 • MM74C193 Synchronous 4-Bit Up/Down Decade Counter • Synchronous 4-Bit Up/Down Binary Counter General Description Features The MM74C192 and MM74C193 up/down counters are High noise margin: 1V guaranteed monolithic complementary MOS (CMOS) integrated cir- Tenth power TTL compatible: Drive 2 LPTTL loads cuits. The MM74C192 is a BCD counter, while the
Wide supply range: 3V to 15V
MM74C193 is a binary counter.
Carry and borrow outputs for N-bit cascading
Counting up and counting down is performed by two count
Asynchronous clear
inputs, one being held high while the other is clocked. The
outputs change on the positive-going transition of this High noise immunity: 0.45 VCC (typ.)
clock. These counters feature preset inputs that are set when load is a logical “0” and a clear which forces all outputs to “0” when it is at a logical “1”. The counters also have carry and borrow outputs so that they can be cascaded using no external circuitry.
Ordering Code: Order Number Package Number Package Description MM74C192N N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide MM74C193M M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow MM74C193N N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering code.
Connection Diagram
Top View
© 1999 Fairchild Semiconductor Corporation DS005901 www.fairchildsemi.com
Page Summary Contents For Fairchild MM74C192 MM74C193 Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 6 |
| File Size | 63.85 KB |
| Published | June 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of counters are the MM74C192 and MM74C193?
The MM74C192 is a BCD counter, and the MM74C193 is a binary counter.
Can these counters be connected together (cascaded)?
Yes, they have carry and borrow outputs allowing for cascading without external circuitry.
What are the operating voltage parameters?
The device operates within a wide supply range of 3V to 15V. The absolute maximum voltage is 18V.
What environment conditions can these chips withstand?
They support an operating temperature range of -40°C to +85°C, and a storage temperature range of -65°C to +150°C.
