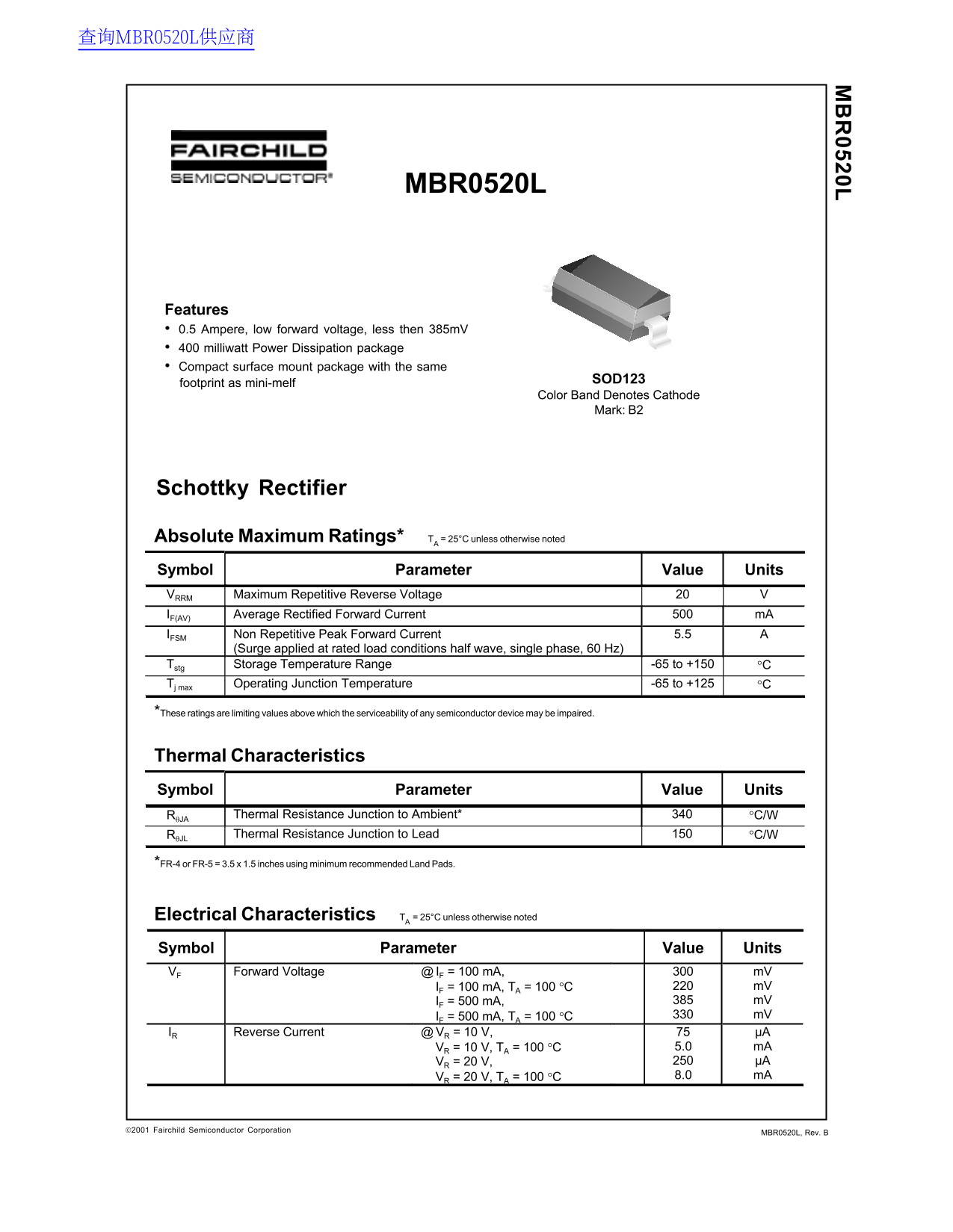

Fairchild MBR0520L Data Handbook

查询MBR0520L供应商

MBR0520L

Features 0.5 Ampere, low forward voltage, less then 385m V 400 milliwatt Power Dissipation package Compact surface mount package with the same

SOD123

footprint as mini-melf

Color Band Denotes Mark: B4 ark: 2 Color Band Denotes Cathode Cathode Mark: B2 Mark: B2

Actual Size

Schottky Rectifier

Absolute Maximum Ratings* TA = 25°C unless otherwise noted Symbol Parameter Value Units VRRM Maximum Repetitive Reverse Voltage 20 V IF(AV) Average Rectified Forward Current 500 m A IFSM Non Repetitive Peak Forward Current 5.5 A

(Surge applied at rated load conditions half wave, single phase, 60 Hz)

Tstg Storage Temperature Range -65 to +150 °C Tj max Operating Junction Temperature -65 to +125 °C

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

Thermal Characteristics Symbol Parameter Value Units RθJA Thermal Resistance Junction to Ambient* 340 °C/W RθJL Thermal Resistance Junction to Lead 150 °C/W *FR-4 or FR-5 = 3.5 x 1.5 inches using minimum recommended Land Pads.

Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Value Units VF Forward Voltage @ IF = 100 m A, m V

IF = 100 m A, TA = 100 °C

IF = 500 m A,

IF = 500 m A, TA = 100 °C

IR Reverse Current @ VR = 10 V, µA

VR = 10 V, TA = 100 °C

VR = 20 V,

VR = 20 V, TA = 100 °C

2001 Fairchild Semiconductor Corporation MBR0520L, Rev. B
