Fairchild KSB564A Data Handbook
Summary
The KSB564A is a high-performance PNP Epitaxial Silicon Transistor engineered for use as an audio frequency power amplifier, complementing the KSD471A pair. This comprehensive manual provides detailed technical documentation covering absolute maximum ratings, electrical characteristics, and essential operational curves (such as current gain and saturation voltage). It serves as a vital resource for electronics engineers and circuit designers who require reliable performance and specifications for building circuits that depend on stable power amplification in the TO-92 package format.
Page 1 Text Content
查询KSB564A供应商
SB 564A
KSB564A

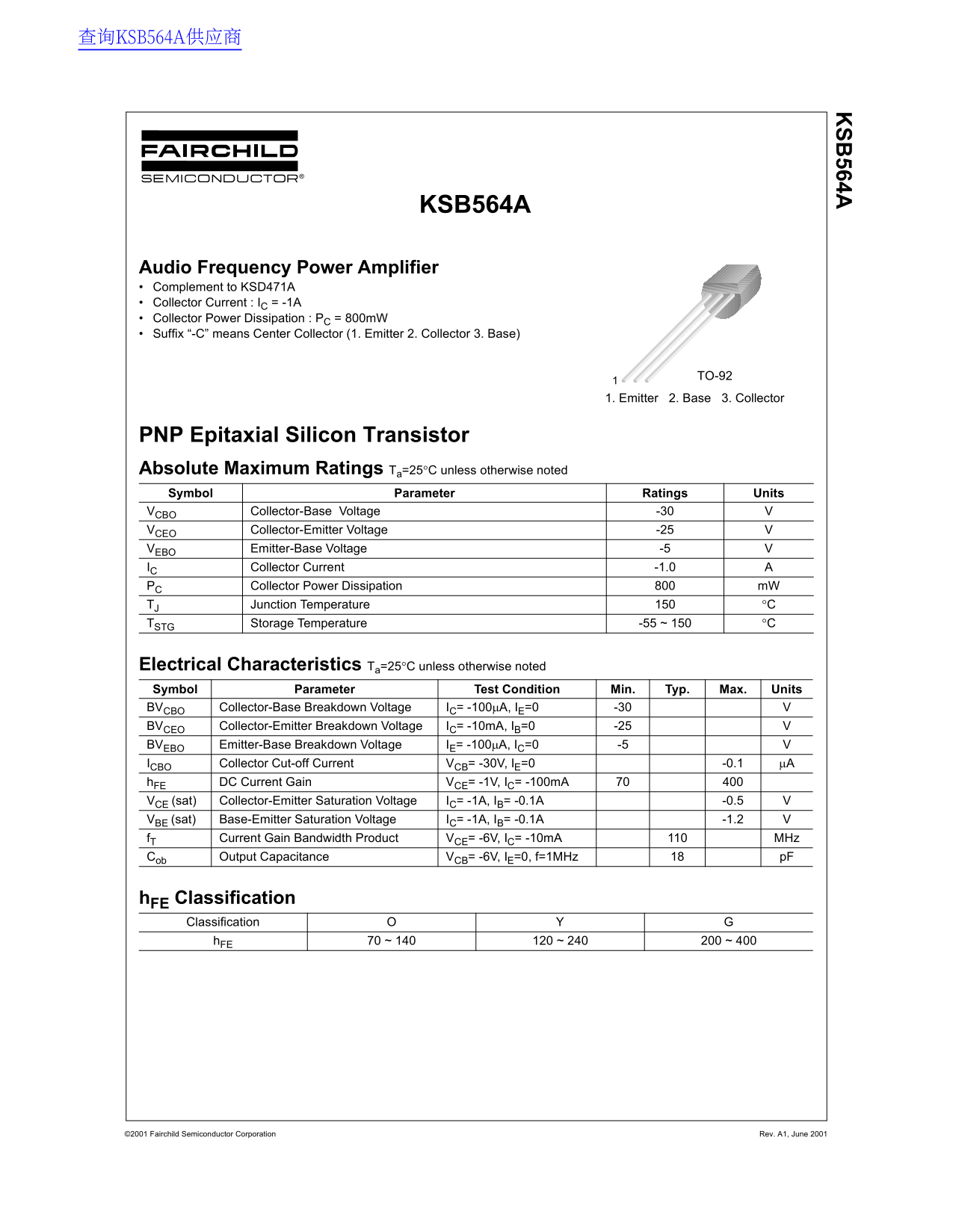

Audio Frequency Power Amplifier Complement to KSD471A Collector Current : IC = -1A Collector Power Dissipation : PC = 800m W Suffix “-C” means Center Collector (1. Emitter 2. Collector 3. Base)
TO-921
1. Emitter 2. Base 3. Collector
PNP Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol Parameter Ratings Units VCBO Collector-Base Voltage -30
VCEO Collector-Emitter Voltage -25 VEBO Emitter-Base Voltage -5 IC Collector Current -1.0 PC Collector Power Dissipation m W
TJ Junction Temperature °C
TSTG Storage Temperature -55 ~ 150 °C
Electrical Characteristics Ta=25°C unless otherwise noted Symbol Parameter Test Condition Min. Typ. Max. Units BVCBO Collector-Base Breakdown Voltage IC= -100µA, IE=0 -30
BVCEO Collector-Emitter Breakdown Voltage IC= -10m A, IB=0 -25
BVEBO Emitter-Base Breakdown Voltage IE= -100µA, IC=0 -5
ICBO Collector Cut-off Current VCB= -30V, IE=0 -0.1 µA h FE DC Current Gain VCE= -1V, IC= -100m A VCE (sat) Collector-Emitter Saturation Voltage IC= -1A, IB= -0.1A -0.5 VBE (sat) Base-Emitter Saturation Voltage IC= -1A, IB= -0.1A -1.2 f T Current Gain Bandwidth Product VCE= -6V, IC= -10m A MHz Cob Output Capacitance VCB= -6V, IE=0, f=1MHz p F
h FE Classification Classification
h FE 70 ~ 140 120 ~ 240 200 ~ 400
©2001 Fairchild Semiconductor Corporation Rev. A1, June 2001
