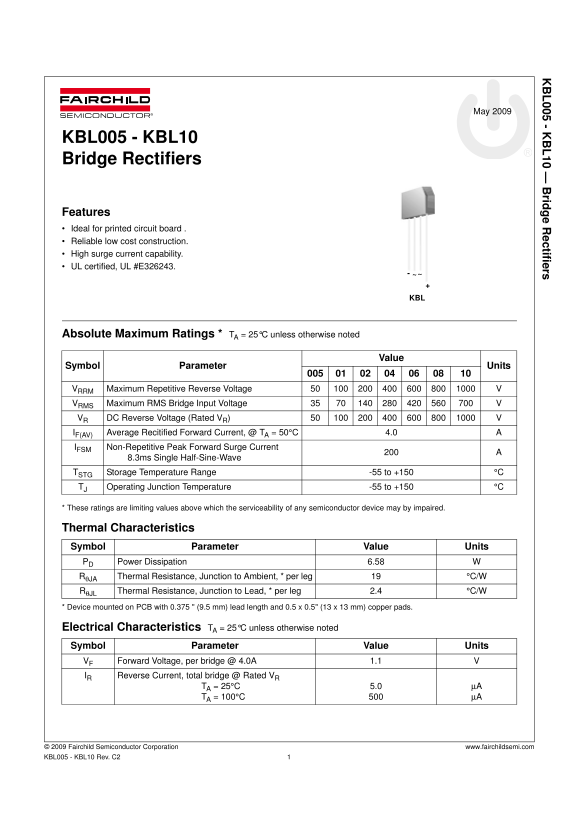

Fairchild KBL01 Data Handbook

- K rid tifie rs

May 2009

KBL005 - KBL10 Bridge Rectifiers

Features Ideal for printed circuit board . Reliable low cost construction. High surge current capability. UL certified, UL #E326243.

Absolute Maximum Ratings * TA = 25°C unless otherwise noted

Value

Symbol Parameter Units

VRRM Maximum Repetitive Reverse Voltage VRMS Maximum RMS Bridge Input Voltage VR DC Reverse Voltage (Rated VR) IF(AV) Average Recitified Forward Current, @ TA = 50°C 4.0 IFSM Non-Repetitive Peak Forward Surge Current

8.3ms Single Half-Sine-Wave

TSTG Storage Temperature Range -55 to +150 °C TJ Operating Junction Temperature -55 to +150 °C

* These ratings are limiting values above which the serviceability of any semiconductor device may by impaired.

Thermal Characteristics Symbol Parameter Value Units PD Power Dissipation 6.58 RθJA Thermal Resistance, Junction to Ambient, * per leg °C/W RθJL Thermal Resistance, Junction to Lead, * per leg 2.4 °C/W * Device mounted on PCB with 0.375 " (9.5 mm) lead length and 0.5 x 0.5" (13 x 13 mm) copper pads.

Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Value Units VF Forward Voltage, per bridge @ 4.0A 1.1 IR Reverse Current, total bridge @ Rated VR

TA = 25°C 5.0 µA TA = 100°C µA

© 2009 Fairchild Semiconductor Corporation www.fairchildsemi.com KBL005 - KBL10 Rev. C2
