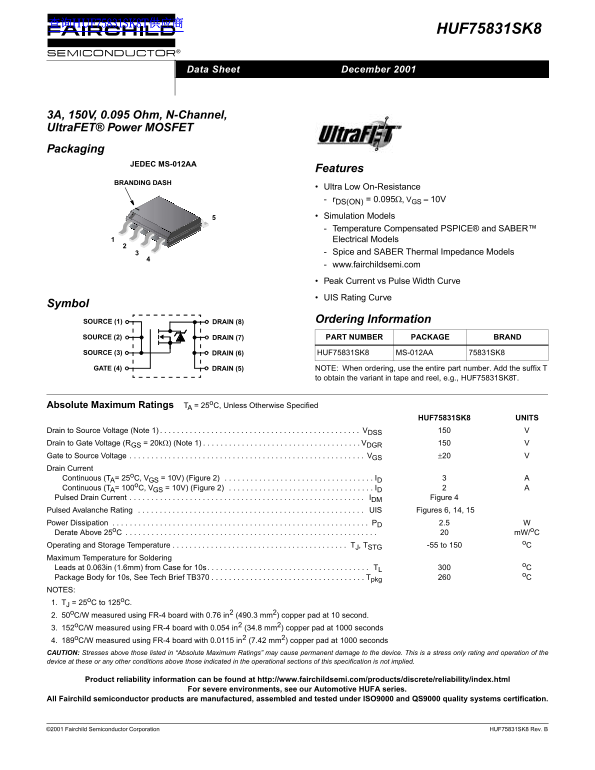

HUF75831SK8
Data Sheet December 2001
3A, 150V, 0.095 Ohm, N-Channel, Ultra FET® Power MOSFET Packaging
JEDEC MS-012AA
Features
BRANDING DASH
Ultra Low On-Resistance r DS(ON) = 0.095Ω, VGS = 10V Simulation Models Temperature Compensated PSPICE® and SABER™ Electrical Models Spice and SABER Thermal Impedance Models www.fairchildsemi.com Peak Current vs Pulse Width Curve UIS Rating Curve
Symbol
DRAIN (8)SOURCE (1) Ordering Information
SOURCE (2) DRAIN (7) PART NUMBER PACKAGE BRAND
SOURCE (3) DRAIN (6) HUF75831SK8 MS-012AA 75831SK8
GATE (4) DRAIN (5) NOTE: When ordering, use the entire part number. Add the suffix T
to obtain the variant in tape and reel, e.g., HUF75831SK8T.
Absolute Maximum Ratings TA = 25o C, Unless Otherwise Specified
HUF75831SK8 UNITS
Drain to Source Voltage (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VDSS
Drain to Gate Voltage (RGS = 20kΩ) (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VDGR
Gate to Source Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VGS ±20 Drain Current
Continuous (TA= 25o C, VGS = 10V) (Figure 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ID
Continuous (TA= 100o C, VGS = 10V) (Figure 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ID Pulsed Drain Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IDM Figure 4 Pulsed Avalanche Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UIS Figures 6, 14, 15 Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PD 2.5 Derate Above 25o C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . m W/o C
Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TJ, TSTG -55 to 150
Maximum Temperature for Soldering
Leads at 0.063in (1.6mm) from Case for 10s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TL
Package Body for 10s, See Tech Brief TB370 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tpkg NOTES: 1. TJ = 25o C to 125o C. 2. 50o C/W measured using FR-4 board with 0.76 in2 (490.3 mm2) copper pad at 10 second. 3. 152o C/W measured using FR-4 board with 0.054 in2 (34.8 mm2) copper pad at 1000 seconds 4. 189o C/W measured using FR-4 board with 0.0115 in2 (7.42 mm2) copper pad at 1000 seconds CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
Product reliability information can be found at http://www.fairchildsemi.com/products/discrete/reliability/index.html
For severe environments, see our Automotive HUFA series.
All Fairchild semiconductor products are manufactured, assembled and tested under ISO9000 and QS9000 quality systems certification.
©2001 Fairchild Semiconductor Corporation HUF75831SK8 Rev. B
