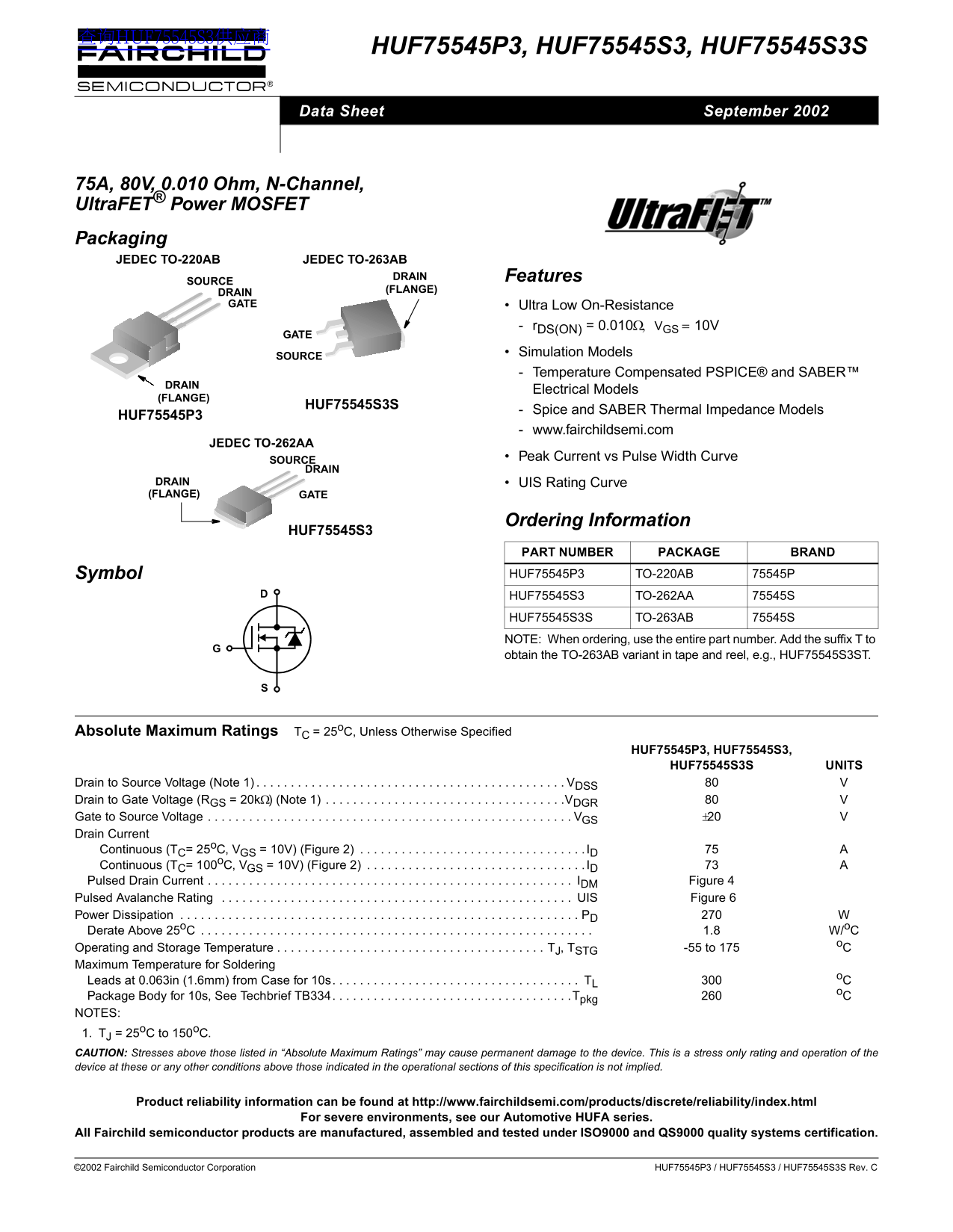

Page 1 Text Content

查询HUF75545S3供应商

HUF75545P3, HUF75545S3, HUF75545S3S

Data Sheet September 2002

75A, 80V, 0.010 Ohm, N-Channel, Ultra FET® Power MOSFET Packaging JEDEC TO-220AB JEDEC TO-263AB

DRAIN Features

SOURCE

(FLANGE)

DRAIN GATE Ultra Low On-Resistance

r DS(ON) = 0.010Ω, VGS = 10V

Simulation Models

SOURCE

Temperature Compensated PSPICE® and SABER™

DRAIN

Electrical Models

(FLANGE)

HUF75545S3S

Spice and SABER Thermal Impedance Models

HUF75545P3

www.fairchildsemi.com

JEDEC TO-262AA

SOURCE Peak Current vs Pulse Width Curve

DRAIN

DRAIN UIS Rating Curve (FLANGE) GATE

Ordering Information

HUF75545S3

PART NUMBER PACKAGE BRAND Symbol HUF75545P3 TO-220AB 75545P HUF75545S3 TO-262AA 75545S HUF75545S3S TO-263AB 75545S NOTE: When ordering, use the entire part number. Add the suffix T to obtain the TO-263AB variant in tape and reel, e.g., HUF75545S3ST.

Absolute Maximum Ratings TC = 25o C, Unless Otherwise Specified

HUF75545P3, HUF75545S3, HUF75545S3S UNITS

Drain to Source Voltage (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VDSS Drain to Gate Voltage (RGS = 20kΩ) (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VDGR Gate to Source Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VGS ±20 Drain Current Continuous (TC= 25o C, VGS = 10V) (Figure 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ID Continuous (TC= 100o C, VGS = 10V) (Figure 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ID Pulsed Drain Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IDM Figure 4 Pulsed Avalanche Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UIS Figure 6 Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PD Derate Above 25o C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8 W/o C

Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TJ, TSTG -55 to 175 Maximum Temperature for Soldering

Leads at 0.063in (1.6mm) from Case for 10s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TL

Package Body for 10s, See Techbrief TB334. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Tpkg NOTES: 1. TJ = 25o C to 150o C. CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

Product reliability information can be found at http://www.fairchildsemi.com/products/discrete/reliability/index.html

For severe environments, see our Automotive HUFA series.

All Fairchild semiconductor products are manufactured, assembled and tested under ISO9000 and QS9000 quality systems certification.

©2002 Fairchild Semiconductor Corporation HUF75545P3 / HUF75545S3 / HUF75545S3S Rev. C

Page Summary Contents For Fairchild HUF75545P3, HUF75545S3, HUF75545S3S Data Handbook

Page 1 查询HUF75545S3供应商 HUF75545P3, HUF75545S3, HUF75545S3S Data Sheet September 2002 75A, 80V, 0.010 Ohm, N-Channel, Ultra FET® Power MOSFET Packaging JEDEC TO-220AB JEDEC TO-263AB DRAIN Features SOURCE (FLA...
Page 2 HUF75545P3, HUF75545S3, HUF75545S3S Electrical Specifications TC = 25o C, Unless Otherwise Specified PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS OFF STATE SPECIFICATIONS Drain to Source Breakdo...
Page 3 HUF75545P3, HUF75545S3, HUF75545S3S , P θJ , N IZ IS IP IO LT IP IE Typical Performance Curves IM VGS = 10V TC, CASE TEMPERATURE (o C) TC, CASE TEMPERATURE (o C) FIGURE 1. NORMALIZED POWER DISSIPATION...
Page 4 HUF75545P3, HUF75545S3, HUF75545S3S IZ IN , D IN , D IN Typical Performance Curves (Continued) IS TA If R = 0 t AV = (L)(IAS)/(1.3*RATED BVDSS - VDD) If R ≠ 0 t AV = (L/R)ln[(IAS*R)/(1.3*RATED BVDSS -...
Page 5 HUF75545P3, HUF75545S3, HUF75545S3S IZ IN Typical Performance Curves (Continued) 1.2 ID = 250µA CISS = CGS + CGD COSS ≅ CDS + CGD , G LT CRSS = CGD VGS = 0V, f = 1MHz TJ, JUNCTION TEMPERATURE (o C) VD...
Page 6 HUF75545P3, HUF75545S3, HUF75545S3S Test Circuits and Waveforms BVDSS VARY t P TO OBTAIN IAS REQUIRED PEAK IAS RG 0V IAS 0.01Ω FIGURE 14. UNCLAMPED ENERGY TEST CIRCUIT FIGURE 15. UNCLAMPED ENERGY WAVE...
Page 7 HUF75545P3, HUF75545S3, HUF75545S3S PSPICE Electrical Model .SUBCKT HUF75545 2 1 3 ; rev 21 May 1999 CA 12 8 5.4e-9 CB 15 14 5.3e-9 CIN 6 8 3.4e-9 DBODY 7 5 DBODYMOD LDRAIN DBREAK 5 11 DBREAKMOD DPLCA...
Page 8 HUF75545P3, HUF75545S3, HUF75545S3S SABER Electrical Model REV 21 may 1999 template huf75545 n2,n1,n3 electrical n2,n1,n3 var i iscl d..model dbodymod = (is = 3.6e-12, cjo = 4.6e-9, tt = 3.3e-8, m = 0...
Page 9 HUF75545P3, HUF75545S3, HUF75545S3S SPICE Thermal Model th JUNCTION REV 21 May 1999 HUF75545T RTHERM1 CTHERM1 CTHERM1 th 6 6.4e-3 CTHERM2 6 5 3.0e-2 CTHERM3 5 4 1.4e-2 CTHERM4 4 3 1.6e-2 CTHERM5 3 2 5...
Page 10 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FACT...
