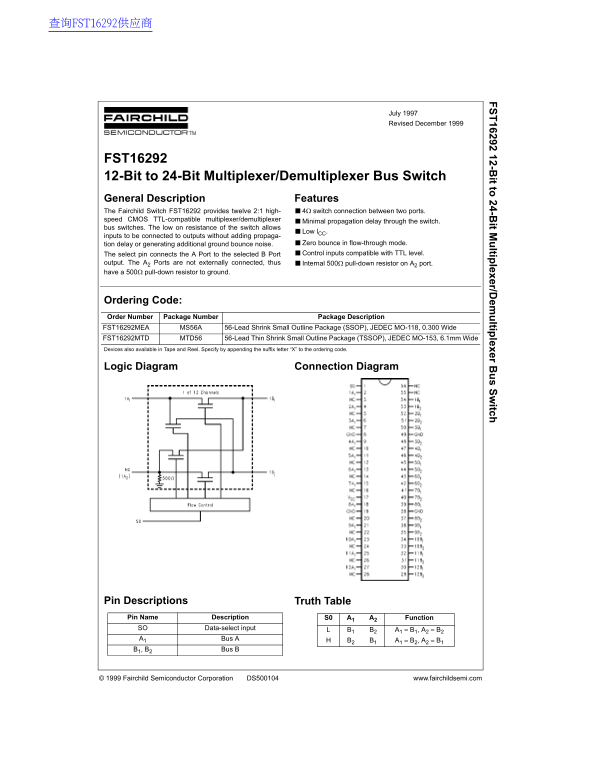

16292 12-B it to 24-B it M ltip lexer/D em ltip lexer B s S itch

July 1997 Revised December 1999

FST16292 12-Bit to 24-Bit Multiplexer/Demultiplexer Bus Switch General Description Features The Fairchild Switch FST16292 provides twelve 2:1 high- ■4Ω switch connection between two ports. speed CMOS TTL-compatible multiplexer/demultiplexer

■Minimal propagation delay through the switch.

bus switches. The low on resistance of the switch allows

■Low l CC.

inputs to be connected to outputs without adding propaga-

tion delay or generating additional ground bounce noise. ■Zero bounce in flow-through mode. The select pin connects the A Port to the selected B Port ■Control inputs compatible with TTL level.

output. The A2 Ports are not externally connected, thus Internal 500Ω pull-down resistor on A2 port. have a 500Ω pull-down resistor to ground.

Ordering Code: Order Number Package Number Package Description FST16292MEA MS56A 56-Lead Shrink Small Outline Package (SSOP), JEDEC MO-118, 0.300 Wide FST16292MTD MTD56 56-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

Logic Diagram Connection Diagram

Pin Descriptions Truth Table Pin Name Description S0 A1 A2 Function

SO Data-select input B1 B2 A1 = B1, A2 = B2 A1 Bus A B2 B1 A1 = B2, A2 = B1 B1, B2 Bus B
