Fairchild FSL116LR Data Handbook

Summary

The FSL116LR is a high-efficiency, integrated Pulse Width Modulator (PWM) designed for robust flyback switching converter solutions and modern SMPS applications. Featuring internal protections, soft-start capability, and low standby power consumption, it is ideal for designing compact, cost-effective power adapters used in home appliances, VCRs, and media players. This technical resource provides comprehensive design guidelines, application examples, and detailed usage information to help electrical engineers reliably implement high-performance AC/DC converters quickly and efficiently.

📄 Preview PAGE OF 13

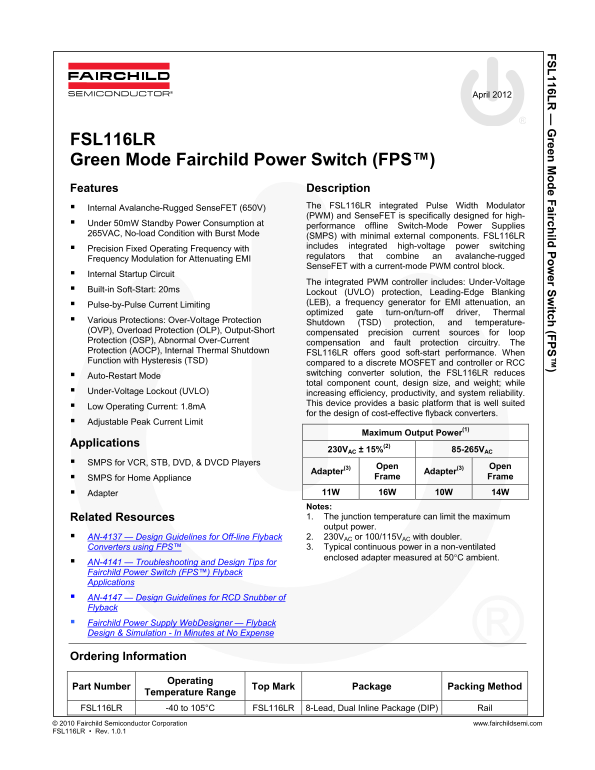

Page 1 Text Content

116L reen e F airch ild er S itch (F

April 2012

FSL116LR Green Mode Fairchild Power Switch (FPS™) Features Description

 Internal Avalanche-Rugged Sense FET (650V) The FSL116LR integrated Pulse Width Modulator (PWM) and Sense FET is specifically designed for high-

 Under 50m W Standby Power Consumption at

performance offline Switch-Mode Power Supplies

265VAC, No-load Condition with Burst Mode

(SMPS) with minimal external components. FSL116LR  Precision Fixed Operating Frequency with includes integrated high-voltage power switching regulators that combine an avalanche-rugged

Frequency Modulation for Attenuating EMI

Sense FET with a current-mode PWM control block.

 Internal Startup Circuit

The integrated PWM controller includes: Under-Voltage

 Built-in Soft-Start: 20ms

Lockout (UVLO) protection, Leading-Edge Blanking  Pulse-by-Pulse Current Limiting (LEB), a frequency generator for EMI attenuation, an optimized gate turn-on/turn-off driver, Thermal

 Various Protections: Over-Voltage Protection

Shutdown (TSD) protection, and temperature-

(OVP), Overload Protection (OLP), Output-Short

compensated precision current sources for loop

Protection (OSP), Abnormal Over-Current

compensation and fault protection circuitry. The

Protection (AOCP), Internal Thermal Shutdown

FSL116LR offers good soft-start performance. When

Function with Hysteresis (TSD)

compared to a discrete MOSFET and controller or RCC switching converter solution, the FSL116LR reduces

 Auto-Restart Mode

total component count, design size, and weight; while

 Under-Voltage Lockout (UVLO) increasing efficiency, productivity, and system reliability.

This device provides a basic platform that is well suited

 Low Operating Current: 1.8m A

for the design of cost-effective flyback converters.

 Adjustable Peak Current Limit

Maximum Output Power(1)

Applications

230VAC ± 15%(2) 85-265VAC

 SMPS for VCR, STB, DVD, & DVCD Players

Open Open

Adapter(3) Adapter(3)

 SMPS for Home Appliance Frame Frame

 Adapter 11W 16W 10W 14W Notes: Related Resources 1. The junction temperature can limit the maximum output power.  AN-4137 — Design Guidelines for Off-line Flyback 2. 230VAC or 100/115VAC with doubler. Converters using FPS™ 3. Typical continuous power in a non-ventilated enclosed adapter measured at 50°C ambient.

 AN-4141 — Troubleshooting and Design Tips for Fairchild Power Switch (FPS™) Flyback Applications  AN-4147 — Design Guidelines for RCD Snubber of Flyback  Fairchild Power Supply Web Designer — Flyback Design & Simulation - In Minutes at No Expense

Ordering Information

Operating

Part Number Top Mark Package Packing Method

Temperature Range

FSL116LR -40 to 105°C FSL116LR 8-Lead, Dual Inline Package (DIP) Rail © 2010 Fairchild Semiconductor Corporation www.fairchildsemi.com FSL116LR • Rev. 1.0.1

Page Summary Contents For Fairchild FSL116LR Data Handbook

Page 1 116L reen e F airch ild er S itch (F April 2012 FSL116LR Green Mode Fairchild Power Switch (FPS™) Features Description  Internal Avalanche-Rugged Sense FET (650V) The FSL116LR integrated Pulse Width ...
Page 2 116L reen e F airch ild er S itch (F Typical Application Diagram Figure 1. Typical Application Internal Block Diagram VSTR ra in VB L/V VCC Good Inte rna VCC VCC andom Frequency OSC ID IFB Gene ra tor...
Page 3 116L reen e F airch ild er S itch (F Pin Configuration Figure 3. Pin Configuration Pin Definitions Pin # Name Description 1 GND Ground. Sense FET source terminal on the primary side and internal contr...
Page 4 116L reen e F airch ild er S itch (F Absolute Maximum Ratings Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended op...
Page 5 116L reen e F airch ild er S itch (F Electrical Characteristics TA = 25°C unless otherwise specified. Symbol Parameter Conditions Min. Typ. Max. Units Sense FET Section BVDSS Drain-Source Breakdown Vo...
Page 6 116L reen e F airch ild er S itch (F Electrical Characteristics (Continued) TA = 25°C unless otherwise specified. Symbol Parameter Conditions Min. Typ. Max. Units Total Device Section Operating Supply...
Page 7 116L reen e F airch ild er S itch (F Typical Performance Characteristics These characteristic graphs are normalized at TA=25. Operating Frequency (f OSC) Maximum Duty Cycle (DMAX) Figure 4. Operating ...
Page 8 116L reen e F airch ild er S itch (F Typical Performance Characteristics (Continued) These characteristic graphs are normalized at TA=25. Startup Charging Current (ICH) Peak Current Limit (ILIM) Figur...
Page 9 116L reen e F airch ild er S itch (F Functional Description Startup Feedback Control At startup, an internal high-voltage current source FSL116LR employs current-mode control, as shown in supplies the...
Page 10 116L reen e F airch ild er S itch (F Abnormal Over-Current Protection (AOCP) When the secondary rectifier diodes or the transformer pin are shorted, a steep current with extremely high di/dt can flow ...
Page 11 116L reen e F airch ild er S itch (F Output-Short Protection (OSP) continues, but the current limit is fixed internally to minimize flux density in the transformer. The fixed If the output is shorted,...
Page 12 Physical Dimensions 5.08 MAX 0.33 MIN NOTES: UNLESS OTHERWISE SPECIFIED A) THIS PACKAGE CONFORMS TO JEDEC MS-001 VARIATION BA B) ALL DIMENSIONS ARE IN MILLIMETERS. C) DIMENSIONS ARE EXCLUSIVE OF BURRS...
Page 13 116L reen e F airch ild er S itch (F © 2010 Fairchild Semiconductor Corporation www.fairchildsemi.com FSL116LR • Rev. 1.0.1 13

Manual Details

Brand Fairchild
Pages 13
File Size 929.01 KB
Published June 02, 2026
61 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What protection mechanisms does the FSL116LR include?

It features Over-Voltage Protection (OVP), Overload Protection (OLP), Output-Short Protection (OSP), Thermal Shutdown (TSD), and Abnormal Over-Current Protection (AOCP).

How is the peak current limit adjusted during design?

The limit is determined by connecting a resistor externally to Pin 4, forming a parallel combination with an internal 6kΩ resistor.

What dictates the maximum output power of this device?

The junction temperature can ultimately determine the limitation on the maximum output power.

Does the FSL116LR automatically enter standby mode to reduce consumption?

Yes, the FPS enters burst mode when the feedback voltage drops below a certain threshold to minimize power dissipation.
