Fairchild FSGM300N Data Handbook

Summary

This integrated PWM controller/SenseFET solution provides a robust, cost-effective platform for designing offline Switch-Mode Power Supplies (SMPS). It features advanced protection functions (like OVP, OLP, and AOCP) and low EMI operation, drastically reducing component count compared to discrete designs. The manual provides comprehensive technical resources, including pin definitions, application circuits, operating ratings, and design guidelines, making it ideal for electronics engineers developing reliable power supplies for consumer devices like monitors and standalone systems.

📄 Preview PAGE OF 16

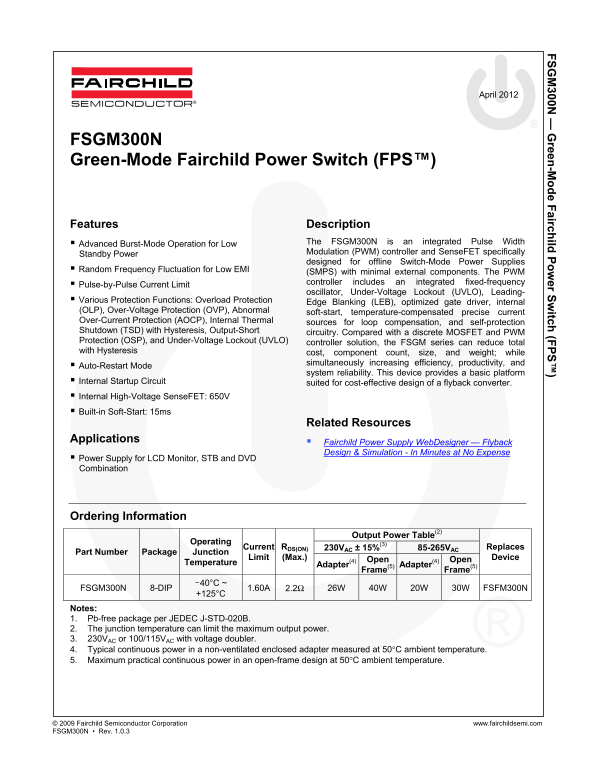

Page 1 Text Content

300N reen -M e F airch ild er S itch (F

April 2012

FSGM300N Green-Mode Fairchild Power Switch (FPS™)

Features Description  Advanced Burst-Mode Operation for Low The FSGM300N is an integrated Pulse Width Modulation (PWM) controller and Sense FET specifically

Standby Power

designed for offline Switch-Mode Power Supplies

 Random Frequency Fluctuation for Low EMI

(SMPS) with minimal external components. The PWM  Pulse-by-Pulse Current Limit controller includes an integrated fixed-frequency oscillator, Under-Voltage Lockout (UVLO), Leading-

 Various Protection Functions: Overload Protection Edge Blanking (LEB), optimized gate driver, internal (OLP), Over-Voltage Protection (OVP), Abnormal soft-start, temperature-compensated precise current Over-Current Protection (AOCP), Internal Thermal sources for loop compensation, and self-protection Shutdown (TSD) with Hysteresis, Output-Short circuitry. Compared with a discrete MOSFET and PWM Protection (OSP), and Under-Voltage Lockout (UVLO) controller solution, the FSGM series can reduce total with Hysteresis cost, component count, size, and weight; while

simultaneously increasing efficiency, productivity, and

 Auto-Restart Mode

system reliability. This device provides a basic platform

 Internal Startup Circuit suited for cost-effective design of a flyback converter.  Internal High-Voltage Sense FET: 650V  Built-in Soft-Start: 15ms

Related Resources

Applications  Fairchild Power Supply Web Designer — Flyback

Design & Simulation - In Minutes at No Expense

 Power Supply for LCD Monitor, STB and DVD Combination

Ordering Information

Output Power Table(2)

Operating

Current RDS(ON) 230VAC ± 15%(3) 85-265VAC Replaces

Part Number Package Junction

Limit (Max.) Device

Open Open

Temperature

Adapter(4) Adapter(4)

Frame(5) Frame(5)

FSGM300N 8-DIP 1.60A 2.2Ω 26W 40W 20W 30W FSFM300N

Notes: 1. Pb-free package per JEDEC J-STD-020B. 2. The junction temperature can limit the maximum output power. 3. 230VAC or 100/115VAC with voltage doubler. 4. Typical continuous power in a non-ventilated enclosed adapter measured at 50°C ambient temperature. 5. Maximum practical continuous power in an open-frame design at 50°C ambient temperature.

© 2009 Fairchild Semiconductor Corporation www.fairchildsemi.com FSGM300N • Rev. 1.0.3

Page Summary Contents For Fairchild FSGM300N Data Handbook

Page 1 300N reen -M e F airch ild er S itch (F April 2012 FSGM300N Green-Mode Fairchild Power Switch (FPS™) Features Description  Advanced Burst-Mode Operation for Low The FSGM300N is an integrated Pulse Wi...
Page 2 300N reen -M e F airch ild er S itch (F Application Circuit Figure 1. Typical Application Circuit Internal Block Diagram VSTR VCC Drain Vburst 0.5V / 0.7V 7.7V / 12VVCC Random VCC Vref IDELAY IFB Soft...
Page 3 300N reen -M e F airch ild er S itch (F Pin Configuration Figure 3. Pin Configuration (Top View) Pin Definitions Pin # Name Description 1 GND Ground. This pin is the control ground and the Sense FET s...
Page 4 300N reen -M e F airch ild er S itch (F Absolute Maximum Ratings Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended...
Page 5 300N reen -M e F airch ild er S itch (F Electrical Characteristics TJ=25°C unless otherwise specified. Symbol Parameter Conditions Min. Typ. Max. Unit Sense FET Section BVDSS Drain-Source Breakdown Vo...
Page 6 300N reen -M e F airch ild er S itch (F Electrical Characteristics (Continued) TJ=25°C unless otherwise specified. Symbol Parameter Conditions Min. Typ. Max. Unit Total Device Section Operating Supply...
Page 7 300N reen -M e F airch ild er S itch (F or al iz ed or al iz ed Typical Performance Characteristics or al iz ed Characteristic graphs are normalized at TA=25°C. Temperature [°C] Temperature [°C] Figur...
Page 8 300N reen -M e F airch ild er S itch (F Typical Performance Characteristics or al iz ed or al iz ed or al iz ed Characteristic graphs are normalized at TA=25°C. Temperature [°C] Temperature [°C] Figur...
Page 9 300N reen -M e F airch ild er S itch (F Functional Description 1. Startup: At startup, an internal high-voltage current 3. Feedback Control: This device employs current- source supplies the internal b...
Page 10 300N reen -M e F airch ild er S itch (F 4. Protection Circuits: The FSGM300N has several increasing until it reaches 6.0V, when the switching self-protective functions, such as Overload Protection ope...
Page 11 300N reen -M e F airch ild er S itch (F 4.3. Output-Short Protection (OSP): If the output is 5. Soft Burst-Mode Operation: To minimize power shorted, steep current with extremely high di/dt can dissip...
Page 12 300N reen -M e F airch ild er S itch (F Typical Application Circuit Application Input Voltage Rated Output Rated Power LCD Monitor 5.0V(2A) 85 ~ 265VAC 26.8W Power Supply 14.0V(1.2A) Key Design Notes:...
Page 13 300N reen -M e F airch ild er S itch (F 2. Transformer Figure 26. Schematic of Transformer 3. Winding Specification Barrier Tape Pin (S → F) Wire Winding Method TOP BOT Ts Np /2 3 → 2 0.25φ×1 21 Solen...
Page 14 300N reen -M e F airch ild er S itch (F 6. Bill of Materials Part # Value Note Part # Value Note Fuse Capacitor F101 250V 2A C101 220n F/275V Box (Pilkor) NTC C102 150n F/275V Box (Pilkor) NTC101 5D-9...
Page 15 300N reen -M e F airch ild er S itch (F Physical Dimensions Figure 27. 8 Lead Dual Inline Package (DIP) Package drawings are provided as a service to customers considering Fairchild components. Drawin...
Page 16 300N reen -M e F airch ild er S itch (F © 2009 Fairchild Semiconductor Corporation www.fairchildsemi.com FSGM300N • Rev. 1.0.3 16

Manual Details

Brand Fairchild
Pages 16
File Size 1.88 MB
Published June 03, 2026
43 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What features are optimized for efficiency and reliability?

The FSGM series reduces cost, component count, size, and weight while increasing system reliability through protections like OVP, AOCP, TSD, and Auto-Restart Mode.

What voltage level triggers the overload protection shutdown (FPS)?

Overload protection is triggered when the voltage at pin 3 (FB) reaches 6V, which shuts down the FPS.

What are two key improvements over discrete MOSFET solutions?

Compared to discrete MOSFET solutions, the FSGM series increases efficiency and productivity while maintaining system reliability.

How can this device be used in a flyback converter design?

It provides a basic platform for cost-effective design of a flyback converter due to its internal startup circuit feature.
