Fairchild FSD176MRT Data Handbook

Summary

The FSD176MRT is a highly efficient Green-Mode PWM controller and SenseFET designed for modern offline Switch-Mode Power Supplies (SMPS). This integrated power switch minimizes size, component count, and standby power while boosting reliability through advanced features like Soft Burst Mode operation, random frequency fluctuation, and comprehensive protection circuits. The detailed manual provides technical specifications, application circuits, pin definitions, and operational guidance necessary for electrical engineers designing compact, reliable smart electronics such as LCD monitors and set-top boxes.

📄 Preview PAGE OF 17

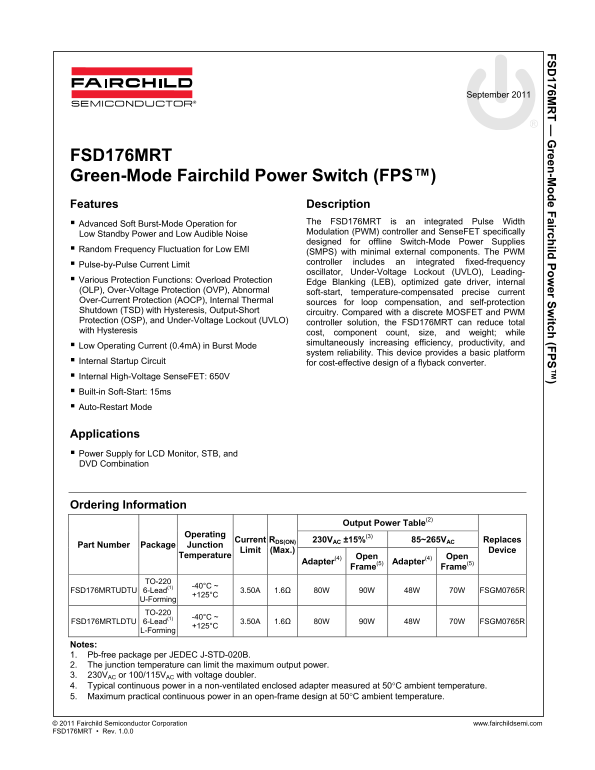

Page 1 Text Content

176M reen -M e F airch ild er S itch (F

September 2011

FSD176MRT Green-Mode Fairchild Power Switch (FPS™) Features Description

 Advanced Soft Burst-Mode Operation for The FSD176MRT is an integrated Pulse Width Modulation (PWM) controller and Sense FET specifically

Low Standby Power and Low Audible Noise

designed for offline Switch-Mode Power Supplies

 Random Frequency Fluctuation for Low EMI

(SMPS) with minimal external components. The PWM  Pulse-by-Pulse Current Limit controller includes an integrated fixed-frequency oscillator, Under-Voltage Lockout (UVLO), Leading-

 Various Protection Functions: Overload Protection Edge Blanking (LEB), optimized gate driver, internal (OLP), Over-Voltage Protection (OVP), Abnormal soft-start, temperature-compensated precise current Over-Current Protection (AOCP), Internal Thermal sources for loop compensation, and self-protection Shutdown (TSD) with Hysteresis, Output-Short circuitry. Compared with a discrete MOSFET and PWM Protection (OSP), and Under-Voltage Lockout (UVLO) controller solution, the FSD176MRT can reduce total with Hysteresis cost, component count, size, and weight; while

simultaneously increasing efficiency, productivity, and

 Low Operating Current (0.4m A) in Burst Mode

system reliability. This device provides a basic platform

 Internal Startup Circuit for cost-effective design of a flyback converter.  Internal High-Voltage Sense FET: 650V  Built-in Soft-Start: 15ms  Auto-Restart Mode

Applications  Power Supply for LCD Monitor, STB, and DVD Combination

Ordering Information

Output Power Table(2)

Operating

Current RDS(ON) 230VAC ±15%(3) 85~265VAC Replaces

Part Number Package Junction

Limit (Max.) Device

Temperature Open Open

Adapter(4) Adapter(4)

Frame(5) Frame(5)

TO-220

FSD176MRTUDTU 6-Lead(1) 3.50A 1.6Ω 80W 90W 48W 70W FSGM0765R

U-Forming TO-220

FSD176MRTLDTU 6-Lead(1) 3.50A 1.6Ω 80W 90W 48W 70W FSGM0765R

L-Forming

Notes: 1. Pb-free package per JEDEC J-STD-020B. 2. The junction temperature can limit the maximum output power. 3. 230VAC or 100/115VAC with voltage doubler. 4. Typical continuous power in a non-ventilated enclosed adapter measured at 50C ambient temperature. 5. Maximum practical continuous power in an open-frame design at 50C ambient temperature.

© 2011 Fairchild Semiconductor Corporation www.fairchildsemi.com FSD176MRT • Rev. 1.0.0

Page Summary Contents For Fairchild FSD176MRT Data Handbook

Page 1 176M reen -M e F airch ild er S itch (F September 2011 FSD176MRT Green-Mode Fairchild Power Switch (FPS™) Features Description  Advanced Soft Burst-Mode Operation for The FSD176MRT is an integrated P...
Page 2 176M reen -M e F airch ild er S itch (F Application Circuit AC IN VSTR Drain FB VCC Figure 1. Typical Application Circuit Internal Block Diagram VSTR VCC Drain Vburst 0.30V / 0.45V Soft Burst Vref 7.5...
Page 3 176M reen -M e F airch ild er S itch (F Pin Configuration Figure 3. Pin Configuration (Top View) Pin Definitions Pin # Name Description 1 Drain Sense FET Drain. High-voltage power Sense FET drain conn...
Page 4 176M reen -M e F airch ild er S itch (F Absolute Maximum Ratings Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended...
Page 5 176M reen -M e F airch ild er S itch (F Electrical Characteristics TJ = 25C unless otherwise specified. Symbol Parameter Conditions Min. Typ. Max. Unit Sense FET Section BVDSS Drain-Source Breakdown ...
Page 6 176M reen -M e F airch ild er S itch (F Electrical Characteristics (Continued) TJ = 25C unless otherwise specified. Symbol Parameter Conditions Min. Typ. Max. Unit Total Device Section Operating Supp...
Page 7 176M reen -M e F airch ild er S itch (F or al iz ed or al iz ed or al iz ed Typical Performance Characteristics Characteristic graphs are normalized at TA=25°C. Temperature [ °C] Temperature [ °C] Fig...
Page 8 176M reen -M e F airch ild er S itch (F Typical Performance Characteristics or al iz ed or al iz ed or al iz ed Characteristic graphs are normalized at TA=25°C. Temperature [ °C] Temperature [ °C] Fig...
Page 9 176M reen -M e F airch ild er S itch (F Functional Description 1. Startup: At startup, an internal high-voltage current 3. Feedback Control: This device employs current- source supplies the internal b...
Page 10 176M reen -M e F airch ild er S itch (F 4. Protection Circuits: The FSD176MRT has several increasing until it reaches 7.0V, when the switching self-protective functions, such as Overload Protection op...
Page 11 176M reen -M e F airch ild er S itch (F 4.3. Output-Short Protection (OSP): If the output is 5. Soft Burst-Mode Operation: To minimize power shorted, steep current with extremely high di/dt can dissip...
Page 12 176M reen -M e F airch ild er S itch (F Typical Application Circuit Application Input Voltage Rated Output Rated Power LCD Monitor 5.0V (3A) 85 ~ 265VAC 64W Power Supply 14.0V (3.5A) Key Design Notes:...
Page 13 176M reen -M e F airch ild er S itch (F Transformer Specification  Core: EER3019 (Ae=134 mm2)  Bobbin: EER3019 Figure 26. Transformer Specification Table 1. Winding specification Barrier Tape Pin(S ...
Page 14 176M reen -M e F airch ild er S itch (F Table 3. Bill of Materials Part # Value Note Part # Value Note Fuse Capacitor F101 250V 3.15A C101 220n F/275V Box (Pilkor) NTC C102 150n F/275V Box (Pilkor) NT...
Page 15 176M reen -M e F airch ild er S itch (F Physical Dimensions 1.05 0.75 5PLCS 0.55 6PLCS 4.70 6PLCS NOTES: A) NO PACKAGE STANDARD APPLIES. B) DIMENSIONS ARE EXCLUSIVE OF BURRS, MOLD FLASH, AND TIE BAR E...
Page 16 176M reen -M e F airch ild er S itch (F Physical Dimensions 1.20 0.70 5PLCS1.40 0.70 0.50 5PLCS NOTES: A) NO PACKAGE STANDARD APPLIES. B) DIMENSIONS ARE EXCLUSIVE OF BURRS, 4.40 MOLD FLASH, AND TIE BA...
Page 17 176M reen -M e F airch ild er S itch (F © 2011 Fairchild Semiconductor Corporation www.fairchildsemi.com FSD176MRT • Rev. 1.0.0 17

Manual Details

Brand Fairchild
Pages 17
File Size 618.37 KB
Published June 02, 2026
65 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What are the primary benefits of using FSD176MRT compared to discrete component solutions?

It reduces overall cost, component count, size, and weight while boosting efficiency and system reliability.

What critical protection functions does this controller integrate?

It includes OVP, OCP, UVLO, Overload Protection (OLP), and Active Over-Current Protection (AOCP).

What external components are necessary for stable operation of the Feedback (FB) pin?

For stable operation, a capacitor should be placed between the FB pin and GND.

What is the maximum allowable voltage rating for the Drain-to-Source (DS) path?

The absolute maximum voltage rated for the DS path is 650 V.
